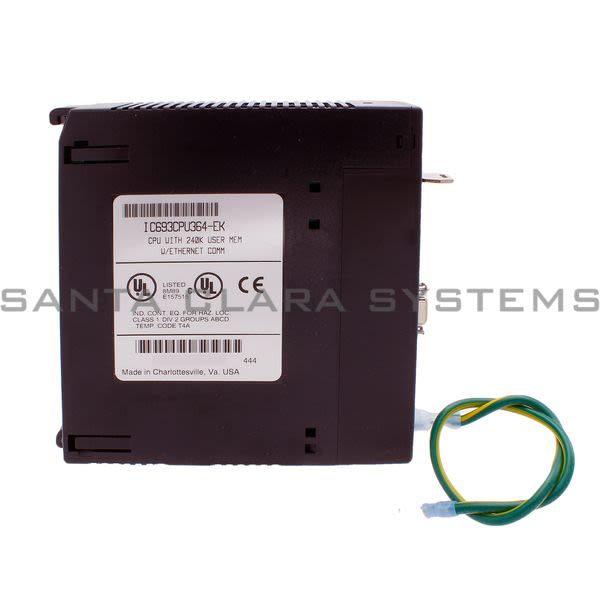

• General Electric IC693 CPU 364 Processor 364 Module | Series 90-30 CPU Product Image

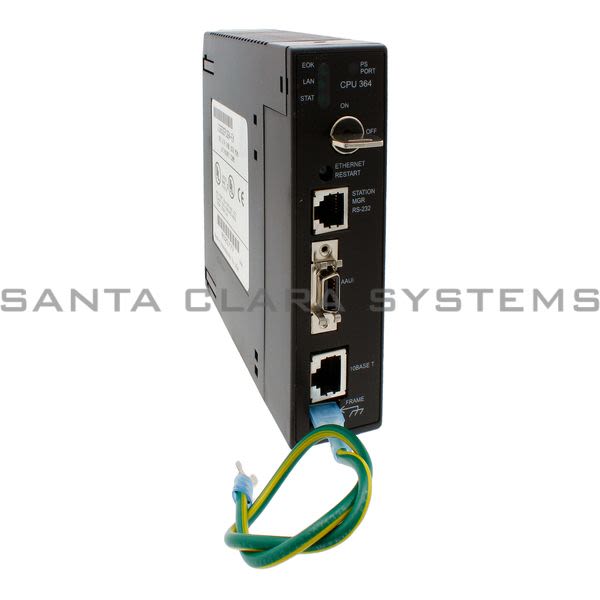

  • General Electric IC693 CPU 364 Processor 364 Module | Series 90-30 CPU Product Image

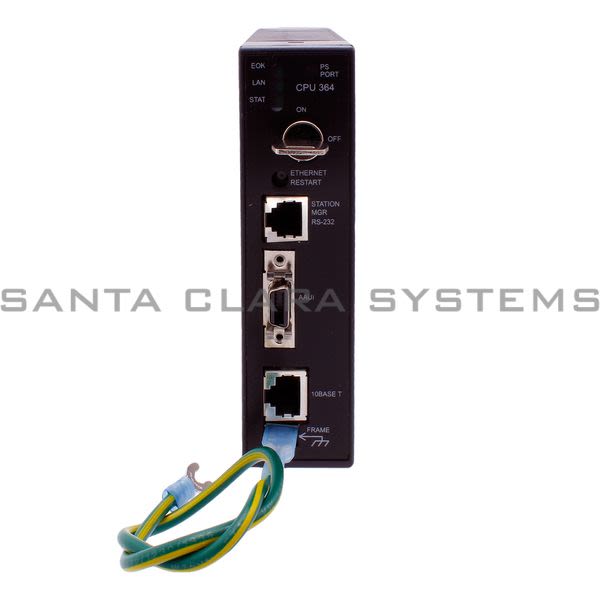

  • General Electric IC693 CPU 364 Processor 364 Module | Series 90-30 CPU Product Image

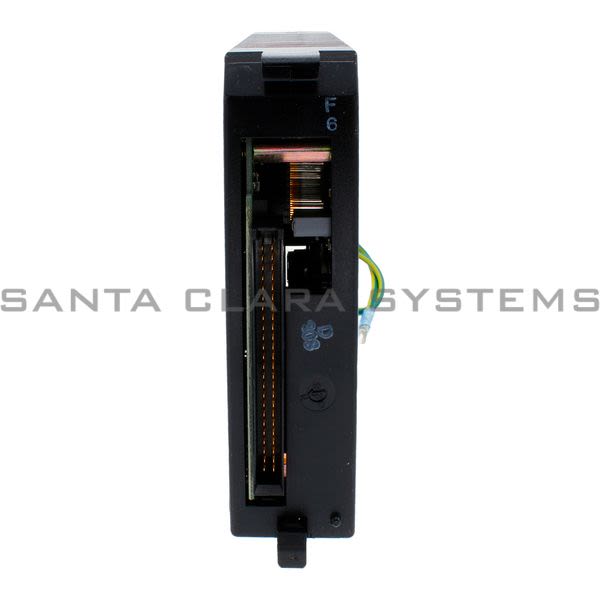

  • General Electric IC693 CPU 364 Processor 364 Module | Series 90-30 CPU Product Image
  • General Electric IC693 CPU 364 Barcode

IC693CPU364

Product Summary:

  • Operating temperature: 0 to 60 degrees C (32 to 140 degrees F) ambient
  • CPU Type: Single slot CPU module with embedded Ethernet Interface
  • Total Baseplates per System: 8 (CPU baseplate + 7 expansion and/or remote)
  • Load Required from Power Supply: 1.51 Amps from +5 VDC supply
  • Processor Speed: 25 MegaHertz
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Processor 364 Module | Series 90-30 CPU
  • Type of Device: CPU 364 Module, (240 Kbytes Configurable User Memory, 4K I/O, 8 Racks), Embedded Ethernet, 1 Built-In Serial Port, .22 msec/K
  • Operating temperature: 0 to 60 degrees C (32 to 140 degrees F) ambient
  • CPU Type: Single slot CPU module with embedded Ethernet Interface
  • Total Baseplates per System: 8 (CPU baseplate + 7 expansion and/or remote)
  • Load Required from Power Supply: 1.51 Amps from +5 VDC supply
  • Processor Speed: 25 MegaHertz
  • Processor Type: 80386EX
  • Ethernet fuse, replaceable: 2.69x2.69x6.1 mm, 125V, 1A, slow acting
  • Typical Scan Rate: 0.22 milliseconds per 1K of logic (boolean contacts)
  • User Memory (total): 240K Bytes. Note: Actual size of available user program memory depends on the amounts configured for %R, %AI, and %AQ configurable word memory types
  • Timers/Counters: 2,000
  • Shift Registers: Yes
  • Built-in Serial Ports: 1 (uses connector on PLC Power Supply). Supports SNP/SNPX slave. Requires CMM module for SNP/SNP-X master, RTU slave, or CCM; PCM module for RTU master support.
  • Override: Yes
  • Battery Backed Clock: Yes
  • Interrupt Support: Supports the periodic subroutine feature
  • Type of Memory Storage: RAM and Flash
  • PCM/CCM Compatibility: Yes
  • Floating Point Math Support: Yes, firmware-based
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693CPU364 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
