IC693MDL645

Product Summary:

  • Type of Device: 24 Volt DC Positive/Negative Logic Input, 16 Point
  • UPC: 004810000007
  • Response Time: 7 ms On/Off
  • Rated Voltage: 24 Volts DC
  • Input Voltage Range: 0 to +30 Volts DC
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Input Module | Series 90-30
  • Type of Device: 24 Volt DC Positive/Negative Logic Input, 16 Point

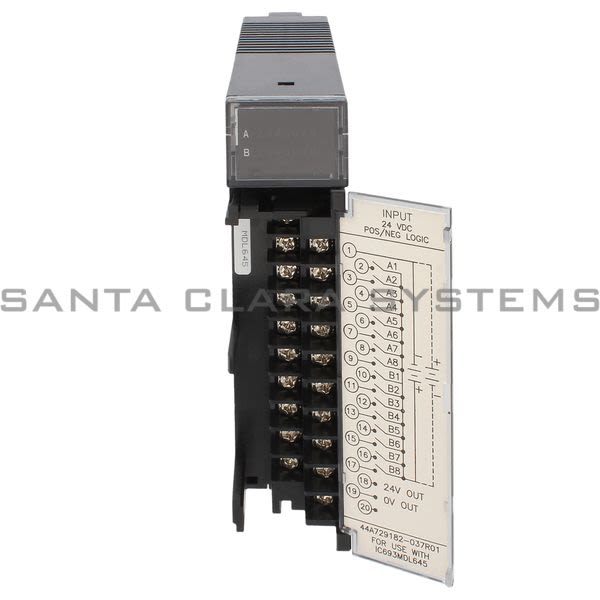

  • Product Description: GE Fanuc Discrete input module for 90 - 30 series PLC has either positive logic or negative logic characteristics. It offers 16 input points in one group with a common power input terminal. Module has LED indicators at the top to offer ON/OFF status of each point. Module has circuit wiring information on the surface towards the inside and circuit identification information on the outside surface. Module can be conveniently installed in any I/O slot in a 90-30 series PLC system. It has a voltage rating 0 - 30 VDC, current rating of 7 milli-Amps, power rating of 80 milli-Amps at 5 VDC and 125 milli-Amps at 24 VDC. Module has a maximum ON/OFF response time of 7 milli-seconds. It is compatible with input devices such as pushbuttons, limit switches and electronic proximity switches. Input/output module provides the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. It supports different voltage ranges, types, current capacity, isolation and response time to meet your application.
  • UPC: 004810000007
  • Response Time: 7 ms On/Off
  • Rated Voltage: 24 Volts DC
  • Input Voltage Range: 0 to +30 Volts DC
  • Inputs per Module: 16 (one group with a single common)
  • Isolation: 1500 volts between field side and logic side
  • Input Current: 7 mA (typical) at rated voltage
  • On-state Voltage: 11.5 to 30 volts DC
  • Off-state Voltage: 0 to +5 volts DC
  • On-state Current: 3.2 mA minimum
  • Off-state Current: 1.1 mA maximum
  • On response Time: 7 ms typical
  • Off response Time: 7 ms typical
  • Power Consumption: 5V: 80 mA (all inputs on) from 5 volt bus on backplane
  • Power Consumption: 24V: 125 mA from the Isolated 24 volt backplane bus or from user supplied power
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL645 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
