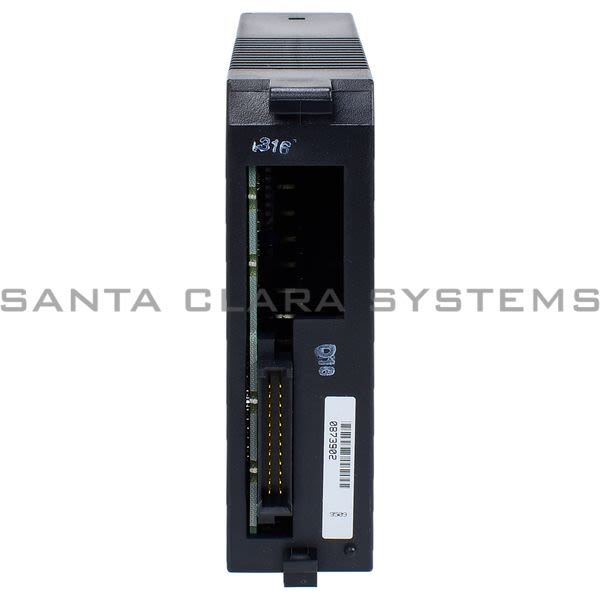

• General Electric IC693 MDL 646 Input Module | Series 90-30 Product Image

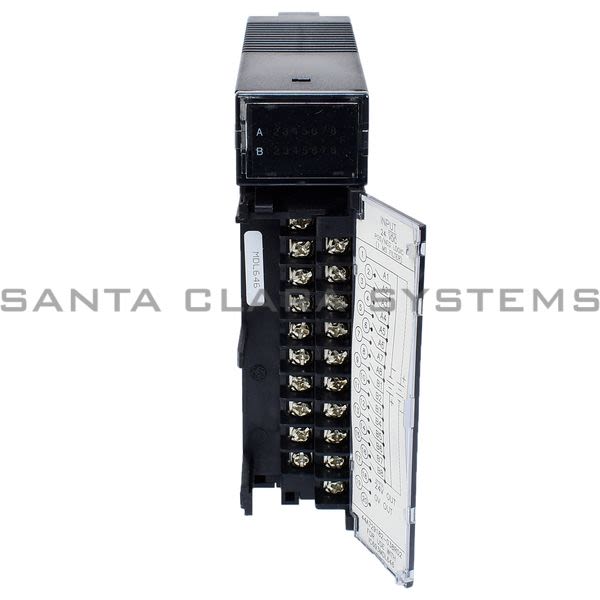

  • General Electric IC693 MDL 646 Input Module | Series 90-30 Product Image

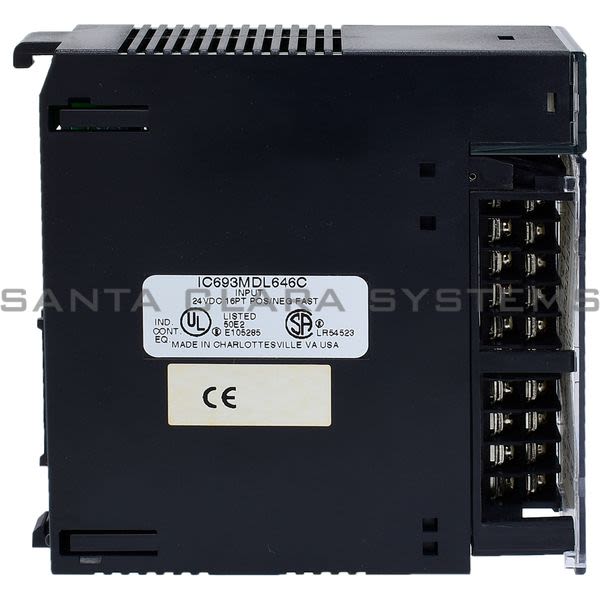

  • General Electric IC693 MDL 646 Input Module | Series 90-30 Product Image

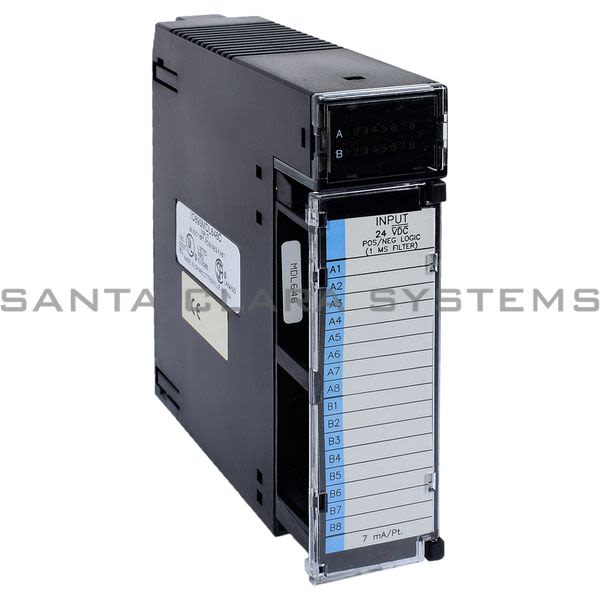

  • General Electric IC693 MDL 646 Input Module | Series 90-30 Product Image
  • General Electric IC693 MDL 646 Barcode

IC693MDL646

Product Summary:

  • Type of Device: 24 Volt DC Positive/Negative Logic Input, 16 Point
  • UPC: 004810000007
  • Type: Series 90-30, DC Voltage, Positive/Negetive Logic, FAST
  • Response Time: 1 ms On/Off
  • Connection: 20 Screw Terminal Block
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Input Module | Series 90-30
  • Type of Device: 24 Volt DC Positive/Negative Logic Input, 16 Point
  • UPC: 004810000007
  • Type: Series 90-30, DC Voltage, Positive/Negetive Logic, FAST
  • Response Time: 1 ms On/Off
  • Connection: 20 Screw Terminal Block
  • Internal Power Supply: 80 Milli-Amp at 5 Volt DC; 125 Milli-Amp at 24 Volt DC Isolated
  • Rated Voltage: 24 volts DC
  • Input Voltage Range: 0 to +30 volts DC
  • Inputs per Module: 16 (one group with a single common)
  • Isolation: 1500 volts between field side and logic side
  • Input Current: 7 mA (typical) at rated voltage
  • Power Consumption: 5V: 80 mA (all inputs on) from 5 volt bus on backplane
  • Power Consumption: 24V 1: 125 mA from the Isolated 24 volt backplane bus or from user supplied power
  • Feature: Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels.Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL646 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
