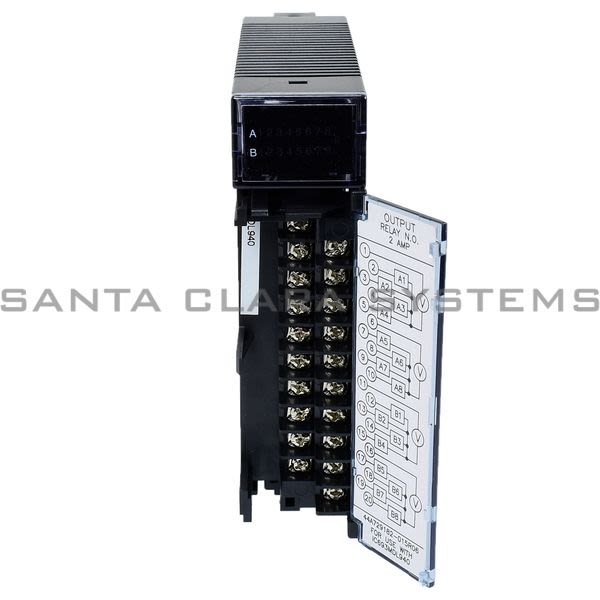

• General Electric IC693 MDL 940 Relay Output Product Image

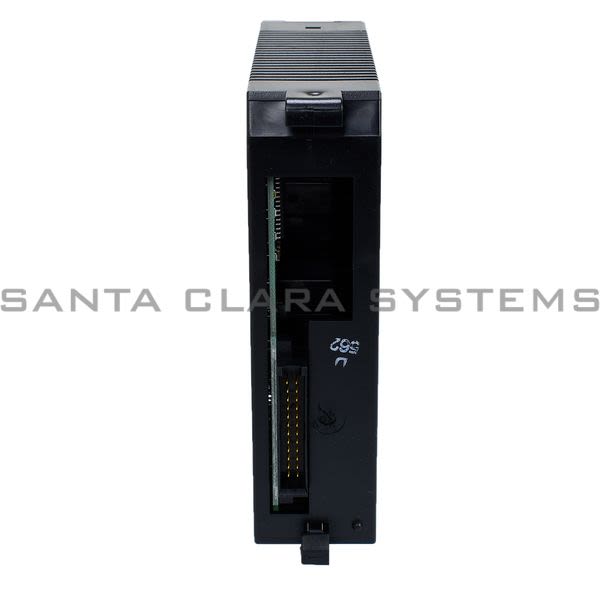

  • General Electric IC693 MDL 940 Relay Output Product Image

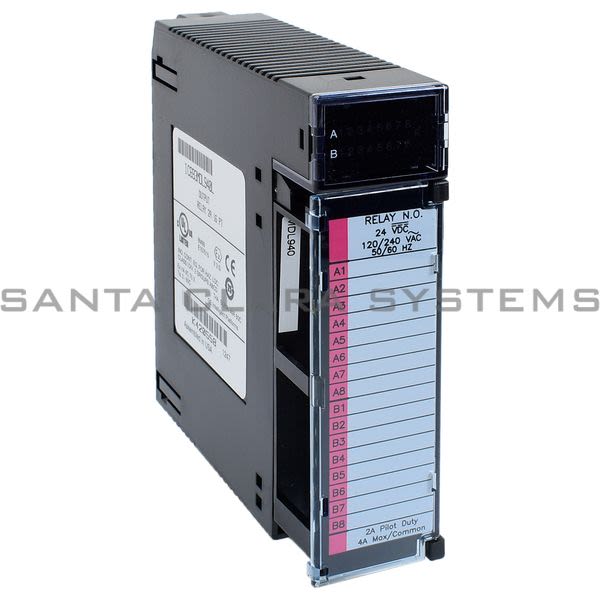

  • General Electric IC693 MDL 940 Relay Output Product Image
  • General Electric IC693 MDL 940 Relay Output Product Image
  • General Electric IC693 MDL 940 Barcode

IC693MDL940

Product Summary:

  • Type of Device: Output Module AC/DC RELAY 0-125VDC 120/240VAC 16P
  • Operating Voltage: 5 to 30 volts DC / 5 to 250 volts AC, 50/60 Hz
  • Maximum Load: 2 amps pilot duty maximum per output
  • Maximum Inrush: 5 amps
  • On Response Time: 15 ms maximum
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Relay Output
  • Type of Device: Output Module AC/DC RELAY 0-125VDC 120/240VAC 16P
  • Operating Voltage: 5 to 30 volts DC / 5 to 250 volts AC, 50/60 Hz
  • Maximum Load: 2 amps pilot duty maximum per output
  • Maximum Inrush: 5 amps
  • On Response Time: 15 ms maximum
  • Off Response Time: 15 ms maximum
  • Outputs per Module: 16 (four groups of four outputs each)
  • Isolation: 1500 volts between field side and logic side
  • Technical Specifications: 500 volts between groups
  • Int. Power Consumption: 7 mA (all outputs on) from 5 volt bus on backplane / 135 mA (all outputs on) from relay 24V bus on backplane
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL940 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
