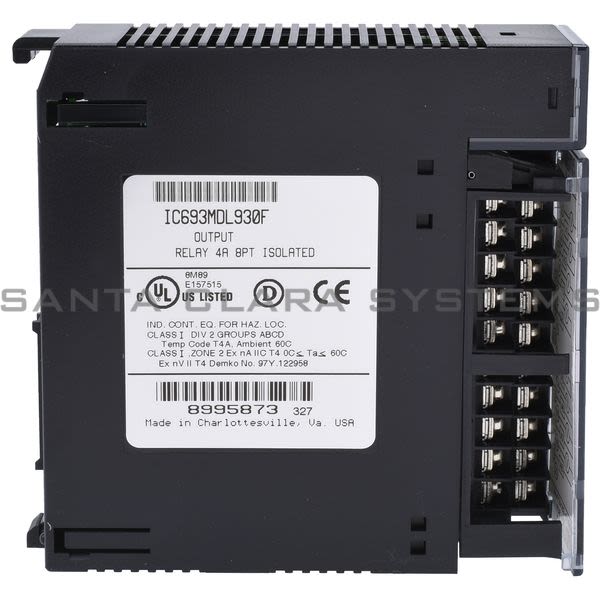

• General Electric IC693 MDL 930 Relay Output Isolated| Series 90-30 Product Image

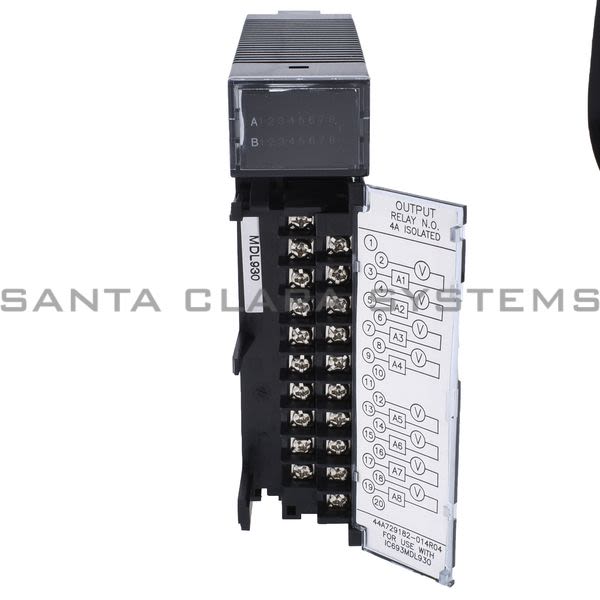

  • General Electric IC693 MDL 930 Relay Output Isolated| Series 90-30 Product Image

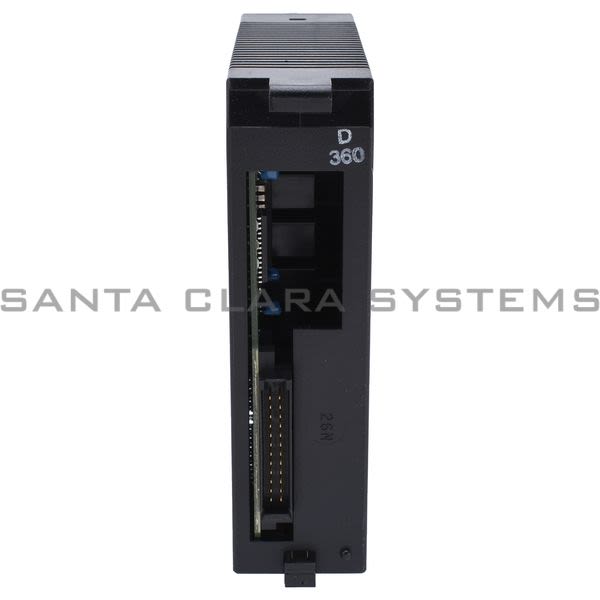

  • General Electric IC693 MDL 930 Relay Output Isolated| Series 90-30 Product Image

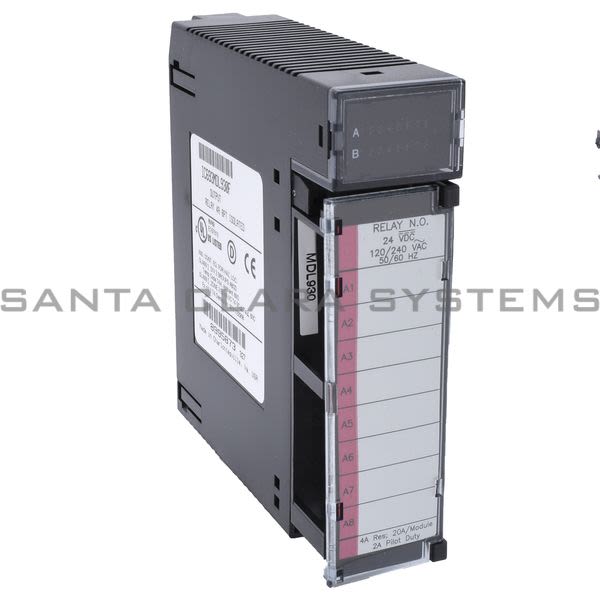

  • General Electric IC693 MDL 930 Relay Output Isolated| Series 90-30 Product Image
  • General Electric IC693 MDL 930 Barcode

IC693MDL930

Product Summary:

  • Type of Device: Isolated Relay Output, N.O., 4 Amp - 8 Point
  • Response Time: 15 ms On/Off
  • Operating Voltage: 5 to 30 volts DC; 5 to 250 volts AC, 50/60 Hz
  • Outputs per Module: 8 isolated outputs
  • Isolation: 1500 volts between field side and logic side; 500 volts between groups
Get a Quote

Current response time:

12 Minutes 47 Seconds
  • Description: Relay Output Isolated| Series 90-30
  • Type of Device: Isolated Relay Output, N.O., 4 Amp - 8 Point
  • Response Time: 15 ms On/Off
  • Operating Voltage: 5 to 30 volts DC; 5 to 250 volts AC, 50/60 Hz
  • Rated Voltage: 24 volts DC, 120/240 volts AC (nominal - see the following table for exceptions)
  • Outputs per Module: 8 isolated outputs
  • Isolation: 1500 volts between field side and logic side; 500 volts between groups
  • Int. Power Consumption: 6 mA (all outputs on) from 5 volt bus on backplane; 70 mA (all outputs on) from relay 24V bus on backplane
  • Load Current: 4 Amp Per Point
  • Connection: 20 Screw Terminal Block
  • Feature: Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL930 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
