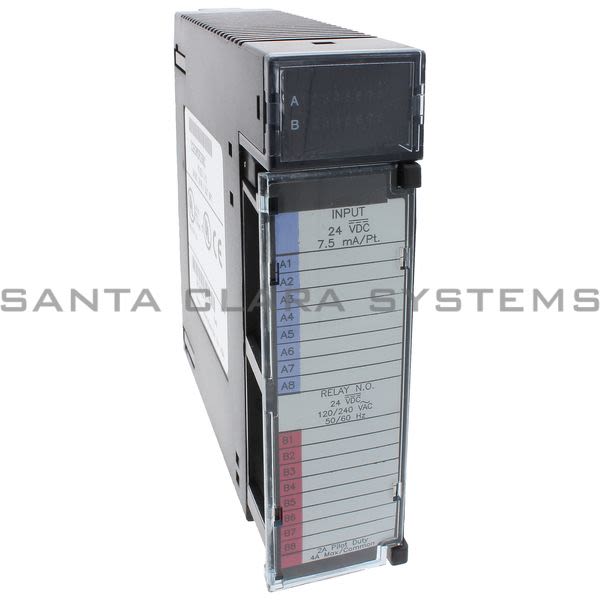

• General Electric IC693 MDR 390 I/O Module Product Image

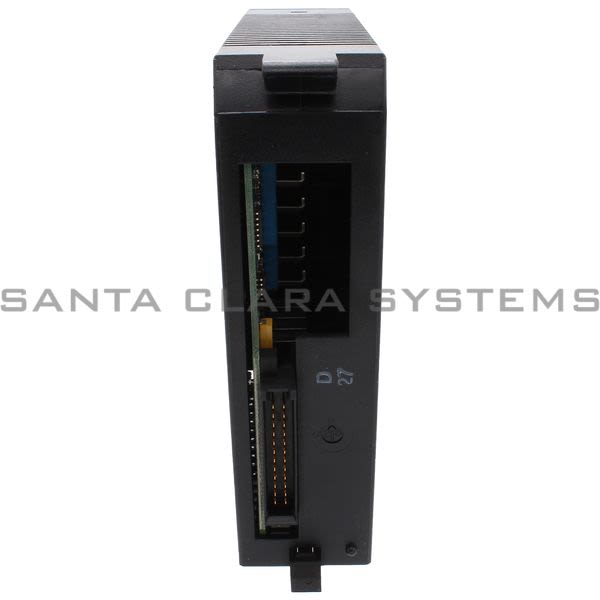

  • General Electric IC693 MDR 390 I/O Module Product Image

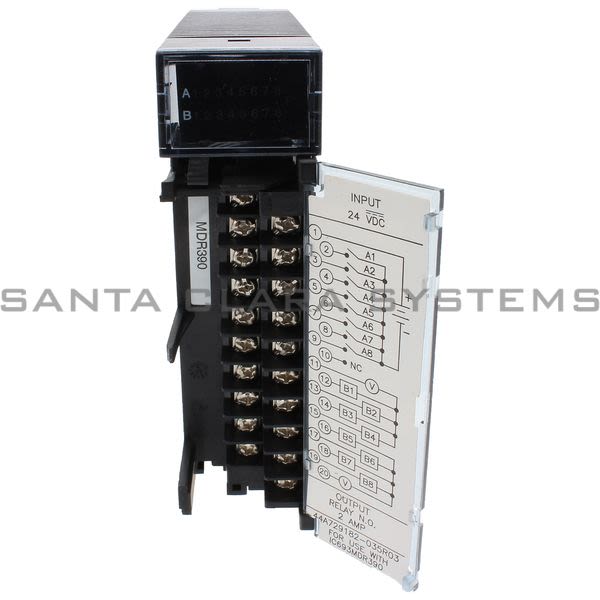

  • General Electric IC693 MDR 390 I/O Module Product Image

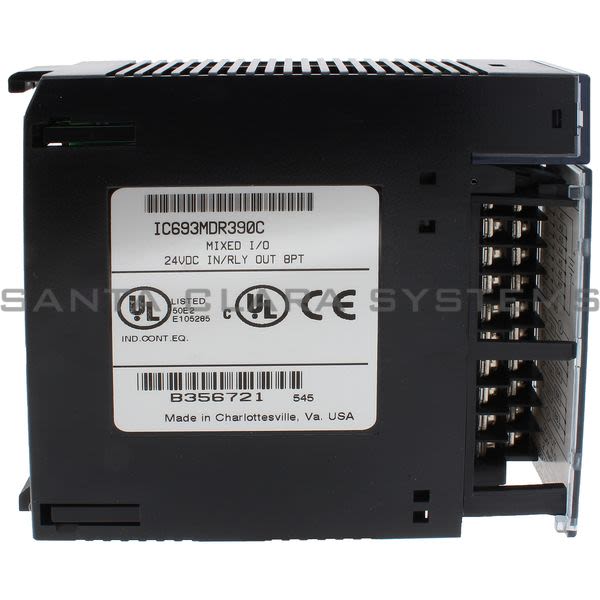

  • General Electric IC693 MDR 390 I/O Module Product Image
  • General Electric IC693 MDR 390 Barcode

IC693MDR390

Product Summary:

  • Type of Device: 24 Volt DC Input, Relay Output, 8 Inputs/8 Outputs
  • Color: Blue/Red
  • Response Time: 1 ms On/Off
  • Connection: 20 Screw Terminal Block
  • Internal Power Supply: 80 Milli-Amp at 5 Volt DC; 70 Milli-Amp at 24 Volt DC Relay
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: I/O Module
  • Type of Device: 24 Volt DC Input, Relay Output, 8 Inputs/8 Outputs
  • Product Description: GE Fanuc Discrete output module for 90 - 30 series PLC offers 8 input points with one common power input terminal and 8 normally open relay circuits. Input circuits have either positive/negative characteristics and offers sink/source current to/from the input devices. Each circuit has an output switching capacity of 2 Amps. It is compatible with a wide range of devices such as pushbuttons, limit switches and electronic proximity switches. Normally-open relay circuits are ideally designed to control output loads. Relay outputs control a wide range of load devices such as motor starters, solenoids and indicators. The 24-VDC bus on the backplane provides power for the internal relay circuits. It has LED indicators at the top to offer ON/OFF status of each point. Module has circuit wiring information on the surface towards the inside and circuit identification information on the outside surface. The top half of the insert is blue color to indicate low-voltage circuits and the bottom half is red colored to indicate high-voltage circuits. Module can be conveniently installed in any I/O slot of a 5 or 10-slot baseplate in a 90 - 30 series PLC system. It has a voltage rating of 30 - 32 VDC, current rating of 7.5 milli-Amps and a power rating of 80 milli-Amps at 5 VDC/70 milli-Amps at 24 VDC. Module has a maximum ON response time of 15 milli-seconds and maximum OFF response time of 15 milli-seconds. Input/output module provides the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. It supports different voltage ranges, types, current capacity, isolation and response time to meet your application.
  • Color: Blue/Red
  • Response Time: 1 ms On/Off
  • Connection: 20 Screw Terminal Block
  • Internal Power Supply: 80 Milli-Amp at 5 Volt DC; 70 Milli-Amp at 24 Volt DC Relay
  • Load Current: 2 Amp Per Point
  • Number of Points / Point per Common: 8
  • Output Range: 0 - 125 Volt DC, 5/24/125 Volt DC Nominal; 0 - 265 Volt AC, 120/240 Volt AC Nominal
  • Features: Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps. GE offers a variety of modules that supportdifferent voltage ranges and types, current capacity, isolation and response time tomeet your application needs.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDR390 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
