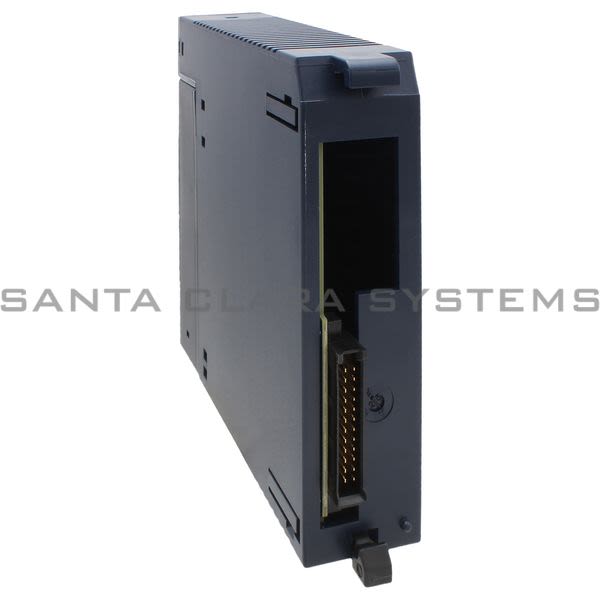

• General Electric IC694 ALG 223 Analog Input Module Product Image

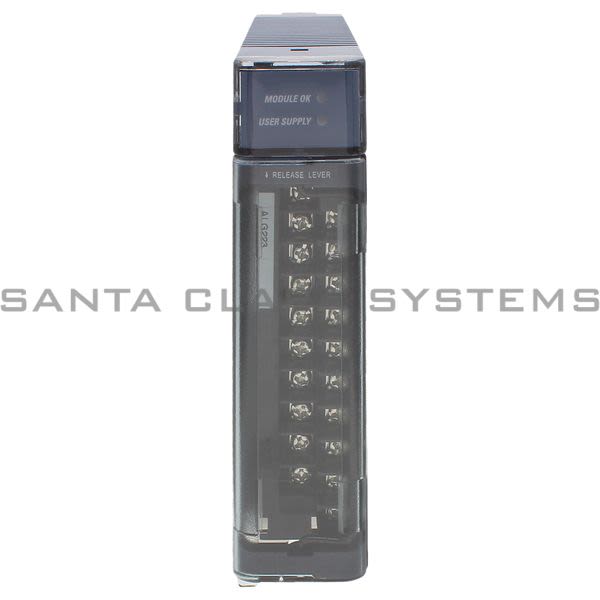

  • General Electric IC694 ALG 223 Analog Input Module Product Image

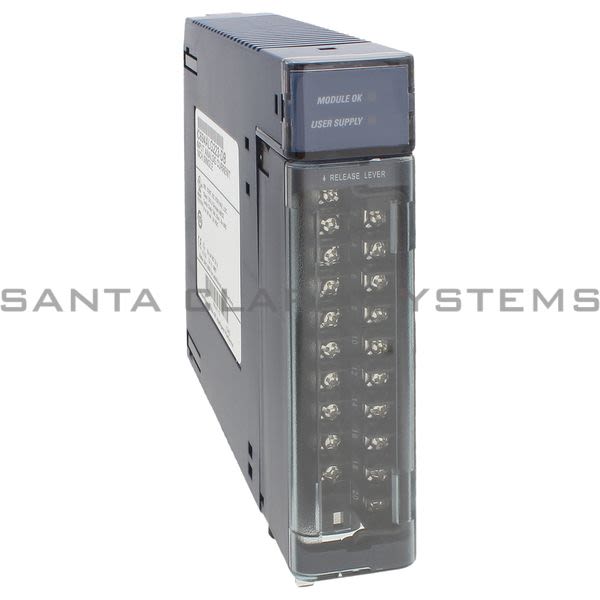

  • General Electric IC694 ALG 223 Analog Input Module Product Image

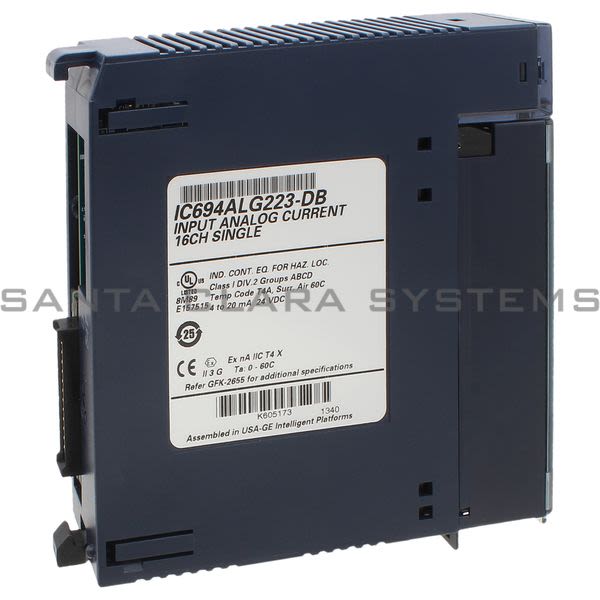

  • General Electric IC694 ALG 223 Analog Input Module Product Image
  • General Electric IC694 ALG 223 Barcode

IC694ALG223

Product Summary:

  • Type of Device: PACSystems RX3i, High Density Analog Input Module; 16 Channel
  • Accuracy: 0.25% at 25 deg C
  • Amperage Rating: 0 - 20 Milli-Amp, 4 - 20 Milli-Amp
  • Connection: 20 Screw Terminal Block
  • Input Filter Response: 200 Hz
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Analog Input Module
  • Type of Device: PACSystems RX3i, High Density Analog Input Module; 16 Channel
  • Product Description: GE Fanuc PACSystems RX3i High density analog input module has 16 channels and offers an easy-to-use analog modules for control processes such as flow, temperature and pressure. It has current rating of 0 - 20 mili Amps/4 - 20 milli-Amps. It features reverse polarity and under voltage on external power supply for protection. It provides a precise accuracy of 0.25% at 25 deg C. It has internal power rating of 120 milli-Amps at 5 VDC/65 milli-Amps at 24 VDC for enhanced performance.
  • Resolution: 12 bit; 0 - 20 Milli-Amp, 5 Micro-Amp/bit; 4 - 20 Milli-Amp, 4 Micro-Amp/bit; 4 - 20 Milli-Amp Enhanced, 5 Micro-Amp/bit
  • Accuracy: 0.25% at 25 deg C
  • Amperage Rating: 0 - 20 Milli-Amp, 4 - 20 Milli-Amp
  • Connection: 20 Screw Terminal Block
  • Input Filter Response: 200 Hz
  • Input Impedance: 250 Ohm
  • Internal Power Supply: 120 Milli-Amp at 5 Volt DC; 65 Milli-Amp at User Supplied 24 Volt DC
  • Number Of Channels: 16 Channel
  • Number of Slots Module Occupies on Backplane: 1 Slots
  • Update Rate: 13 ms
  • Product Detail: No backplane restrictions
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC694ALG223 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
