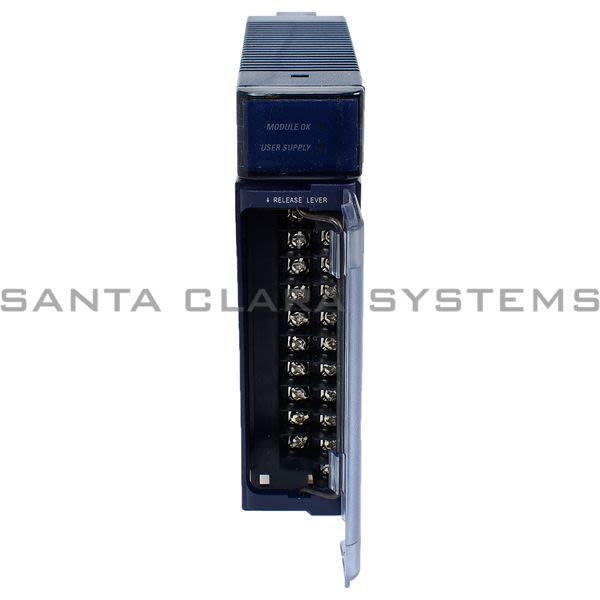

• General Electric IC694 ALG 392 High Density Analog Output Product Image

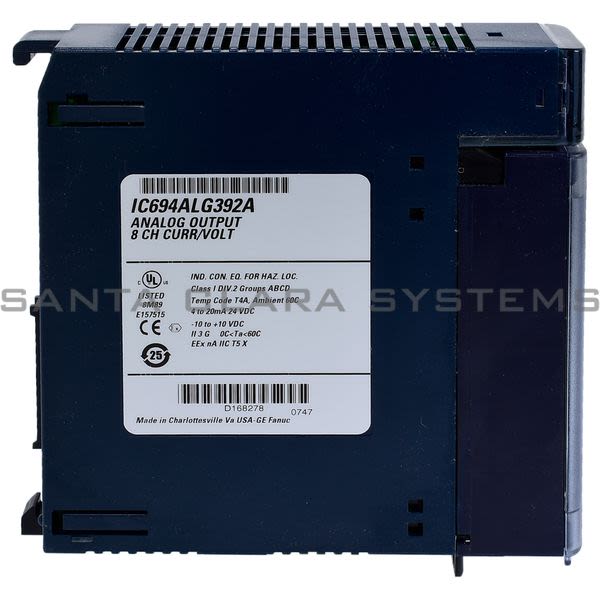

  • General Electric IC694 ALG 392 High Density Analog Output Product Image

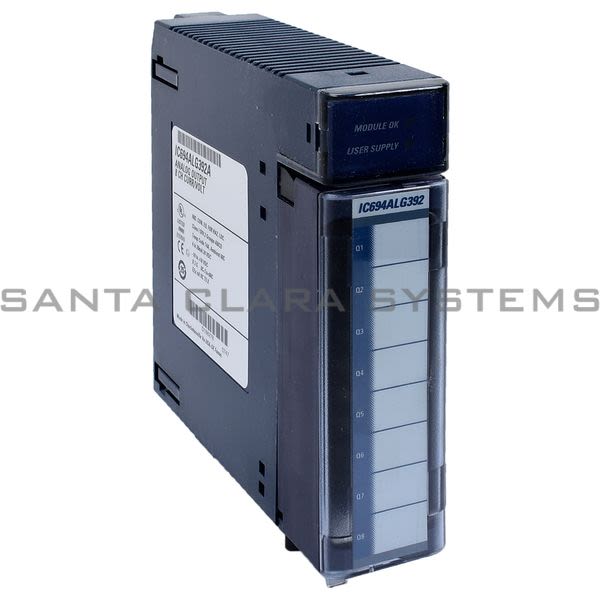

  • General Electric IC694 ALG 392 High Density Analog Output Product Image

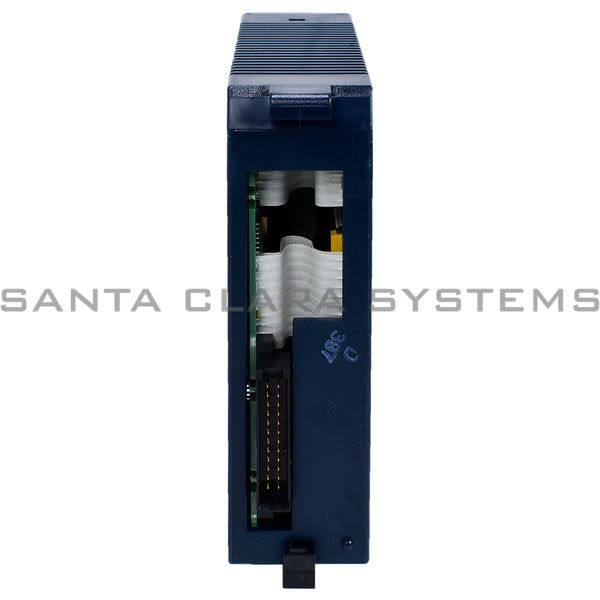

  • General Electric IC694 ALG 392 High Density Analog Output Product Image
  • General Electric IC694 ALG 392 Barcode

IC694ALG392

Product Summary:

  • Type of Device: Output Analog 8 Channel
  • Range: 0 - 10 Volt, -10 To +10 Volt
  • Amperage Rating: 0 - 20 Milli-Amp, 4 - 20 Milli-Amp
  • Connection: 20 Screw Terminal Block
  • Maximum Output Load: 2 kilo-ohm
Let Us Find It

Current response time:

19 Minutes 56 Seconds
  • Description: High Density Analog Output
  • Type of Device: Output Analog 8 Channel
  • Product Description: GE Fanuc Analog output modules offer easy-to-use analog modules for control processes such as flow, temperature and pressure. It features reverse polarity and under voltage on external power supply for protection.
  • Range: 0 - 10 Volt, -10 To +10 Volt
  • Accuracy: +/-0.1% at 25 deg C 0 - 20 Milli-Amp, 4 - 20 Milli-Amp; +/-0.25 at 25 deg C 0 - 10 Volt, -10F + 10 V
  • Amperage Rating: 0 - 20 Milli-Amp, 4 - 20 Milli-Amp
  • Connection: 20 Screw Terminal Block
  • Internal Power Supply: 110 Milli-Amp at 5 Volt DC; 315 Milli-Amp at User Supplied 24 Volt DC
  • Maximum Output Load: 2 kilo-ohm
  • Number of Slots Module Occupies on Backplane: 1 Slot
  • Output Load Capacitance: 2000 PF Inductance 1H
  • Product Details: No backplane restrictions, the module must receive its 24 VDC power from an external source, which must be connected directly to the module?s terminal block.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC694ALG392 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
