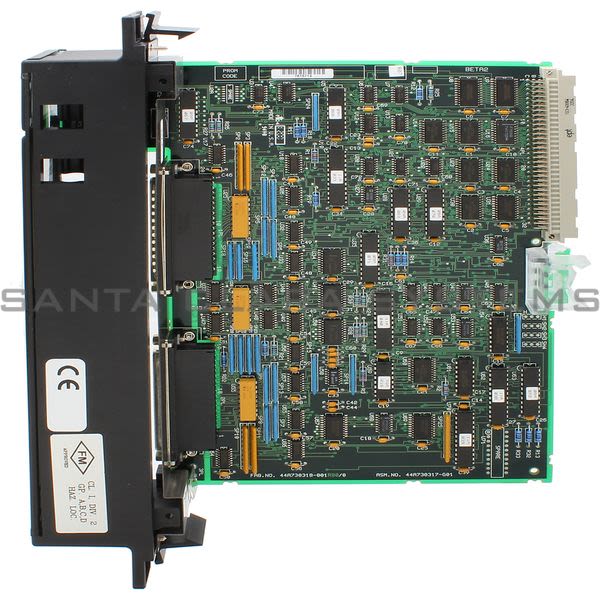

• General Electric IC697 BEM 713 Bus Transmitter Product Image

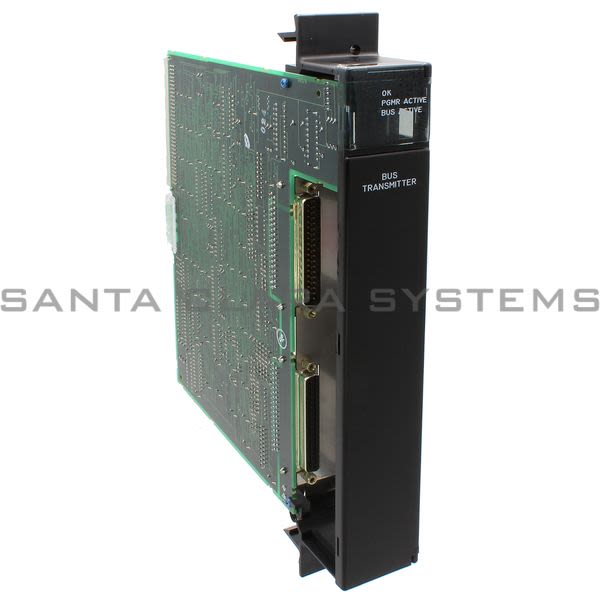

  • General Electric IC697 BEM 713 Bus Transmitter Product Image

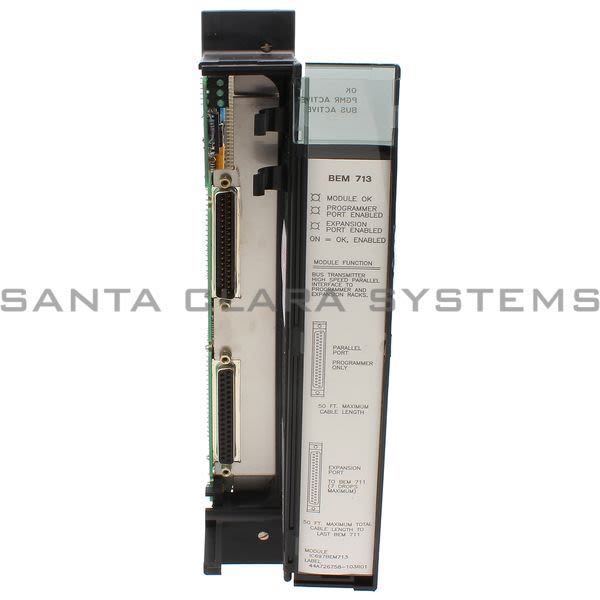

  • General Electric IC697 BEM 713 Bus Transmitter Product Image

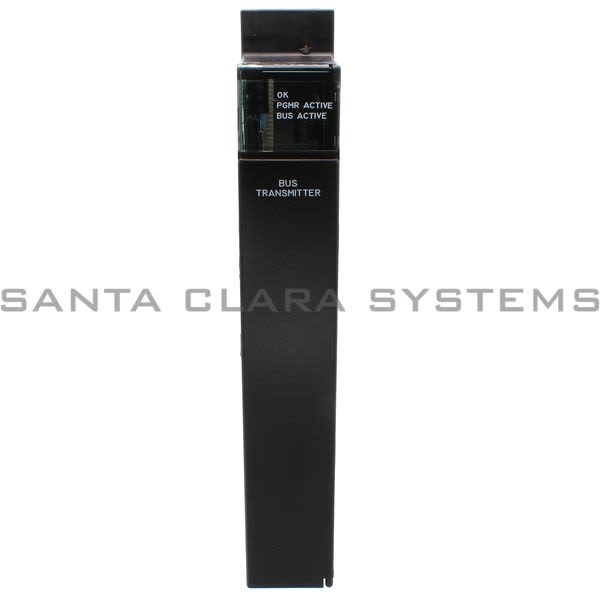

  • General Electric IC697 BEM 713 Bus Transmitter Product Image
  • General Electric IC697 BEM 713 Barcode

IC697BEM713

Product Summary:

  • Type of Device: Bus Controller Module 90/70 Transmitter
  • Weight: 1.5 lbs
  • Current Required from 5V Bus: 1.4 Amp
  • Effective Data Rate: 500 Kbytes/sec
  • Time to store 16 Kbyte program: 20 - 30 seconds
Get a Quote

Current response time:

16 Minutes 45 Seconds
  • Description: Bus Transmitter
  • Type of Device: Bus Controller Module 90/70 Transmitter
  • Product Description: The Bus Transmitter Module (BTM) permits expansion from the main CPU rack when more modules are required in a system than can be contained in the CPU rack. The BTM allows expansion from the CPU rack to a maximum of 7 additional IC697 PLC racks. It also provides a high performance parallel interface to the programming device. The module occupies a single slot and has two connectors. The top one is for attachment to the programming device. The bottom one is for a daisychained arrangement through Bus Receiver Modules to expansion racks. Three green LEDs provide status indication of each port and module status. The BTM must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
  • Weight: 1.5 lbs
  • Features: High Performance Parallel Programmer Interface / Bus Expansion Interface / Supports up to 7 Expansion racks / Three LED indicators provide module, programmer port, and expansion port status / No DIP switches to set, easy software configuration into PLC system
  • Current Required from 5V Bus: 1.4 Amp
  • Effective Data Rate: 500 Kbytes/sec
  • Time to store 16 Kbyte program: 20 - 30 seconds
  • Maximum cable length: 50 feet (15 meters)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC697BEM713 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
