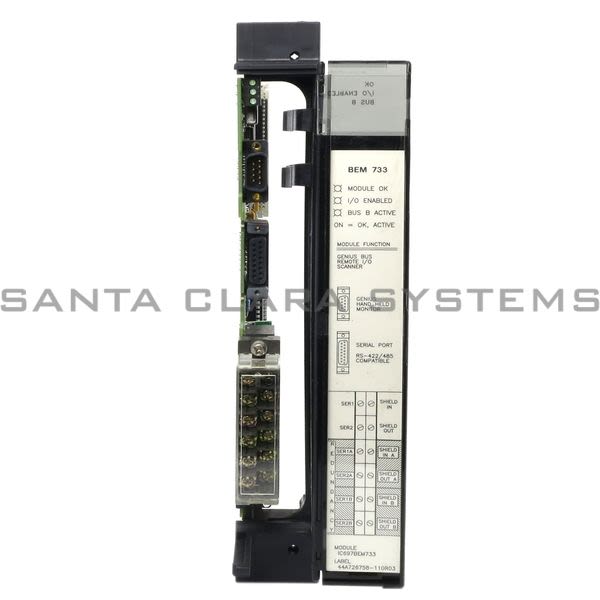

• General Electric IC697 BEM 733 Series 90-70 Genius I/O Scanner Product Image

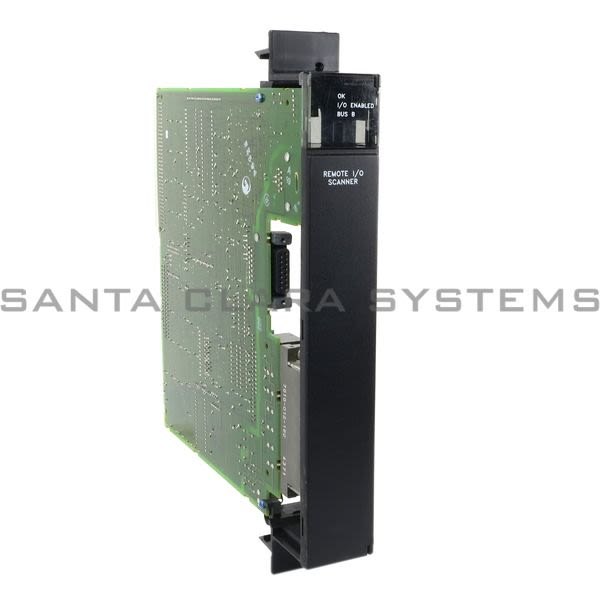

  • General Electric IC697 BEM 733 Series 90-70 Genius I/O Scanner Product Image

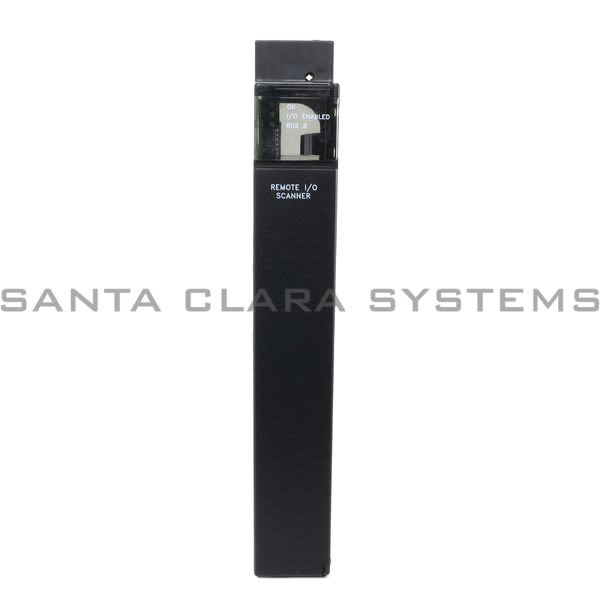

  • General Electric IC697 BEM 733 Series 90-70 Genius I/O Scanner Product Image

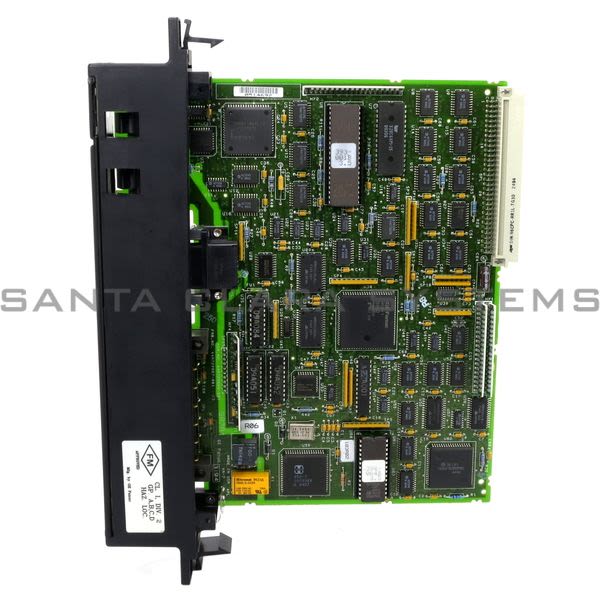

  • General Electric IC697 BEM 733 Series 90-70 Genius I/O Scanner Product Image
  • General Electric IC697 BEM 733 Barcode

IC697BEM733

Product Summary:

  • Type of Device: I/O Module Genius Remote Bus Expansion 128BYTES
  • Weight: 1.5 lbs
  • Size: Occupies single slot in IC697 remote rack
  • LEDs: Module OK, I/O Enabled, Bus B Active
  • Current Required from +5V Bus: 0.8 amps
Get a Quote

Current response time:

8 Minutes 8 Seconds
  • Description: Series 90-70 Genius I/O Scanner
  • Type of Device: I/O Module Genius Remote Bus Expansion 128BYTES
  • Product Description: The IC697 Remote I/O Scanner (IC697BEM733/735) is an intelligent module that mounts in a remote IC697 rack, and interfaces IC697 I/O modules to an IC66* bus. A Remote I/O Scanner and the modules it serves make up a remote drop on the IC66* bus. A remote drop can consist of up to eight racks, linked by Bus Transmitter and Bus Receiver modules. 9-slot and/or 5-slot IC697 racks can be used. The maximum distance from the first rack to the last rack in a remote drop is 50 feet (15 meters). The Remote I/O Scanner can handle any mix of discrete and analog inputs and outputs up to a total of 1024 discrete inputs and 1024 discrete outputs, or 64 analog inputs and 64 analog outputs (regardless of the number of racks in the remote drop). A remote drop can include all presently-available IC697 discrete modules, analog modules, and analog expander modules. Bus Transmitter, Bus Receiver, PCM, and ADS modules can also be placed in a remote drop. A remote drop cannot have any I/O module interrupts, bus controllers, communications modules, or other modules that depend on COMREQ instructions for their operations. The Remote I/O Scanner is ideally suited for use in an IC697 PLC system. However, any type of PLC or computer capable of controlling an IC66* bus can be used as the host. Suitable hosts include IC660 PLCs, IC655 PLCs, and computers equipped with a PCIM (Personal Computer Interface Module), QBIM (Q-Bus Interface Module), or a third-party GENI-based interface.
  • Weight: 1.5 lbs
  • Size: Occupies single slot in IC697 remote rack
  • LEDs: Module OK, I/O Enabled, Bus B Active
  • Ports: One 15-pin RS-422/485 compatible serial port, one 9-pin IC66* Hand-held Monitor port.
  • Current Required from +5V Bus: 0.8 amps
  • Bus Type: Daisy-chained bus cable; single twisted pair plus shield or Twinax. Fiber optics cable and modems can also be used.
  • Bus Termination: 75, 100, 120, or 150 ohm resistor at both ends of electrical bus cable.
  • Baud Rate: Configurable. 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud.
  • Maximum Bus Length: 7500 feet (2275 meters) at 38.4 Kbaud, 4500 feet (1365 meters) at 76.8 Kbaud, 3500 feet (1060 meters) at 153.6 Kbaud extended, 2000 feet 605 meters) at 153.6 Kbaud, standard. Maximum length at each baud rate also depends on cable type. The IC66* I/O System User?s Manual provides a complete list of cable types, showing corresponding bus lengths and baud rates.
  • Maximum Number of Devices per Bus: 32 devices at 153.6 Kbaud standard, 153.6 Kbaud extended, or 76.8 Kbaud. 16 devices at 38.4 Kbaud. Includes bus controller and Handheld Monitor.
  • 153.6K baud extended: Up to 20 fully-loaded drops, or up to 30 drops if not fully-loaded.
  • 76.8K baud: Up to 10 fully-loaded drops, or up to 30 drops if not fully-loaded.
