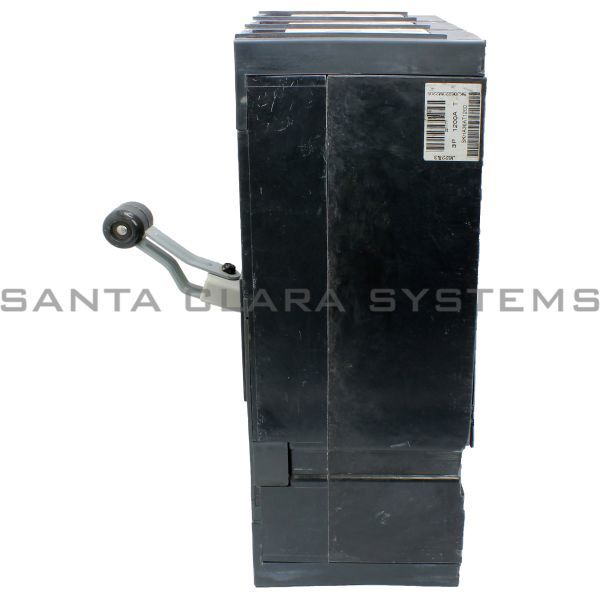

• General Electric SKHA 36AT 1200 Product Image

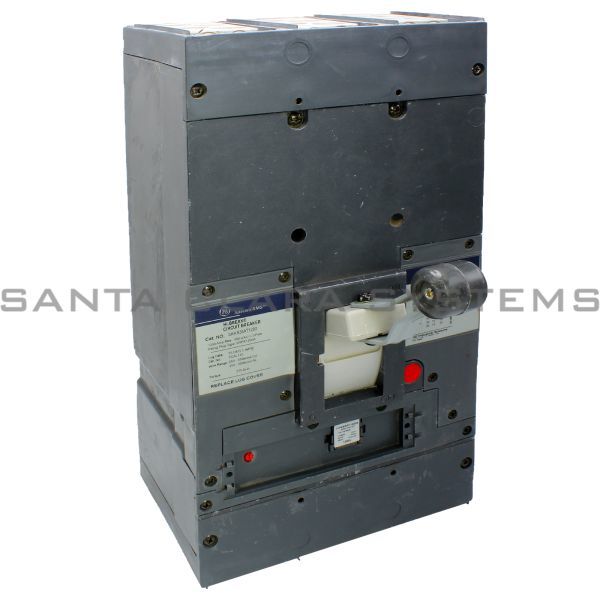

  • General Electric SKHA 36AT 1200 Product Image

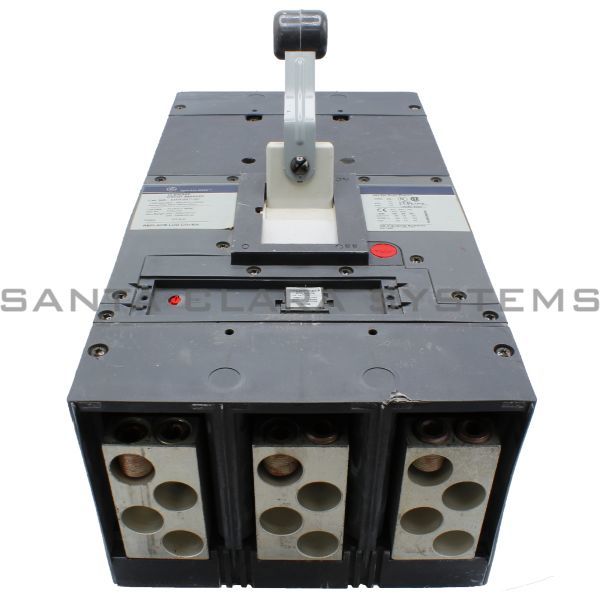

  • General Electric SKHA 36AT 1200 Product Image

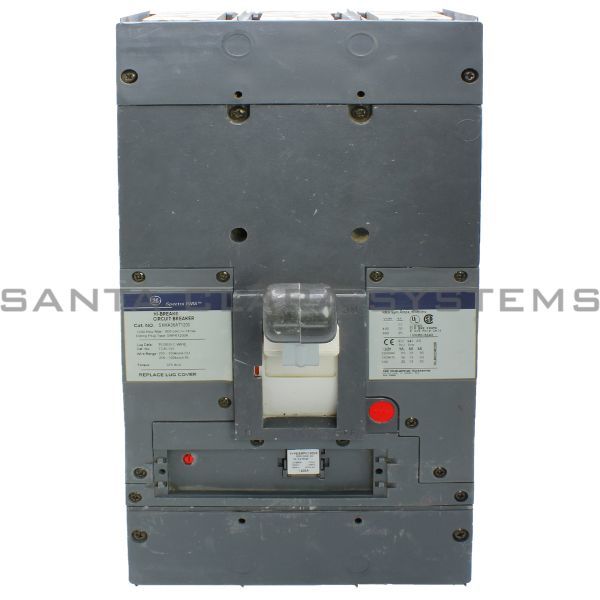

  • General Electric SKHA 36AT 1200 Product Image
  • General Electric SKHA 36AT 1200 Barcode

SKHA36AT1200

Product Summary:

  • Type of Device: Molded Case Circuit Breaker; 1200 Amp, 600 Volt AC, 3-Pole
  • Height: 11.0000
  • Width: 12.0000
  • Amperage: 1200 A
  • Length: 24.2500
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description:
  • Type of Device: Molded Case Circuit Breaker; 1200 Amp, 600 Volt AC, 3-Pole
  • Product Description: The Molded case circuit breaker has SK1200-frame for safety purpose. The standard circuit breaker ampere rating can be established/changed through digital, solid-state, RMS sensing trip system with field installable, front-mounted rating plugs. Trip system of circuit breaker determines RMS value of sinusoidal and non-sinusoidal currents using digital sampling. Industrial electronic breaker includes short/long/instantaneous time trip functionality. Circuit breaker has voltage rating of 600 VAC and current rating of 1200 Amps. It has interrupt current rating of 25 kilo-Amps. Molded case circuit breaker features LSI trip function and TCAL125 lugs for better connectivity. It is well suited for reverse fed application and has HACR special markings for convenience. It measures 8.250 Inch x 5.500 Inch x 15.500 Inch. Circuit breaker is UL listed and CSA/CE certified.
  • Height: 11.0000
  • Width: 12.0000
  • Amperage: 1200 A
  • Length: 24.2500
  • Voltage Rating: 600 Volt AC
  • Number Of Poles: 3
  • Standards: UL File E11592, CSA File LR40350
  • Commodity Code: 32742
  • Frame: SK1200
  • Frame Type: SK
  • Gross Weight: 46.100
  • Interrupt Rating: 25 Kilo-Amp
  • Interrupting Rating: 65 Kiloampere At 240 Vac, 50 Kiloampere At 480 Vac, 25 Kiloampere At 600 VAC (Ul); 65 Kiloampere At 220 to 240 Vac, 50 Kiloampere At 380 to 415 Vac, 25 Kiloampere At 500 VAC (Iec)
  • Product Details: Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SKHA36AT1200 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
