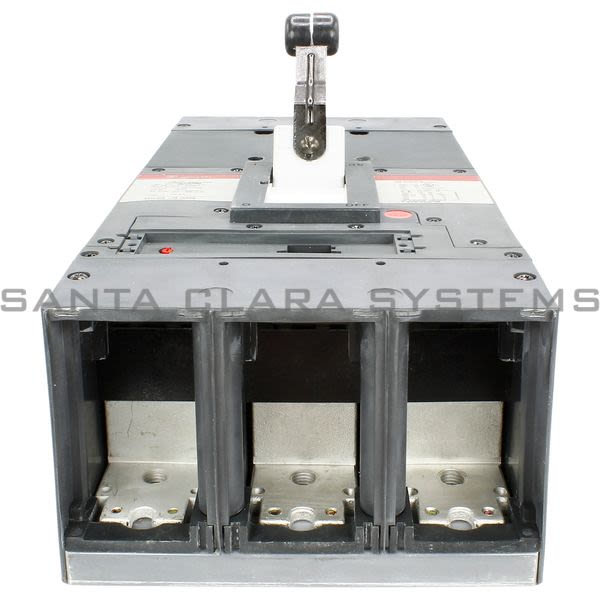

• General Electric SKLA 36AT 0800 3P Standard Circuit Breaker 800A 600VAC Product Image

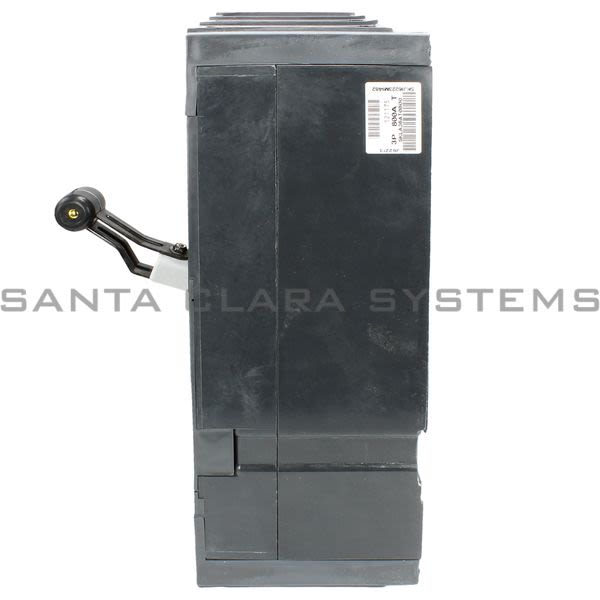

  • General Electric SKLA 36AT 0800 3P Standard Circuit Breaker 800A 600VAC Product Image

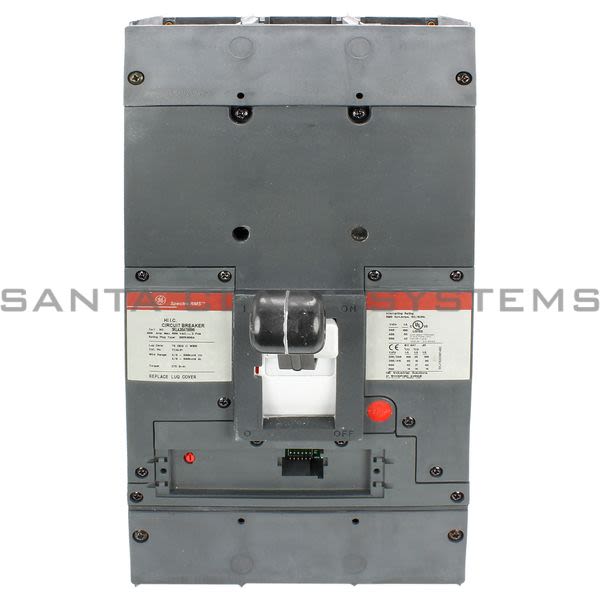

  • General Electric SKLA 36AT 0800 3P Standard Circuit Breaker 800A 600VAC Product Image
  • General Electric SKLA 36AT 0800 3P Standard Circuit Breaker 800A 600VAC Product Image
  • General Electric SKLA 36AT 0800 Barcode

SKLA36AT0800

Product Summary:

  • Type of Device: Molded Case Circuit Breaker; 800 Amp, 600 Volt AC, 3-Pole
  • Height: 9.5000
  • Width: 11.5000
  • Length: 17.2500
  • Voltage Rating: 600 Volt AC
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: 3P Standard Circuit Breaker 800A 600VAC
  • Type of Device: Molded Case Circuit Breaker; 800 Amp, 600 Volt AC, 3-Pole
  • Product Description: General Electric Spectra RMS SKL 3-Pole Molded case circuit breaker has SK1200-frame for safety purpose. The standard circuit breaker ampere rating can be established/changed through digital, solid-state, RMS sensing trip system with field installable, front-mounted rating plugs. Trip system of circuit breaker determines RMS value of sinusoidal and non-sinusoidal currents using digital sampling. Industrial electronic breaker includes short/long/instantaneous time trip functionality. Circuit breaker has voltage rating of 600 VAC and current rating of 800 Amps. It has interrupt current rating of 42 kilo-Amps. Molded case circuit breaker features LSI trip function and TCAL81 lugs for better connectivity. It is well suited for reverse fed application and has HACR special markings for convenience. It measures 8.250 Inch x 5.500 Inch x 15.500 Inch. Circuit breaker is UL listed and CSA/CE certified.
  • Height: 9.5000
  • Width: 11.5000
  • Length: 17.2500
  • Voltage Rating: 600 Volt AC
  • UPC Number: 78316421175
  • Number Of Poles: 3 Poles
  • Product Type: Circuit Breaker
  • Amperage Rating: 800 Amp
  • Frame: SK1200
  • Gross Weight: 45.700
  • Interrupt Rating: 42 Kilo-Amp
  • Interrupting Rating: 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 42 Kiloampere At 600 VAC (Ul); 100 Kiloampere At 220 to 240 Vac, 65 Kiloampere At 380 to 415, 42 Kiloampere At 500 Vac, 14 Kiloampere At 690 VAC (Iec)
  • Load Rating: HACR
  • Maximum AC Voltage Rating: 690
  • Model: SKL
  • Trip Type: Electronic, Interchangeable
  • Prodcut Features: Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SKLA36AT0800 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
