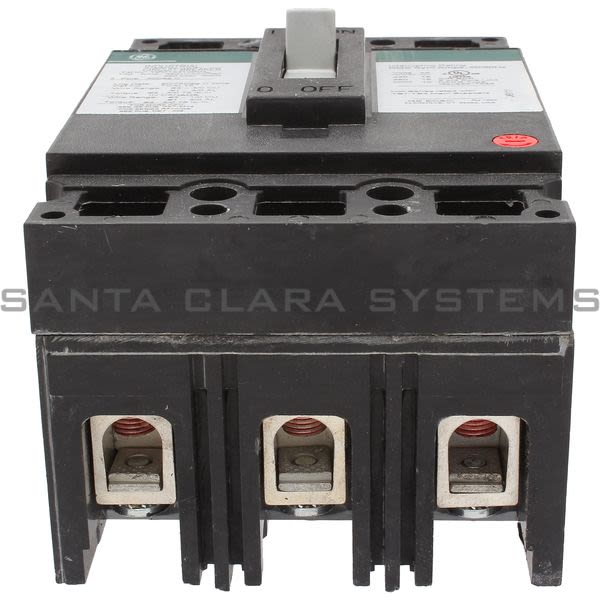

• General Electric TED134100WL Circuit Breaker Product Image

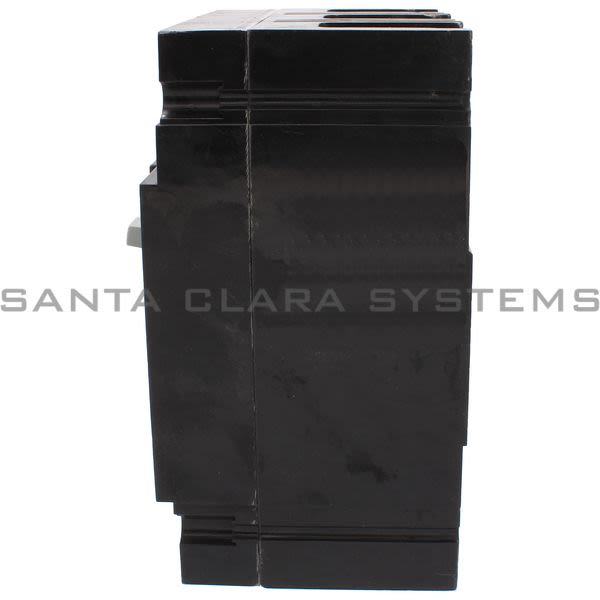

  • General Electric TED134100WL Circuit Breaker Product Image

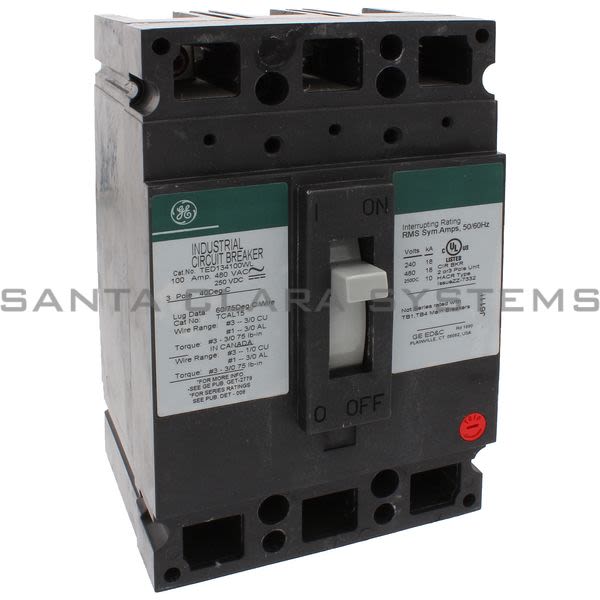

  • General Electric TED134100WL Circuit Breaker Product Image

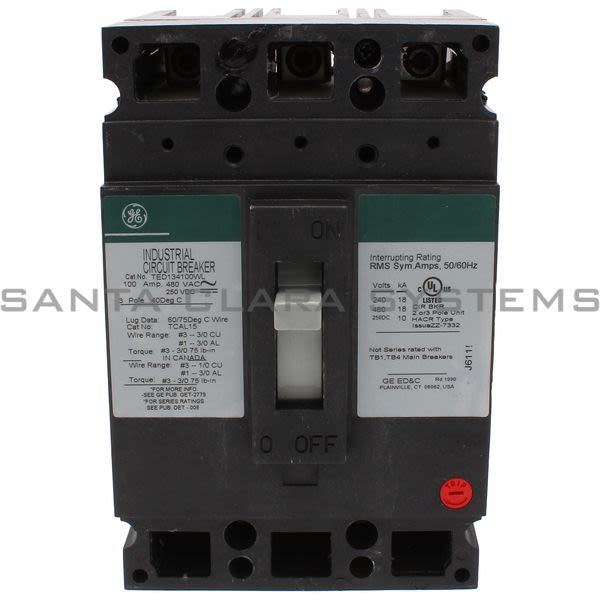

  • General Electric TED134100WL Circuit Breaker Product Image
  • General Electric TED134100WL Barcode

TED134100WL

Product Summary:

  • Height: 5.0000
  • Width: 9.0000
  • Amperage: 100 A
  • Length: 3.5000
  • Number Of Poles: 3
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Circuit Breaker
  • Type of Device: Molded Case Circuit Breaker; 100 Amp, 480/600 Volt AC, 500 Volt DC, 3-Pole
  • Height: 5.0000
  • Width: 9.0000
  • Amperage: 100 A
  • Length: 3.5000
  • Number Of Poles: 3
  • Connection: Aluminum/Copper Line/Load Lug Terminal
  • Frame: E150
  • Frame Type: Ted
  • Gross Weight: 4.112
  • Maximum AC Voltage Rating: 600
  • Maximum DC Voltage Rating: 500
  • Product Details: The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs.
  • Product Descriptions: General Electric TED E150 3-Pole Molded case circuit breaker finds application in load centers. Thermal-magnetic and bolt-on circuit breaker has voltage rating of 480/600 VAC, 500 VDC and current rating of 100 Amps. It has an interrupt current rating of 18 kilo-Amps at 480 VAC, 14 kilo-Amps at 600 VDC and 10 kilo-Amps at 500 VDC. It measures 4-1/8 Inch x 3-3/8 Inch x 6-5/16 Inch. Circuit breaker has interchangeable LI trip, long time/instantaneous functionality. It includes TC041 and TCAL15 lugs. Circuit breaker meets UL file E11592/CSA file LR57114 standards.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TED134100WL . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
