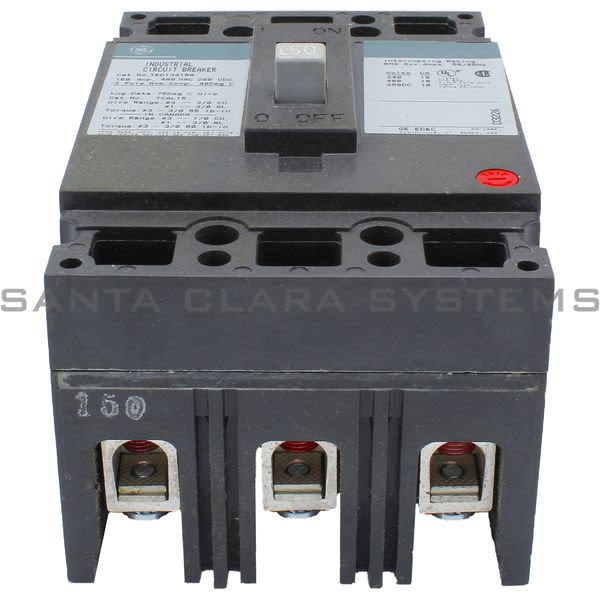

• General Electric TED134150WL Circuit Breaker 150AMP 3 Pole 480VAC w/Lugs Product Image

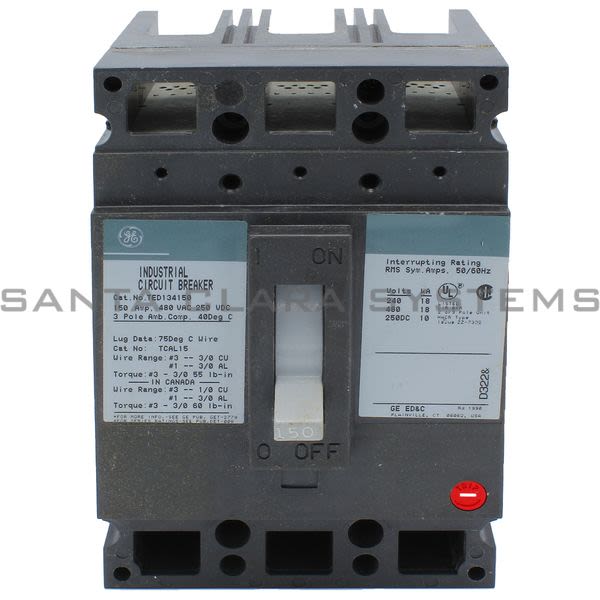

  • General Electric TED134150WL Circuit Breaker 150AMP 3 Pole 480VAC w/Lugs Product Image

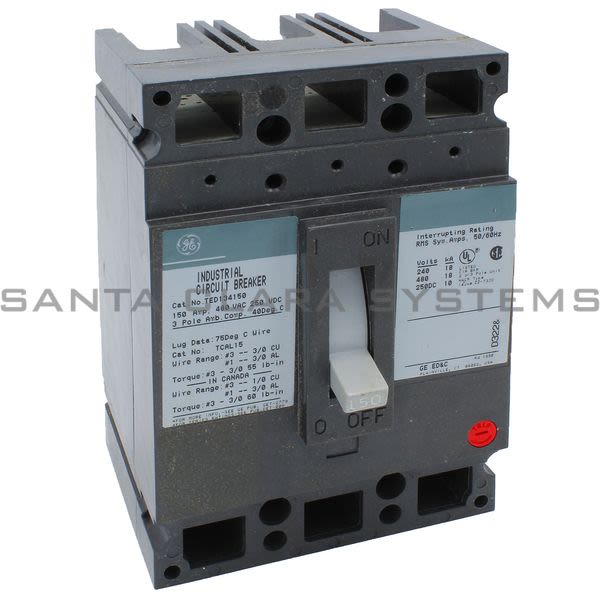

  • General Electric TED134150WL Circuit Breaker 150AMP 3 Pole 480VAC w/Lugs Product Image

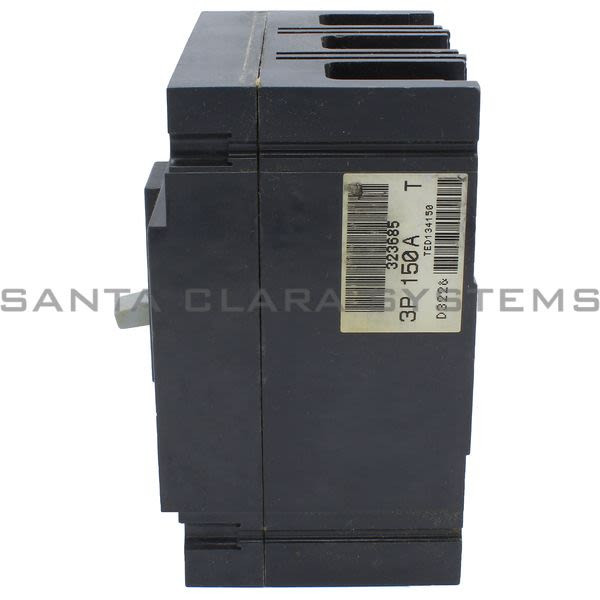

  • General Electric TED134150WL Circuit Breaker 150AMP 3 Pole 480VAC w/Lugs Product Image
  • General Electric TED134150WL Barcode

TED134150WL

Product Summary:

  • Type of Device: Molded Case Circuit Breaker
  • Height: 3.7500
  • Width: 4.2500
  • Amperage: 150 Amp
  • Length: 6.5000
Let Us Find It

Current response time:

15 Minutes 53 Seconds
  • Description: Circuit Breaker 150AMP 3 Pole 480VAC w/Lugs
  • Type of Device: Molded Case Circuit Breaker
  • Product Description: The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs.
  • Height: 3.7500
  • Width: 4.2500
  • Amperage: 150 Amp
  • Length: 6.5000
  • Voltage Rating: 480/600 Volt AC, 500 Volt DC
  • Number Of Poles: 3 Poles
  • Terminal Type: Aluminum/Copper Line Lug, Load Lug
  • Application: For Reverse Feed, Industrial Application
  • Commodity Code: 32613
  • Connection: Aluminum/Copper Line/Load Lug Terminal
  • Frame: E150
  • Frame Type: Ted
  • Interrupt Rating: 18 Kilo-Amp at 480 Volt AC, 14 Kilo-Amp at 600 Volt DC, 10 Kilo-Amp at 500 Volt DC
  • Interrupting Rating: 18 Kiloampere At 240/480 Vac, 14 Kiloampere At 600 Vac, 10 Kiloampere At 500 Vdc
  • Maximum AC Voltage Rating: 600
  • Maximum DC Voltage Rating: 500
  • Trip Range: Non-Interchangeable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TED134150WL . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
