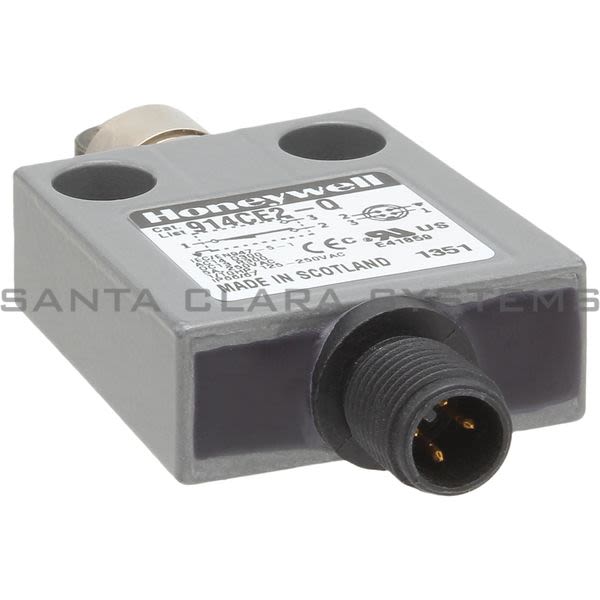

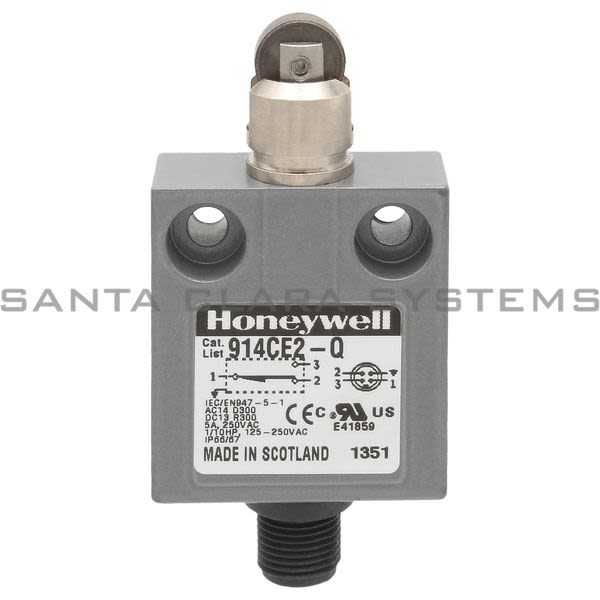

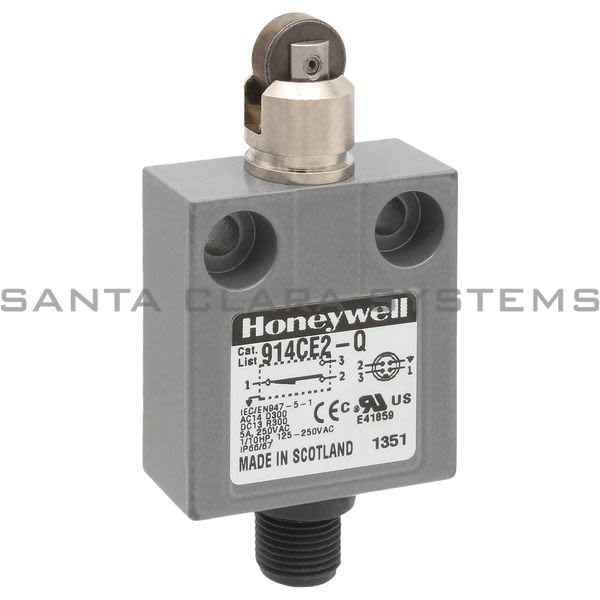

- Description: Limit Switch | Microswitch
- Supply Voltage: 125 Vac/250 Vac
- Actuator: Top Roller Plunger
- Operating Temperature: 0 C to 105 C [32 F to 221 F]
- Termination Type: 4-Pin dc Micro-Connector
- Housing Material: Zinc Die-Cast
- Product Type: MICRO SWITCH Miniature Limit Switches
- Overtravel (OT): 3,0 mm [0.118 in] min.
- Operating Force (OF): 11,8 N [2.65 lb] max.
- Pretravel (PT): 1,0 mm 0,5 mm [0.04 in 0.02 in]
- Availability: Global
- Release Force: 4,4 N [0.99 lb] max.
- Ampere Rating: 3 A (Thermal)
- Series Name: 914CE
- Expected Mechanical Life: up to 10 Million
- Comment: Bottom Exit Connector; 4-Pin dc Micro-Connector
- UNSPSC Code: 39122213
- Sealed: Industrial
- Differential Travel (DT): 0,1 mm [0.004 in] max.
- Circuitry: 1NC 1NO SPDT Snap Action
- Sealing: IP66, IP67, IP68; NEMA 1, 2, 3, 3R, 4, 6, 6P, 13
- UL File #: E41859
- Agency Approvals and Standards: UL, CE, CSA. IEC947-5-1, EN60947-5-1
- UNSPSC Commodity: 39122213 Limit Switches
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 914CE2-Q . Santa Clara Systems carries 2,250 items from Honeywell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
