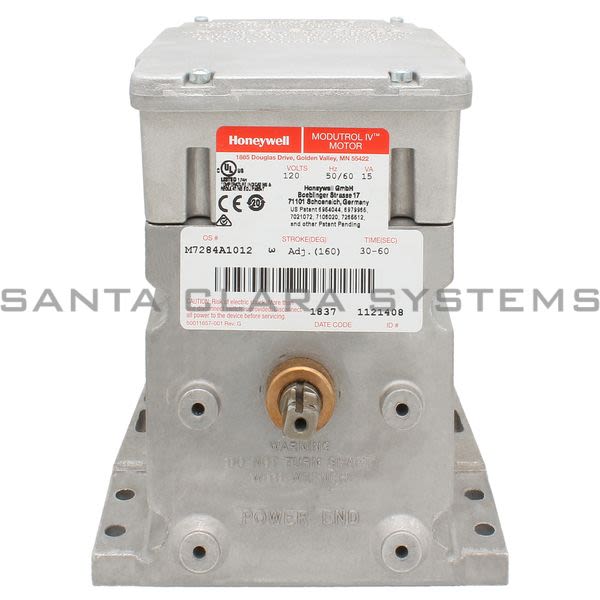

M7284A1012

Honeywell - Modutrol IV Motor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Modutrol IV Motor
Supply Voltage: 120V
Mounting: Foot-mounted
Application: Electric
Dimensions (in.): 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Weight (lb): 7.5 lb
Frequency: 50 Hz; 60 Hz
Power Consumption: Driving-- 15 VA
Ambient Temperature Range (F): -40 F to +150 F
Stroke: Adjustable; 90 to 160 degrees, Asymmetrical
Shaft Dimensions (in.): 0.375 in. Square

Control Signal: Modulating, 4-20 mA
Fail Safe Mode: Non-Spring Return
Torque Rating (lb-in.): 150 lb-in.
Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)
Factory Stroke Setting: 160 degrees
Timing, Nominal: 30-60 sec
Shaft Dimensions (mm): 10 mm Square
Motor shafts: Dual-ended shaft
Deadweight Load on Shaft: Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
Internal Transformer: 50004263-002
