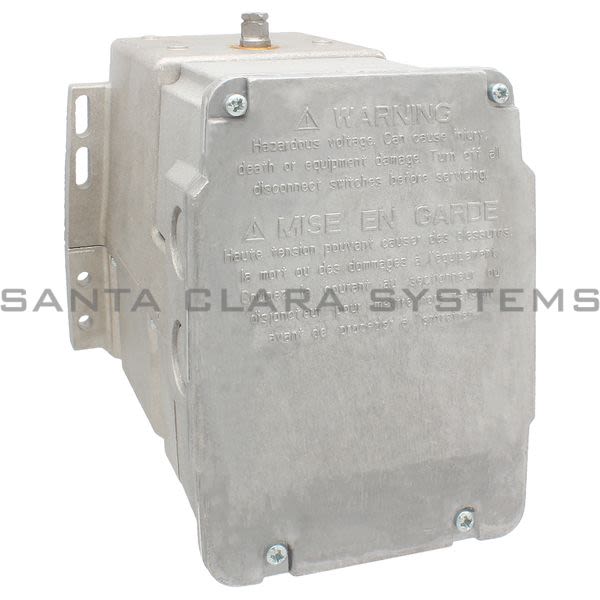

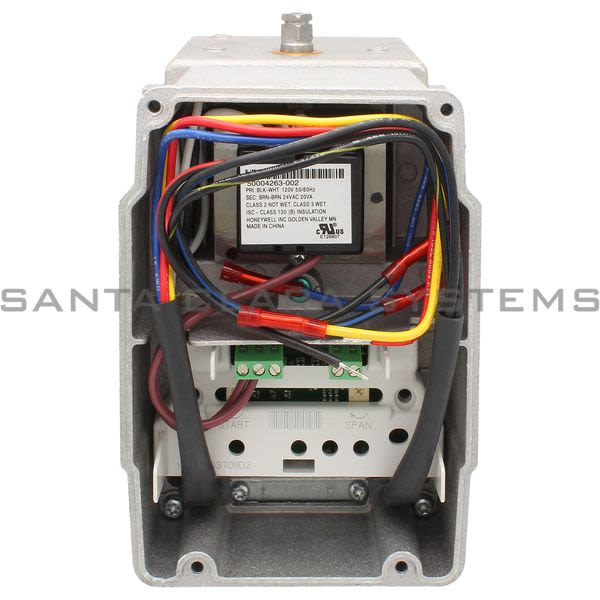

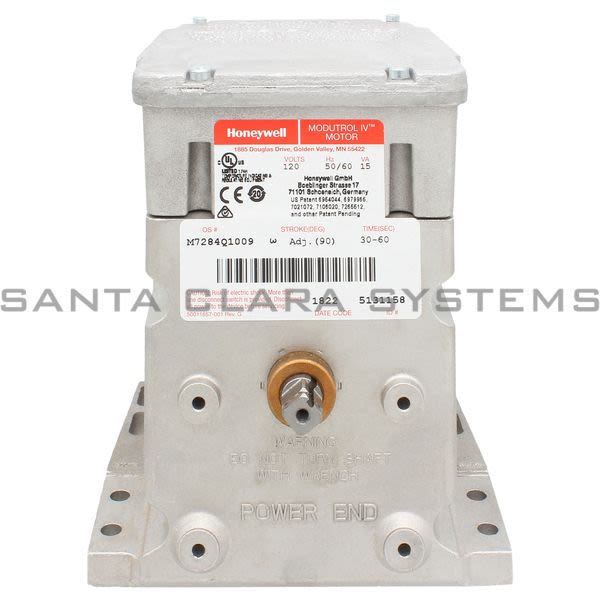

M7284Q1009

Honeywell - Modutrol IV Motor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Modutrol IV Motor
Supply Voltage: 120V
Mounting: Foot-mounted
Application: Electric
Dimensions (in.): 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Weight (lb): 7.5 lb
Comments: Adjustable zero and span for split range applications
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: Listed: File No. E4436, Guide No. XAPX for USA and Canada
Electrical Connections: Screw terminals
Power Consumption: Driving-- 15 VA
Approvals, CE: EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD

Ambient Temperature Range (F): -40 F to +150 F
Internal Auxiliary Switch: 2
Auxiliary Switch Ratings: AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
Stroke: Adjustable; 90 to 160 degrees, Symmetrical
Shaft Dimensions (in.): 0.375 in. Square
Control Signal: Modulating, 4-20 mA
Fail Safe Mode: Non-Spring Return
Torque Rating (lb-in.): 150 lb-in.
Shaft Dimensions (mm): 10 mm Square
Timing, Nominal: 30-60 sec
Factory Stroke Setting: 90 degrees
Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on M7284Q1009 . Santa Clara Systems carries 2,204 items from Honeywell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
