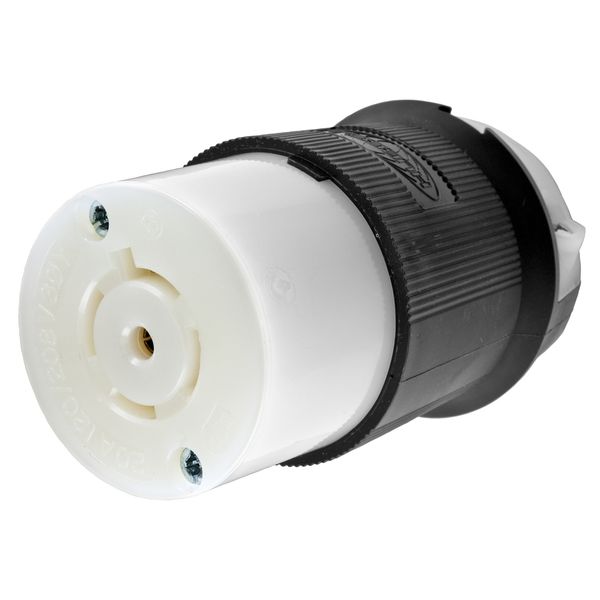

• Hubbell HBL2513 Control Product Image
  • Hubbell HBL2513 Barcode

HBL2513

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Control
  • Specifications Description: 4P5W, 20A 3PH 120/208V AC, L21-20R, Black & White Nylon
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.4
  • Amperage: 20A
  • Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Voltage: 3 Phase Y 120/208V AC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 20A #12 AWG
  • Moisture Resistance: IP20
  • Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
  • Ground Screw Material: #10-32 Brass (green finish) Multi-drive
  • Device Color: Black/White
  • Catalog No: Permanently ink marked on product
  • Product Item: Connector Body
  • Wiring Scheme: 4-Pole, 5-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Insulgrip
  • Housing Material: Black nylon
  • NEMA Configuration: L21-20R
  • Cord Dia.: .35"-1.15" (9-29)
  • Terminal Retainer Material: Clear polycarbonate
  • Cord Clamp Material: Natural (white) nylon
  • Terminal Clamp Material: .08" (2) steel-nickel plated
  • Cord Clamp Screw Material: Steel, zinc plated Multi-drive
  • Body Holding Screw Material: Steel, zinc plated Multi-drive
  • Body Contact Carrier Material: Natural White Nylon
  • Contact Spring Material: Brass
  • Spring Binding Plate Material: Brass
  • Ground Contact Material: .031" (.8) Brass
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
  • Listings: FED SPEC UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2513 . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
