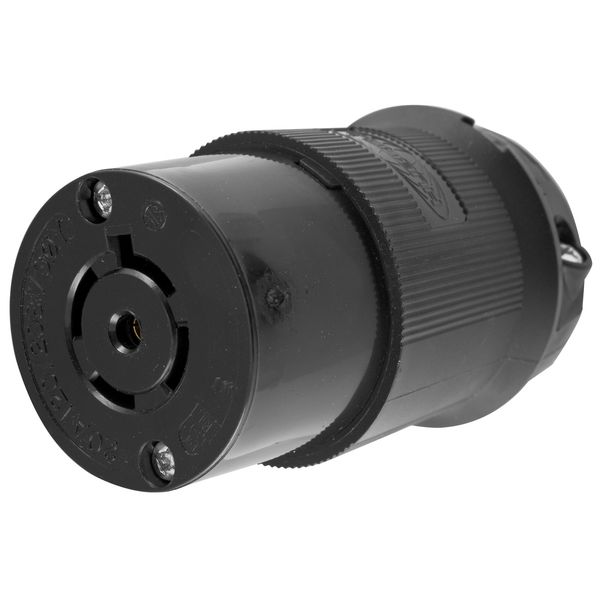

HBL2513BK

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control
Specifications Description: 4P5W, 20A 3PH 120/208V AC, L21-20R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.35
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase Y 120/208V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Moisture Resistance: IP20
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (green finish) Multi-drive
Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Connector Body
Wiring Scheme: 4-Pole, 5-Wire Grounding

Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Insulgrip
Housing Material: Black nylon
NEMA Configuration: L21-20R
Cord Dia.: .35"-1.15" (9-29)
Contact Nose Material: Black Nylon
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Black Nylon
Terminal Clamp Material: .08" (2) steel-nickel plated
Cord Clamp Screw Material: Steel, zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
