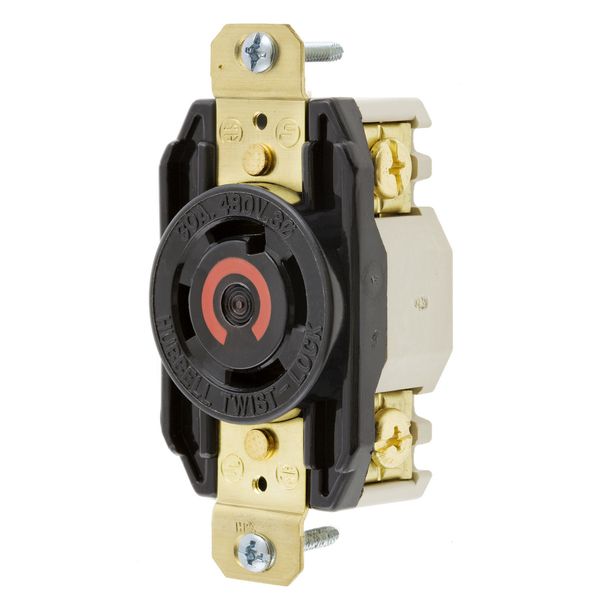

• Hubbell HBL2730 Flush Receptacle | Twist-Lock Product Image
  • Hubbell HBL2730 Barcode

HBL2730

Get a Quote

Current response time:

11 Minutes 15 Seconds
  • Description: Flush Receptacle | Twist-Lock
  • Specifications Description: 3P4W, 30A 3PH 480V, L16-30R, Black Nylon Face
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.25
  • Amperage: 30A
  • Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Voltage: 3 Phase 480V AC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 30A #10 AWG
  • Terminal Screw Material: #10-32 Bronze (White finish on neutral screw when used)
  • Ground Screw Material: #10-32 Bronze (Green)
  • Device Color: Black
  • Catalog No: Permanently ink marked on product
  • Product Item: Single Receptacle
  • Wiring Scheme: 3-Pole, 4-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Standard
  • Horsepower: 10
  • NEMA Configuration: L16-30R
  • Terminal Clamp Material: .040" (1.0 ) Brass
  • Contact Spring Material: .040" Brass
  • Mounting Screw Material: Steel-zinc-plated
  • Cover (Top) Material: Black Nylon
  • Base Material: Nylon Polyester
  • Ground Contact Material: .040" Brass
  • Bridge (Mounting Strap) Material: .050" Brass
  • Back Plate Material: .040" Brass
  • Rivet Material: Brass
  • Auto Ground Clip Material: Stainless Steel
  • Listings: FED SPEC UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2730 . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 2730A
  • 2730
