Out of Stock

HBL2730SR2

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

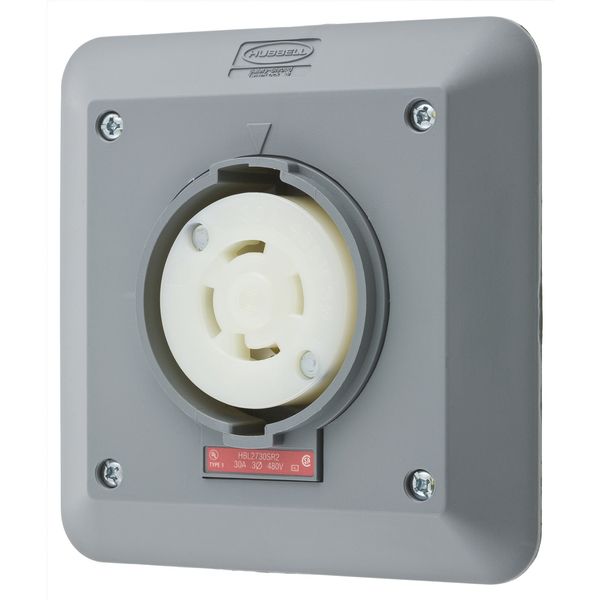

Specifications Description: 3P4W, 30A 3PH 480V, L16-30R, Gray 2-Gang Surface Mount Housing
UPC Number: 7.83585E+11
Weight in LBs: 0.65
Amperage: 30A
Flammability: HB or better per UL94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase 480V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (Green)
Device Color: Gray
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle
Wiring Scheme: 3-Pole, 4-Wire Grounding

Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Shrouded
Horsepower: 10
Housing Material: Impact modified PBT
NEMA Configuration: L16-30R
Item Version: 2 Gang
Terminal Retainer Material: Clear polycarbonate
Terminal Clamp Material: Steel, nickel plated .080" Curved, scalloped
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: .031" Brass
Spring Binding Plate Material: .031" Brass
Mounting Screw Material: Steel, zinc plated
Ground Contact Material: .031" Brass
Rivet Material: Steel
Housing and Flange Material: Gray Valox 357U
Mounting Plate Material: Galvanized steel
Listings: FED SPEC UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2730SR2 . Santa Clara Systems carries 10,217 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
