HBL2731SW

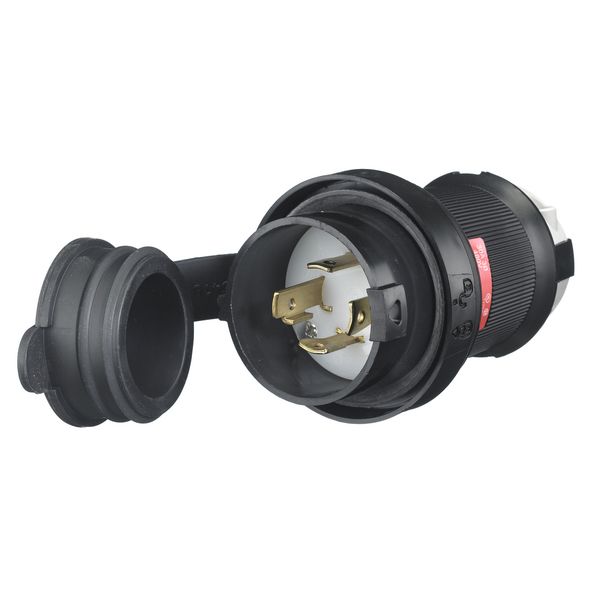

Hubbell - Watertight Safety-Shroud® Plug

Current response time:

By 5AM PT on Monday

Emergency?

Description: Watertight Safety-Shroud® Plug
Specifications Description: 3P4W, 30A 3PH 480V, L16-30P, Black & White Thermoplastic Polyester
UPC Number: 7.83585E+11
Weight in LBs: 0.7
Amperage: 30A
Flammability: VO per UL94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase 480V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Moisture Resistance: Type 4, 4X, 12, IP66 suitability
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (green finish) Multi-drive
Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Plug
Wiring Scheme: 3-Pole, 4-Wire Grounding

Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Shrouded Watertight
Horsepower: 10
Housing Material: Impact modified PBT
NEMA Configuration: L16-30P
Cord Dia.: .35"-1.15" (9-29)
Blade Holder Material: Natural White Nylon
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Impact modified PBT
Blade Material: Brass
Terminal Clamp Material: .08" (2) steel-nickel plated
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel, Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Closure Cap and Strap Material: Neoprene EPDM Blend
Safety-Shroud Material: White Valox
Listings: FED SPEC UL/CSA
