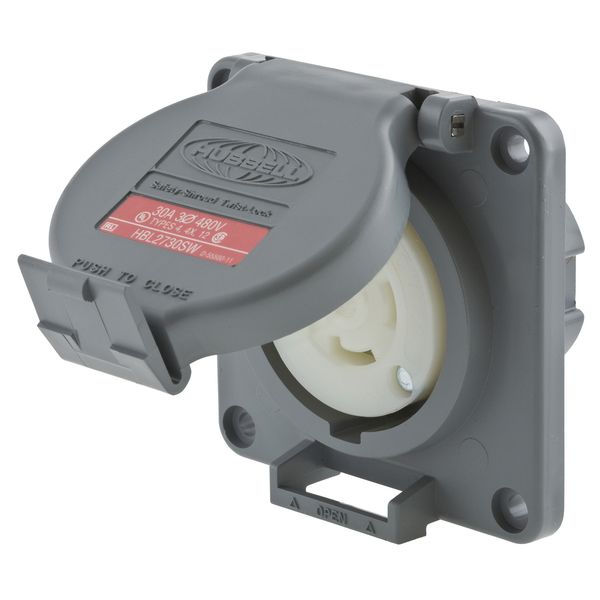

HBL2730SW

Hubbell - Control

Current response time:

4 Minutes 56 Seconds

Description: Control
Specifications Description: 3P4W, 30A 3PH 480V, L16-30R, Gray Thermoplastic Polyester Housing
UPC Number: 7.83585E+11
Weight in LBs: 0.65
Amperage: 30A
Flammability: VO per UL94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase 480V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Moisture Resistance: Type 4, 4X, 12, IP66 suitability
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (Green)
Device Color: Gray
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum

Ratings: Molded In or Stamped On
Item Style: Shrouded Watertight
Horsepower: 10
Housing Material: Impact modified PBT
NEMA Configuration: L16-30R
Terminal Retainer Material: Clear polycarbonate
Terminal Clamp Material: Steel, nickel plated .080" Curved, scalloped
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: .031" Brass
Spring Binding Plate Material: .031" Brass
Mounting Screw Material: Stainless Steel 302/304 Multi-drive
Ground Contact Material: .031" Brass
Rivet Material: Steel
Flange Gasket Material: Closed-cell Neoprene foam
Lid Gasket Material: Closed-cell Neoprene foam
Cover Hinge Pin Material: Stainless Steel 302/304
Housing and Flange Material: Gray Valox
Cover Spring Material: Stainless Steel 302/304
Listings: FED SPEC UL/CSA
