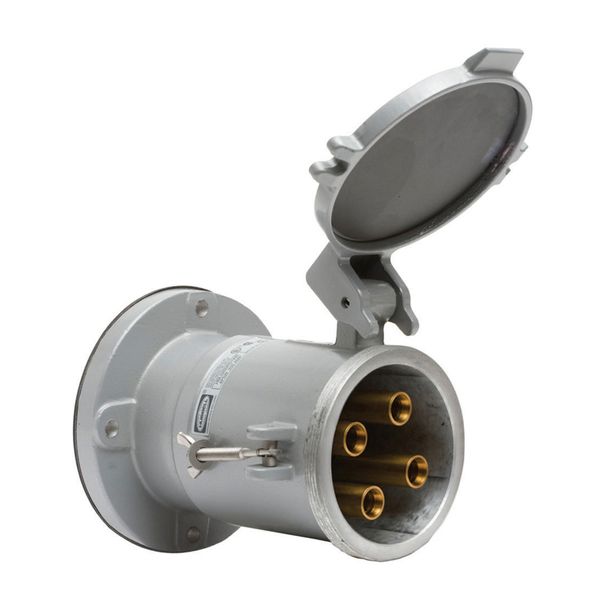

• Hubbell HBL4200RS1WR Control Product Image
  • Hubbell HBL4200RS1WR Barcode

HBL4200RS1WR

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Control
  • Specifications Description: Watertight Insulgrip Receptacle, 3P4W, 200A 600V, Series 1 Reversed Service
  • UPC Number: 78358501232
  • Weight in LBs: 9
  • Amperage: 200A
  • Flammability: UL 94V-0 and CSA C22.2 No.0.17
  • Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
  • Voltage: 250V DC/600V AC
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Terminal Identification: Terminals identified in accordance with UL1686 (1, 2, 3, Green).
  • Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
  • Poles and Wires: 3 Pole, 4 Wire
  • Moisture Resistance: Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
  • Mounting Screws: Stainless Steel (300 Series)
  • Ingress Protection: IP 66 Suitability
  • Product Identification: Identification and ratings are a permanent part of the device housing.
  • Impact Resistance: Per CSA C22.2 N0. 182.1 / UL1682
  • Max Working Voltage: 600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682).
  • Housing: Epoxy Painted Aluminum
  • Cover: Epoxy Painted Aluminum
  • Service Style: Reversed
  • Insulgrip Grounding Style: Style I
  • Device: Receptacle
  • Terminal Accommodations: #1 To #250 KCMIL copper wire only
  • Replacement Interior Number: Consult Factory
  • Mounting Flange: Epoxy Painted Aluminum
  • Contact Carrier: Thermoset Polyester
  • Retainer: Thermoset Polyester
  • Terminal Screws: Heat treated and Zinc Plated Steel
  • Assembly Screws: Stainless Steel (300 series)
  • Gaskets: Neoprene
  • Cover Arm: Epoxy Painted Aluminum
  • Arm Spring: Stainless Steel (300 series)
  • Cover Screw/Rivet: Aluminum
  • Ground/Phase Sleeve: Brass
  • Spring Guide: Stainless Steel (300 series)
  • Springs, Arm and Wave: Stainless Steel (300 series)
  • Spring Washer: Stainless Steel (300 series)
  • Hinge Bushing: Aluminum
  • Certification: UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X.
  • Dielectric Withstand Voltage: Withstands 3,000V AC Min.
  • Endurance: Up to 1,000 connect and disconnect cycles at full rated current and voltage.
  • Cord Grip Retention: Per CSA C22.2 N0. 182.1 / UL1682
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
  • Certifications: UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X.
  • Device Description: The interchangeable product line, INSULGRIP pin and sleeve features metallic where you want it and non-metallic where you need it. Two different grounding styles are available.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL4200RS1WR . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
