HBL4200RS2W

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

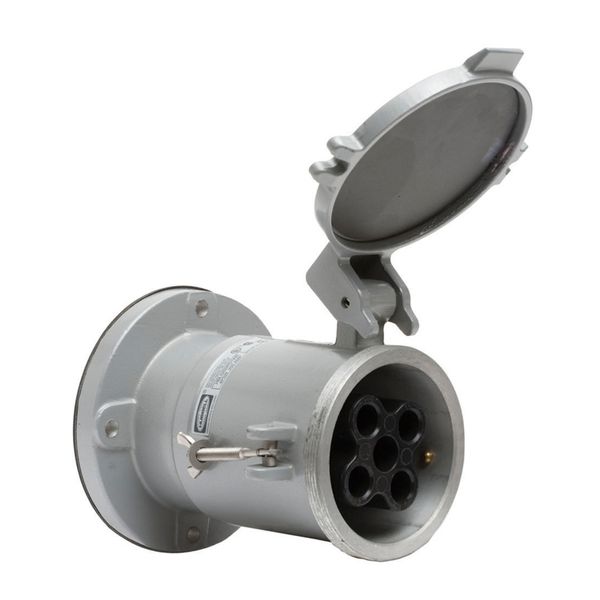

Specifications Description: Watertight Insulgrip Receptacle, 3P4W, 200A 600V, Series 2
UPC Number: 78358501150
Weight in LBs: 10.4
Amperage: 200A
Flammability: UL 94V-0 and CSA C22.2 No.0.17
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
Voltage: 250V DC/600V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL1686 (1, 2, 3, Green).
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
Poles and Wires: 3 Pole, 4 Wire
Moisture Resistance: Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
Mounting Screws: Stainless Steel (300 Series)
Ingress Protection: IP 66 Suitability
Product Identification: Identification and ratings are a permanent part of the device housing.
Impact Resistance: Per CSA C22.2 N0. 182.1 / UL1682
Max Working Voltage: 600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682).
Housing: Epoxy Painted Aluminum
Cover: Epoxy Painted Aluminum
Service Style: Standard
Insulgrip Grounding Style: Style II
Device: Receptacle
Terminal Accommodations: #1 To #250 KCMIL copper wire only

Replacement Interior Number: IN4200FS2
Hinge Spring: Stainless Steel (300 series)
Mounting Flange: Epoxy Painted Aluminum
Contact Carrier: Thermoset Polyester
Retainer: Thermoset Polyester
Ground/Phase Pins: Brass
Terminal Screws: Heat treated and Zinc Plated Steel
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cover Arm: Epoxy Painted Aluminum
Arm Spring: Stainless Steel (300 series)
Cover Screw/Rivet: Aluminum
Pin/Sleeve Spring: Beryllium Copper
Spring Guide: Stainless Steel (300 series)
Springs, Arm and Wave: Stainless Steel (300 series)
Spring Washer: Stainless Steel (300 series)
Hinge Bushing: Aluminum
Certification: UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X.
Dielectric Withstand Voltage: Withstands 3,000V AC Min.
Endurance: Up to 1,000 connect and disconnect cycles at full rated current and voltage.
Cord Grip Retention: Per CSA C22.2 N0. 182.1 / UL1682
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Certifications: UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X.
Device Description: The interchangeable product line, INSULGRIP pin and sleeve features metallic where you want it and non-metallic where you need it. Two different grounding styles are available.
