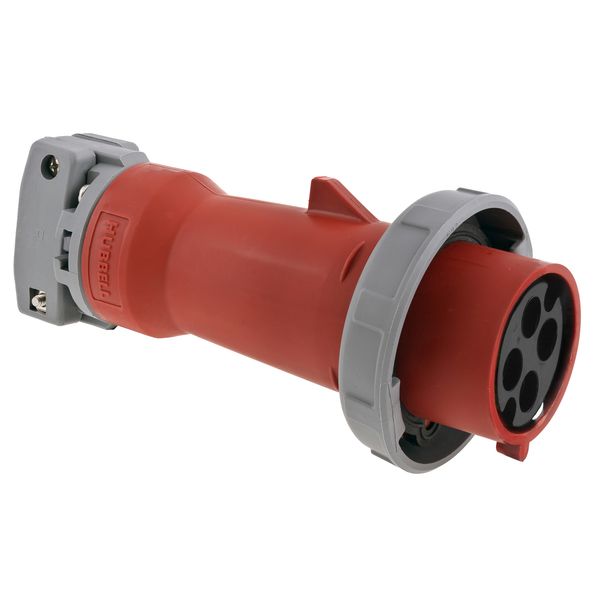

HBL430P7WR

Hubbell - Control

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Control
Specifications Description: Watertight IEC Pin and Sleeve Plug- Reversed Service, 3P4W, 30A 3PH 480V, Reversed Service
UPC Number: 78358501270
Weight in LBs: 1.6
Amperage: 30A
Voltage: 3 Phase 480V
Current Interrupting: Certified for current interrupting at full rated current.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 3 Pole, 4 Wire
Max Working Voltage: 600V RMS (i.e. minimum creepage distance 10 mm minimum)
Housing: Zytel 801 Nylon
Cover: Rynite SST35
IEC Product Type: Watertight
Service Style: Reversed
Device: Plug
Terminal Accommodations: #12 To #8 AWG copper wire only
Cord clamp range: .375" To 1.250"
Contact Carrier: High-Impact Thermoset

Retainer: High-Impact Thermoset
Ground/Phase Pins: Brass
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cord Clamps: Rynite SST35
Grommet/Glands: Solid Neoprene
Cover Arm: Rynite SST35
Arm Spring: Stainless Steel (17-1 Type)
Cord Clamp Screws: Stainless Steel (300 Series)
Clamp Nut: Nickel Plated Brass
Cover Screw/Rivet: Nickel Plated Brass
Rotating Sealing Disc: Polycarbonate
Certification: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets, LR285C for Receptacles, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, IEC
Dielectric Withstand Voltage: Withstands 3,000V AC
Certifications: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets and LR285C for Receptacle CSA Standard C22.2 No. 182.2, UL Classified to IEC 309-1 and
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
