HBL45135

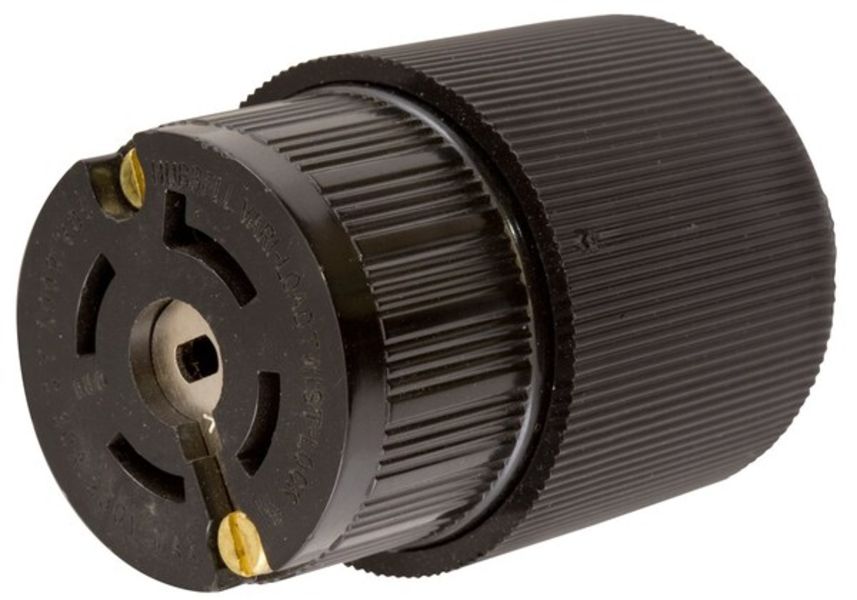

Hubbell - VARILOAD Twist-Lock Connector

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: VARILOAD Twist-Lock Connector
Specifications Description: 4P5W, 30A 600V AC Max, Non-NEMA, Black Nonmetallic Body
UPC Number: 7.83585E+11
Weight in LBs: 0.5
Amperage: 30A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V DC, 600V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Variload Devices
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG; 30A #10 AWG
Terminal Screw Material: Brass
Ground Screw Material: Brass (green finish)
Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Connector Body

Wiring Scheme: 4-Pole, 5-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Housing Material: Black nylon
Cord Dia.: .625"-1.00" (15.9-25.4)
Center Pin Variety: images/105pin.jpg
Terminal Retainer Material: Black Nylon
Cord Clamp Material: Zinc Plated Steel
Terminal Clamp Material: Cold rolled steel-nickel-plated
Cord Clamp Screw Material: Steel-zinc-plated
Body Holding Screw Material: Steel-zinc-plated
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .031" Brass
Spring Binding Plate Material: .040" Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL
