HBL6810

Hubbell - Control

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 0.2
Amperage: 20A
Flammability: UL 94 V2.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).

Current response time:

4 Minutes 3 Seconds

Description: Control

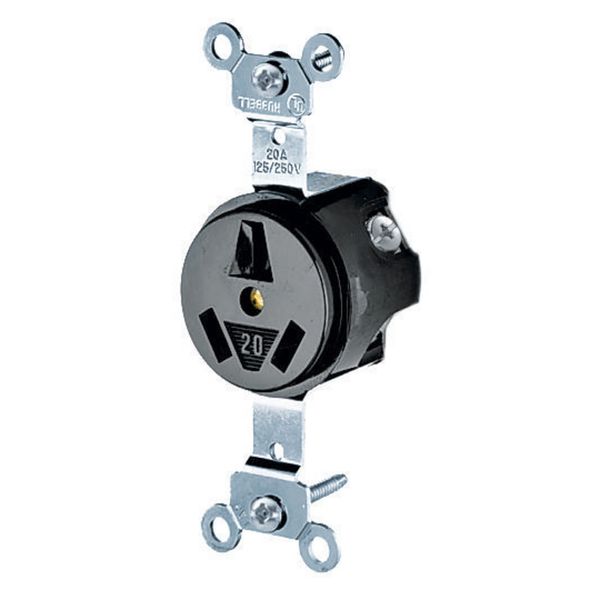

Specifications Description: 3-Pole 3-Wire Non-Grounding, 20A 125/250V, 10-20R, Black Phenolic
UPC Number: 7.83585E+11
Weight in LBs: 0.2
Amperage: 20A
Flammability: UL 94 V2.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V/250V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 3 Pole, 3-Wire Non-Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Brass /Ni plated for neutral
Product Identification: Ratings are a permanent part of the device.
Horsepower: 2(1)
Rating: 20A, 125/250V

Type: 3 Pole, 3 Wire, Non Grounding
Standard: NEMA
Receptacle Style: Single
Face Shape: Traditional
Wiring Method: Back and Side
Hospital Grade ?: No
Receptacle Grade: Compact Spec Grade
Face Style: Finder Groove
NEMA No.: 10-20R
Certification: UL Listed, File E2186, Listed to UL Standard 498
Top Material: Phenolic
Base Material: Phenolic
Power Contacts Material: .037" (.9) Brass
Mounting Strap Material: .050" (1.3) Brass-Ni Plated
Mounting Screw Material: Steel-Zinc Plated
Dielectric Voltage: Withstands 2,000V minimum.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL6810 . Santa Clara Systems carries 10,258 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
