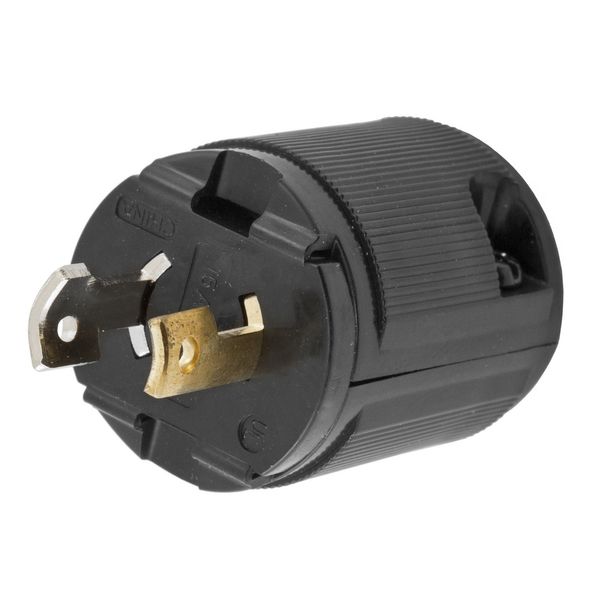

• Hubbell HBL7465V Control Product Image
  • Hubbell HBL7465V Barcode

HBL7465V

Get a Quote

Current response time:

13 Minutes 9 Seconds
  • Description: Control
  • Specifications Description: 2P2W, 15A 125V, ML-1P, Black Nylon
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.05
  • Amperage: 15A
  • Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Voltage: 125V AC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 15A #14 AWG
  • Moisture Resistance: IP20
  • Terminal Screw Material: #8-32 Steel (copper flash, nickel plate & molykote)
  • Device Color: Black
  • Catalog No: Permanently ink marked on product
  • Product Item: Connector Body
  • Wiring Scheme: 2-Pole, 2-Wire Non-Grounding
  • Dielectric Voltage Withstand: 2000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Valise
  • Housing Material: Black nylon
  • NEMA Configuration: ML-1R
  • Cord Dia.: .218"-.375" (5.5-9.5)
  • Blade Holder Material: Black Nylon
  • Cord Clamp Material: Nylon
  • Blade Material: Brass
  • Terminal Clamp Material: Cold rolled steel-nickel-plated
  • Cord Clamp Screw Material: Steel-zinc-plated
  • Body Holding Screw Material: Steel-zinc-plated
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL7465V . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 7465VBLK
  • 7465
  • 7479
  • 7428
  • 7429
  • 7462
  • 7477
  • 7465V
