Description: Control
Specifications Description: 2P2W, 15A 125V, ML-1R, Stainless Flange
UPC Number: 7.83585E+11
Weight in LBs: 0.05
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Terminal Screw Material: Brass

Device Color: Black
Catalog No: Permanently ink marked on product

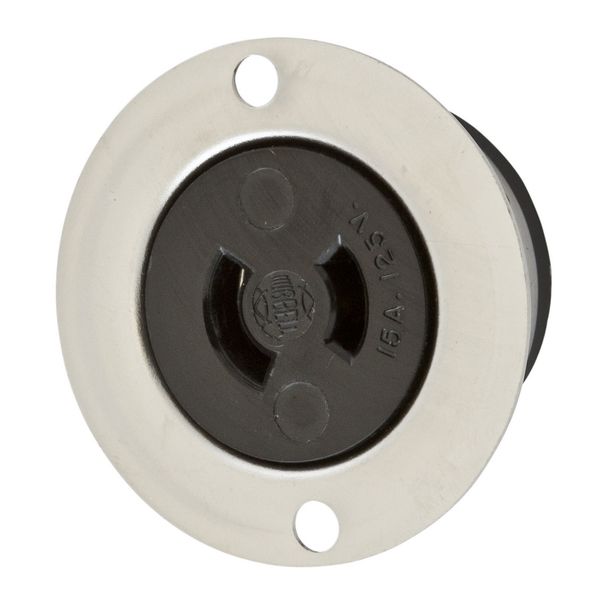

Product Item: Flanged Receptacle
Wiring Scheme: 2-Pole, 2-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
NEMA Configuration: ML-1R
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .032" (.8) Bronze
Flanged Casing Material: .025" Stainless Steel
Mounting Screw Material: Brass, Nickel plated
Ground Contact Material: .032" Bronze
