Out of Stock

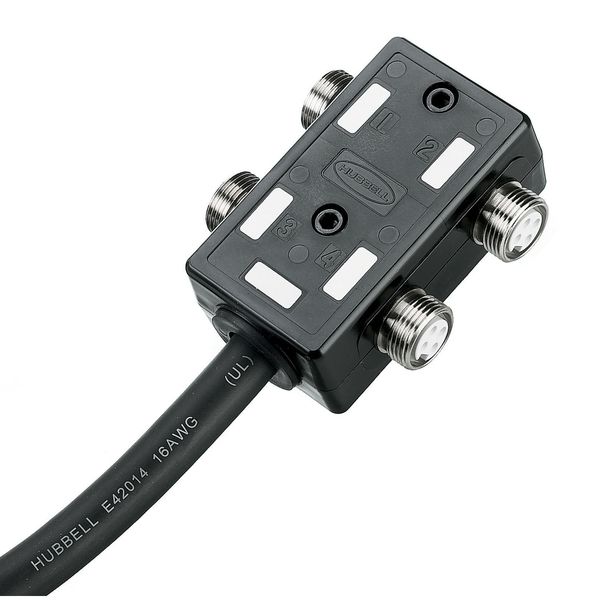

HMW44115

Hubbell - Control

Product Summary:

UPC Number: 78358516368
Weight in LBs: 3.4
Amperage: 4 Port: 10A Total, 6 Port: 9A Total, 8 Port: 8A Total
Ingress Protection: IP67
Operating Temperature: -20° C to 85° C, TPE Cable: -40° C to 105° C

Current response time:

19 Minutes 37 Seconds

Description: Control
Specifications Description: SignalPlex Mini Port junction boxes are available in 4, 6 and 8 port models. Choose either hard wired with 15 ft. of cable or connectorized to mate with a user specified Mini-Quick cable assembly.
UPC Number: 78358516368
Weight in LBs: 3.4
Amperage: 4 Port: 10A Total, 6 Port: 9A Total, 8 Port: 8A Total
Ingress Protection: IP67
Operating Temperature: -20° C to 85° C, TPE Cable: -40° C to 105° C
Body Style: Hard Wired
Voltage Rating: With LEDs: 120V AC/DC Max, Without LEDs: 600V AC/DC Max
Cable: #16 AWG, PVC Insulated Stranded Copper Conductors, Black PVC Jacket
Vibration Resistance: 10-2,000 Hz@15g per MIL-STD-1344, Method 2005
Length: 15'
Housing: Rigid PVC
Signal-Plex Port Style: Mini-Ports
# of Ports: 4
Port Wiring: 4W Parallel
LED Status: Yes

Port Voltage Rating: 120V
Insulator Materials: Micro: Nylon 6/6, White; Mini: Thermoplastic Elastomer, White
Contact Materials: Pins: Brass, Sockets: Copper Alloy with Stainless Steel Sleeve.
Contact Plating: Hard Gold over Palladium/Nickel
Receptacle Shell: Nickel Plated Brass
O-Ring: Nitrile Rubber
Strain Relief: Thermoplastic Elastomer
Receptacle Caps: Nickel Plated Brass
LED Life Expectancy: 100,000 hours
Circuit ID Labels: Adhesive Polyester
Indicating LEDs: Green=Power, Yellow=Signal/Function
Contact Resistance: £ 5 MW
Isolation Resistance: ³ 1000 MW
Moisture Protection: UL Type 4, 4X, 12 and 13
Corrosion Resistance: 500 hours salt spray per MIL-STD-1344, METHOD 1001
Certifications: UL 2238 and UL50, File No. E192071. CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94
Features/Benefits: Consistent mounting pattern between 4, 6 and 8 port enclosures. Allows quick change over to increase or decrease the number of ports without having to drill new poles.
