NHC1024CR

Hubbell - Control

Current response time:

7 Minutes 17 Seconds

Description: Control

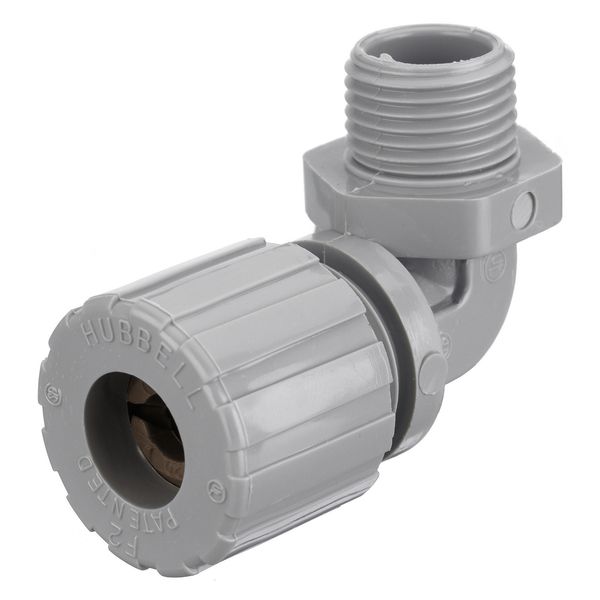

Specifications Description: Hubbell's nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue.
UPC Number: 78358520876
Weight in LBs: 0.1
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Nylon Standard Style
Cord Diameter Range: .50"- .63" (12.7- 15.9)
Cord Connector Body Style: 90 Degree Male
Form Size: F2
HUB Size: 1/2"
Color Code: Brown

Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: .86"- .91" (21.8-23.0)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A: 1.41" (35.8)
Dimension B: 2.50" (63.5) Ref.
Dimension C: .55" (14.0)
Dimension D: .58" (14.6) Throat Dia.
Dimension E A/C: 1.23" (31.2)
Dimension E A/F: 1.12" (28.2)
Dimension G: 1.32" (33.4) Dia.
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
