Out of Stock

NHC1024ZP

Hubbell - Control

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Control

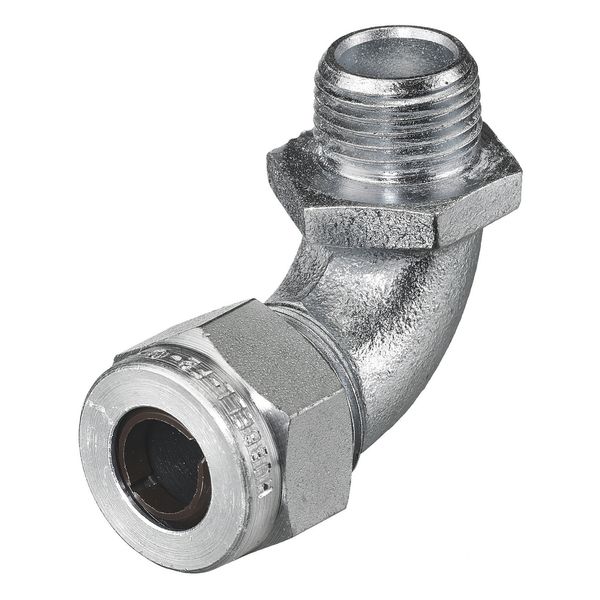

Specifications Description: The zinc-plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating. These heavy-duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials.
UPC Number: 78358521124
Weight in LBs: 0.35
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Zinc Plated Steel
Cord Diameter Range: .50"- .63" (12.7- 15.9)
Cord Connector Body Style: 90 Degree Male
Form Size: F2
HUB Size: 1/2"
Color Code: Brown

Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: .86"- .91" (21.8-23.0)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A: 1.65" (41.9)
Dimension B: 2.38" (60.5)
Dimension C: .55" (14.0) Ref.
Dimension D: .55" (13.8) Throat. Dia.
Dimension E A/C: 1.29" (32.8)
Dimension E A/F: 1.13" (28.7)
Dimension G A/C: 1.27" (32.3)
Dimension G A/F: 1.13" (28.6)
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
