Out of Stock

PT7XC

Hubbell - Control

Product Summary:

UPC Number: 78358520447
Weight in LBs: 2.35
Series: Satin Anodized Aluminum
Satin Anodized Pedestal Items: Through-Floor Fitting
Complies with:: UL 514A requirements for scrub water protection.

Current response time:

5 Minutes 54 Seconds

Description: Control

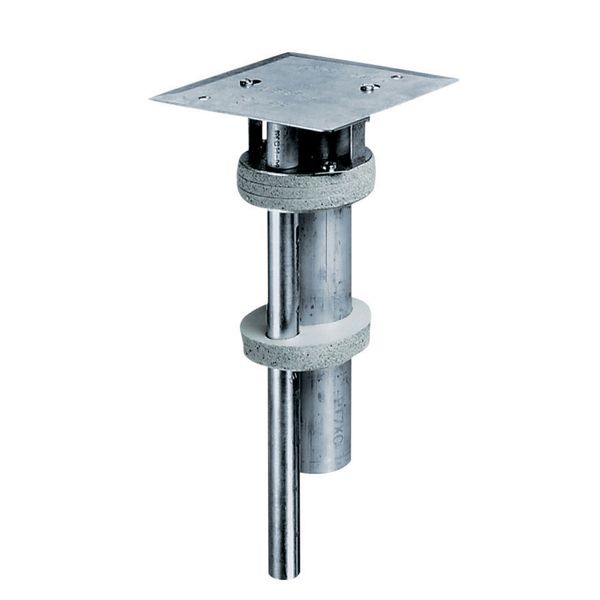

Specifications Description: Through-floor fitting to be installed in a 3" (76.2) diameter hole. Contains a 1 ¼" EMT tube for low-voltage cabling and ½" EMT tube for power wiring. For use with Hubbell FR480 and FR880 series pedestals (not for two-gang FR280 pedestals). This unit will accommodate floor thicknesses of 2 ¼ to 7 inches (57.2 to 177.8). Order extension kit Hubbell EXT13 for thicker floors.
UPC Number: 78358520447
Weight in LBs: 2.35
Series: Satin Anodized Aluminum
Satin Anodized Pedestal Items: Through-Floor Fitting

Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).
UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Pedestal Series Mounting: 3" (76.2) Diameter Hole
Pedestal Series Listing: UL Listed, CSA Certified
City of Chicago Approval: PT7XC through-floor fitting is approved for use in the City of Chicago.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PT7XC . Santa Clara Systems carries 10,258 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
