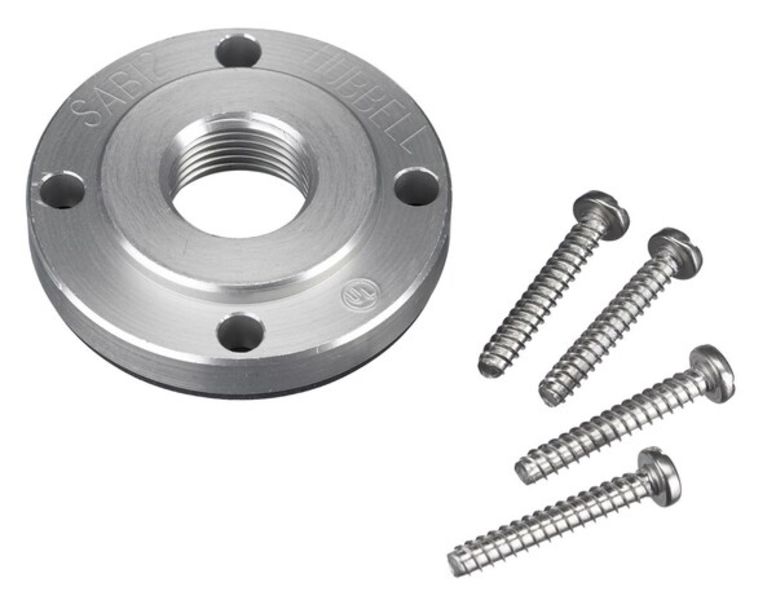

• Hubbell SAB12 Conduit Adapter Product Image
  • Hubbell SAB12 Barcode

SAB12

Get a Quote

Current response time:

17 Minutes 17 Seconds
  • Description: Conduit Adapter
  • Specifications Description: Liquid-Tight Adapter, 1/2" NPT, 5 Wire 20A, 3 and 4 Wire 30A
  • UPC Number: 78358588750
  • Weight in LBs: 0.2
  • Flammability: UL94-5VA and V-0 classification.
  • Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Terminal Identification: Terminals identified in accordance with North American and International conventions.
  • Product Type: Accessories
  • Ingress Protection: IP67 Suitability
  • Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
  • Impact Resistance: In accordance with UL746C
  • Max Working Voltage: 600V AC RMS
  • Size: 1/2" NPT
  • Accessory Item: Conduit Adapter
  • For Use With: IEC & Insulgrip Devices
  • Used In: 16 & 20A 5 Wire, 30 & 32A 3 & 4 Wire IEC And 30A Insulgrip
  • Hinge Spring: Stainless Steel (300 series)
  • Assembly Screws: Stainless Steel (300 series)
  • Gaskets: Neoprene
  • Device Description: Machined aluminum adapters are available to provide a means for attaching flexible liquid-tight metal conduit to rear of a Hubbell Pin and Sleeve plug or connector. Provides Female NPT Threads.
  • Used In:: 16 & 20A 5 Wire, 30 & 32A 3 & 4 Wire IEC And 30A Insulgrip
  • Certification: UL Listed, CSA Certified
  • Dielectric Withstand Voltage: Withstands 3,000V AC
  • Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
  • Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
  • UV Resistance: All materials are UV Stabilized.
  • Certifications: UL Listed, CSA Certified.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SAB12 . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
