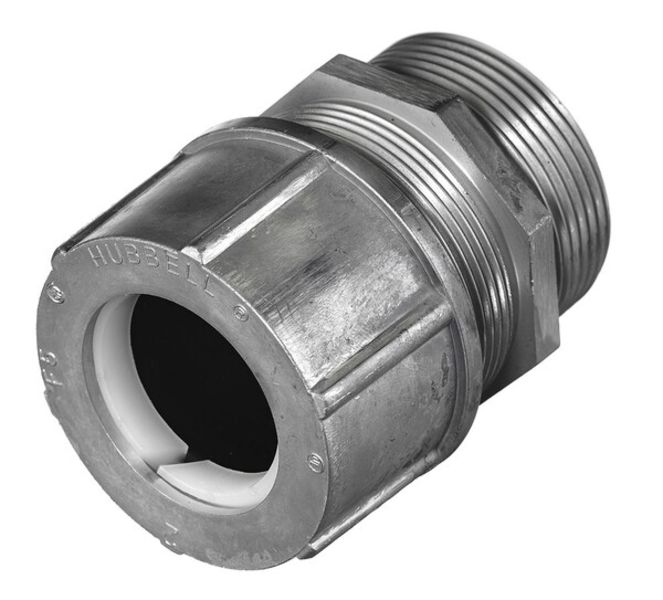

• Hubbell SHC1066 Cord Connector Product Image
  • Hubbell SHC1066 Barcode

SHC1066

Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Cord Connector
  • Specifications Description: Hubbell offers a full line of machined aluminum cord connectors in N.P.T. hub sizes " through 1" and cast aluminum 1" to 3". They provide durable performance and a clean attractive look without adding unwanted weight.
  • UPC Number: 78358520066
  • Weight in LBs: 0.75
  • Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
  • Product Type: Cord Connectors
  • Cord Diameter Range: 1.38"- 1.50" (34.9- 38.1)
  • Form Size: F6
  • HUB Size: 2"
  • Material/Style: Aluminum
  • Cord Connector Body Style: Straight Male
  • Color Code: White
  • Effective Operating Temperature: -30F to +240F (-34C to +115C)
  • Recommended Knockout Hole Size: 2.45"- 2.50" (62.3-63.5)
  • Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
  • Dimension A: 3.00" (76.2) Dia.
  • Dimension B: 2.20" (55.9) Ref.
  • Dimension C: .80" (20.3)
  • Dimension D: 1.92" (48.8) Throat Dia.
  • Dimension E A/C: 3.24" (82.4)
  • Dimension E A/F: 3.00" (76.2)
  • Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SHC1066 . Santa Clara Systems carries 10,217 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
