Out of Stock

UGP15231

Hubbell - Control

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 0.4
Amperage: 15A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Control

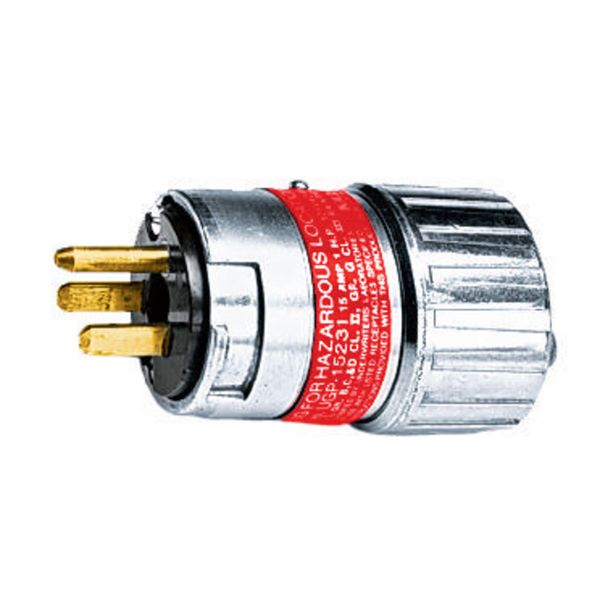

Specifications Description: Straight Blade Devices, Explosion Proof, Male Plug, 15A 125V, 5-15P, Single Pack
UPC Number: 7.83585E+11
Weight in LBs: 0.4
Amperage: 15A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: Steel
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: Steel

Body Style: Straight
Horsepower: 0.5
Housing Material: Aluminum
Rating: 15A, 125V
Type: 2 Pole, 3 Wire, Grounding
Explosion Proof Type: Plug
Hospital Grade ?: No
Plug/Connector Grade: Acceptor
Enhancement: Explosion Proof
NEMA No.: 5-15P
Cord Dia.: .540"-.635" (13.7-16.1)
Certification: UL CSA
Cord Clamp Material: Metallic
Contact Blades Material: Brass
Ground Contact Blade Material: Brass
Dielectric Voltage: Withstands 2,000V minimum.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UGP15231 . Santa Clara Systems carries 10,258 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
