UGRO20231

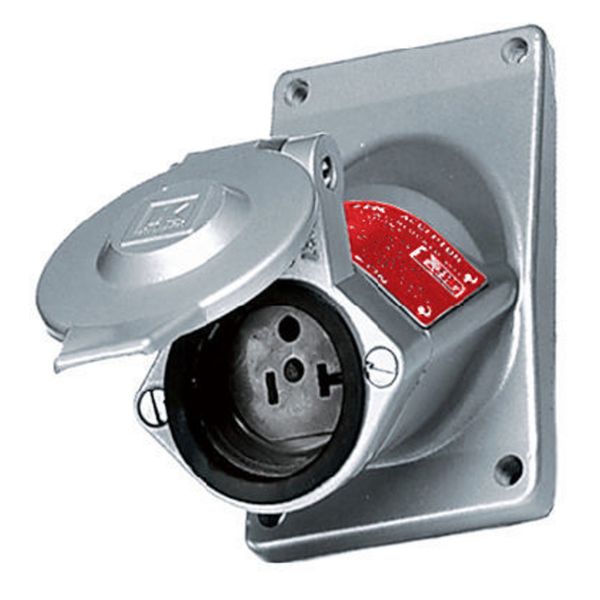

Hubbell - Explosion-Proof Receptacle

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 1.75
Amperage: 20A
Flammability: UL 94 V2 or better.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).

Current response time:

18 Minutes 51 Seconds

Description: Explosion-Proof Receptacle
Specifications Description: Straight Blade Devices, Explosion Proof, Receptacle with Adapter, 20A 125V, 5-20R, Single Pack
UPC Number: 7.83585E+11
Weight in LBs: 1.75
Amperage: 20A
Flammability: UL 94 V2 or better.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Brass /Ni plated for neutral
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
Horsepower: 1

Rating: 20A, 125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Explosion Proof Type: Receptacle
Receptacle Style: Single
Face Shape: Traditional
Hospital Grade ?: No
Receptacle Grade: Explosion Proof
Enhancement: Class 1, Groups C,D
NEMA No.: 5-20R
Certification: UL Listed, File E2186, Listed to UL Standard 498
Top Material: Phenolic
Base Material: Phenolic
Power Contacts Material: .037" (.9) Brass - Ni Plated
Mounting Strap Material: .050" (1.3) Brass
Dielectric Voltage: Withstands 2,000V minimum.
