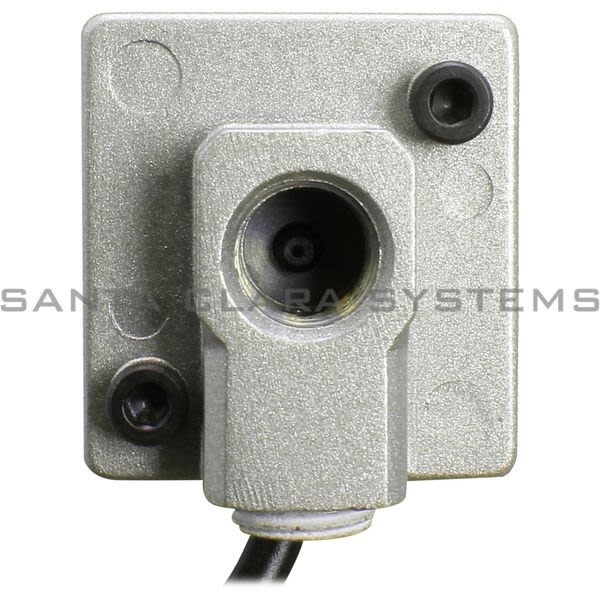

• Keyence AP-21A Digital Pneumatic Pressure Sensor Product Image

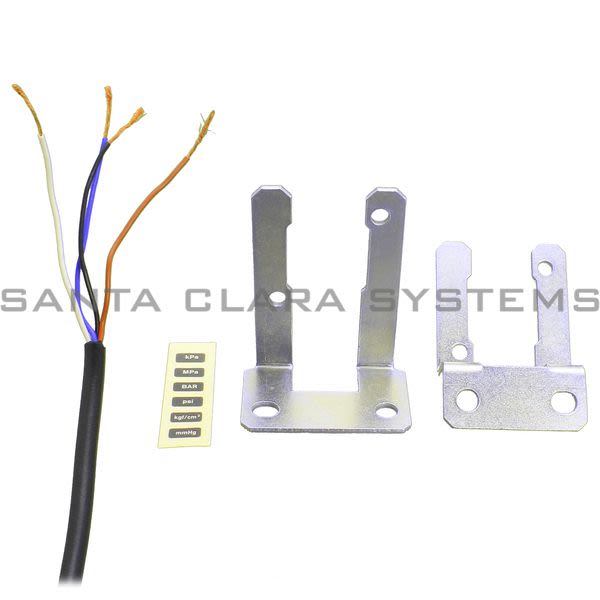

  • Keyence AP-21A Digital Pneumatic Pressure Sensor Product Image

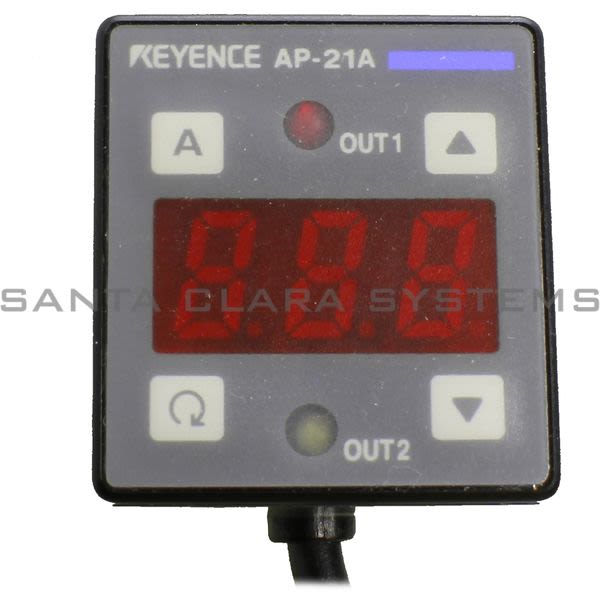

  • Keyence AP-21A Digital Pneumatic Pressure Sensor Product Image

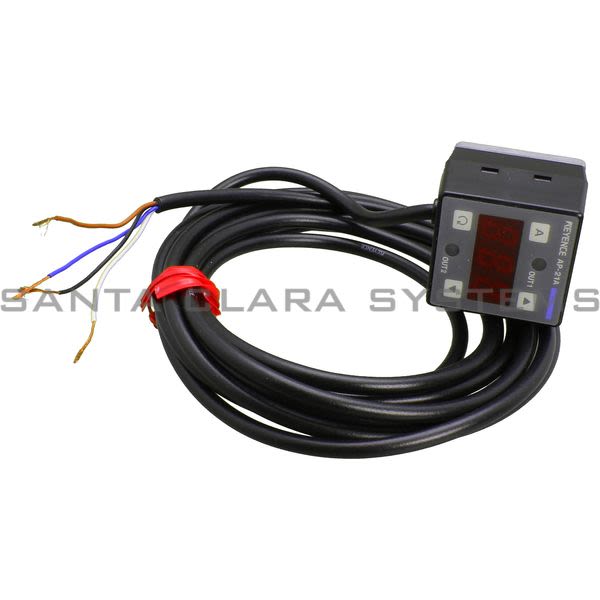

  • Keyence AP-21A Digital Pneumatic Pressure Sensor Product Image
  • Keyence AP-21A Barcode

AP-21A

Product Summary:

  • Type: LED-type digital pressure sensor (positive-pressure [standard] model)
  • Material: Front case: polycarbonate, pressure port: die-cast zinc
  • Model: AP-23A
  • Rated pressure: 0 to 9.99 kgf/cm2 / 0 to 1MPa / 0 to 145psi / 0 to 10.0bar
  • Diffusion plate: Air or non-corrosive gases
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Digital Pneumatic Pressure Sensor
  • Type: LED-type digital pressure sensor (positive-pressure [standard] model)
  • Material: Front case: polycarbonate, pressure port: die-cast zinc
  • Model: AP-23A
  • Rated pressure: 0 to 9.99 kgf/cm2 / 0 to 1MPa / 0 to 145psi / 0 to 10.0bar
  • Diffusion plate: Air or non-corrosive gases
  • Fluid type: Air or non-corrosive gases
  • Type of pressure: Gage pressure
  • Polarizing plate: Gage pressure
  • Input: 45 mA or less
  • Display power: 3-digit 7-segment LED (character height: 8 mm 0.315"), display cycle: 5 times/sec.
  • Display resolution: 0.05 kgf/cm2, 0.01 MPa, 1 PSI, 0.1 bar
  • Repeatability: 1% of F.S. or less
  • Response: 5 ms
  • Temperature characteristics: 3% of F.S. or less of the detected pressure at 25C 77F within the temperature range of 0 to +50C 32 to 122F.
  • Control output: Maximum NPN open-collector output: 100 mA (40 V or less), residual voltage: 1 V or less, 2 outputs
  • Output - Connection points: 1% of F.S. or less
  • Output - Voltage: 5ms
  • Rating - Power voltage: 12 to 24 VDC 10%, ripple (P-P): 10% or less
  • Rating - Current consumption: 45 mA or less
  • Environmental resistance - Operating temperature range: 0 to +50C32 to 122F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
  • Environmental resistance - Shock resistance: 100 m/s2 (approx. 10 G) 3 times in each of the X, Y, and Z directions
  • Pressure resistance: 15 kgf/cm2
  • Weight (including the cable): Main unit: approx. 65 g (excluding the cable; approx. 105 g including the 2 m cable)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-21A . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
