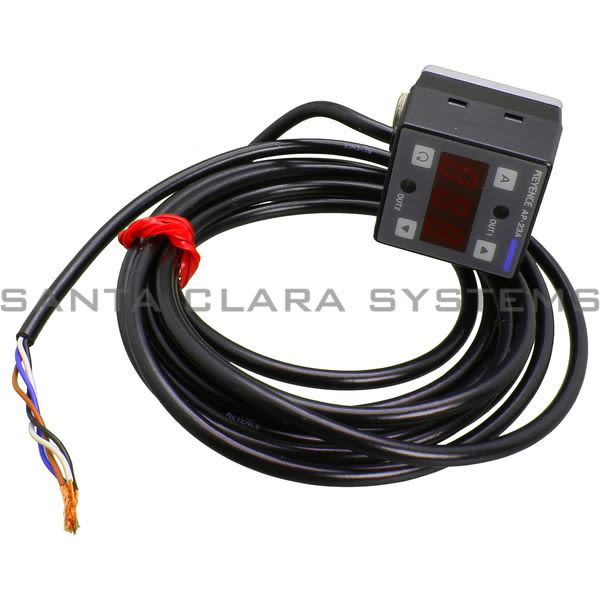

• Keyence AP-23A Pressure Sensor Product Image

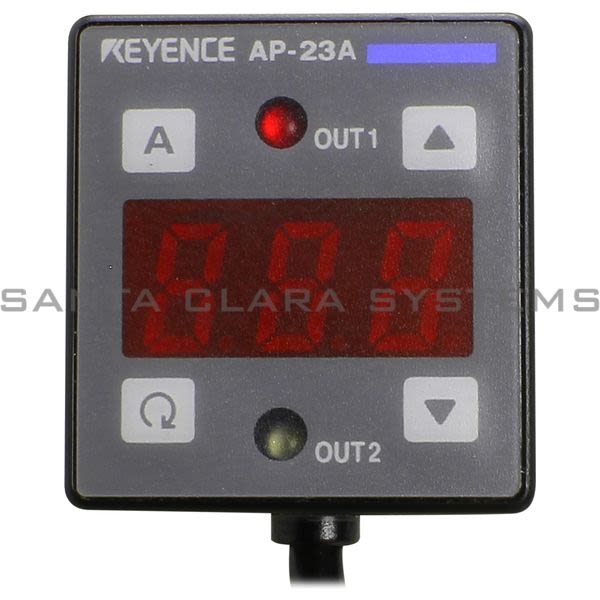

  • Keyence AP-23A Pressure Sensor Product Image

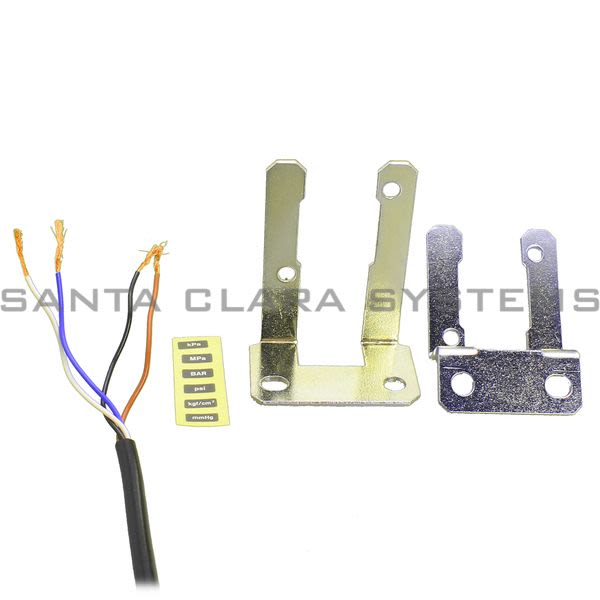

  • Keyence AP-23A Pressure Sensor Product Image

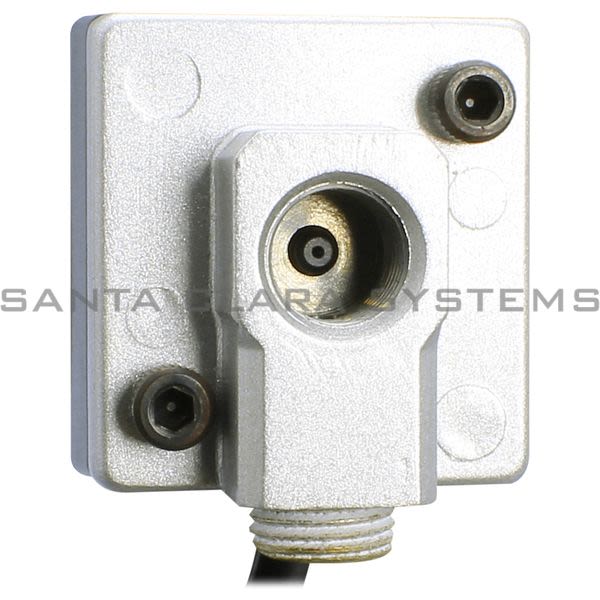

  • Keyence AP-23A Pressure Sensor Product Image
  • Keyence AP-23A Barcode

AP-23A

Product Summary:

  • Diffusion plate / Fluid type: Air or non-corrosive gases
  • Type of pressure / Polarizing plate: Gage pressure
  • Input: 45 mA or less
  • Display resolution: 0.05 kgf/cm, 0.01 MPa, 1 PSI1 0.1 bar
  • Repeatability: +1% of F.S. or less
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Pressure Sensor
  • Output - Voltage: 5ms
  • Rating - Power voltage: 12 to 24 V DC +10%, ripple (P-P): 10% or less
  • Rating - Current consumption: 45 mA or less
  • Enviromental resistance - Operating tempature range: 0 to +50*C 32 to 122*F
  • Enviromental resistance - Operating ambient humidity: 35 to %85 RH, no condensation
  • Enviromental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y and Z directions, 2 hours respectively
  • Enviromental resistance - Shock resistance: 100 m/s (approx 10 g) 3 times in each of the X, Y, and Z directions
  • Pressure resistance: 15 kgf/cm
  • Material: Front case: polycarbonate, pressure port: die-cast zinc
  • Weight (including the cable): Main unit: approx. 65 g (excluding the cable; approx. 105 g including the 2 m cable)
  • Type: LED type digital pressure sensor (positive-pressure [standard] model)
  • Rated pressure: 0 to 9.99 kgf/cm / 0 to 1MPa / 0 to 145 psi / 0 to 10.0 bar
  • Diffusion plate / Fluid type: Air or non-corrosive gases
  • Type of pressure / Polarizing plate: Gage pressure
  • Input: 45 mA or less
  • Display power: 3-digit 7-segment LED (character height: 8 mm 0.315"), display cycle: 5 times/sec.
  • Display resolution: 0.05 kgf/cm, 0.01 MPa, 1 PSI1 0.1 bar
  • Repeatability: +1% of F.S. or less
  • Response: 5 ms
  • Temperature characteristics: +3% of F.S. or less of the detected pressure at 25*C 77*F within the temperature range of 0 to +50*C 32 to 122*F
  • Control output: Maximum NPN open-collector output: 100 mA (40 V or less), residual voltage: 1 V or less, 2 outputs
  • Output - Connection points: +1% of F.S. or less
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-23A . Santa Clara Systems carries 1,382 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
