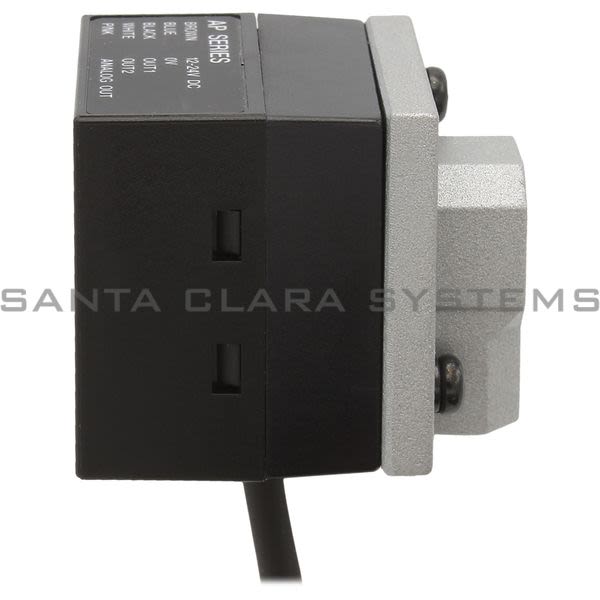

• Keyence AP-34KP Pressure Sensor Product Image

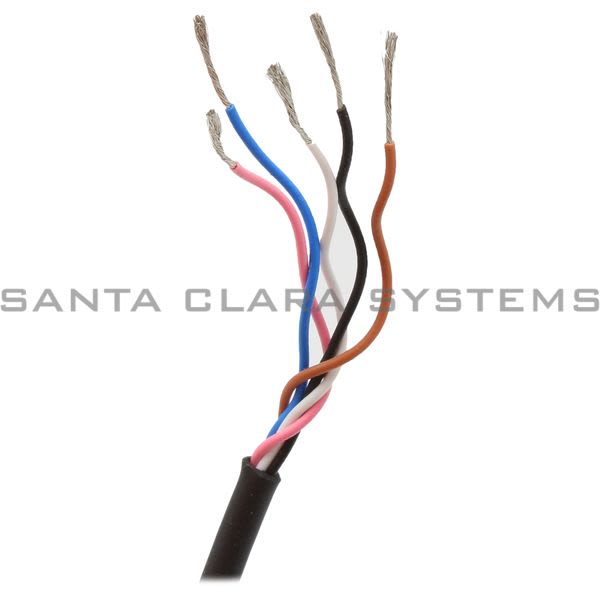

  • Keyence AP-34KP Pressure Sensor Product Image

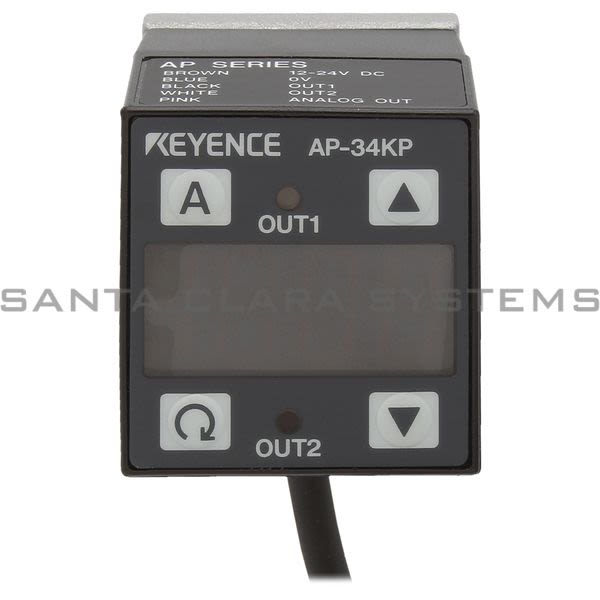

  • Keyence AP-34KP Pressure Sensor Product Image

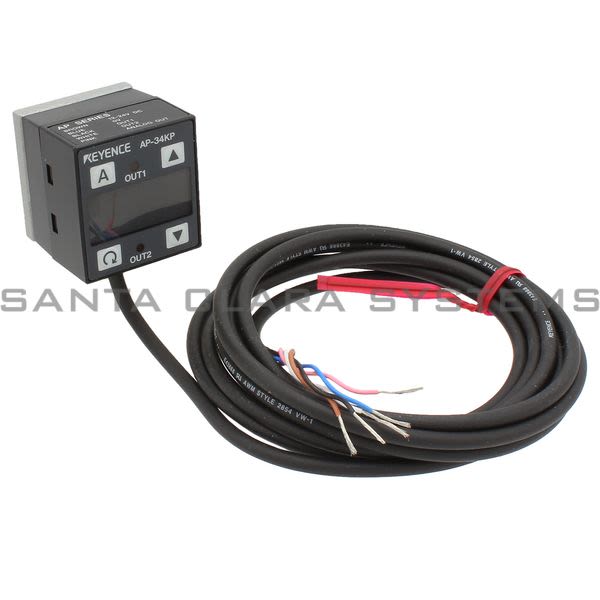

  • Keyence AP-34KP Pressure Sensor Product Image
  • Keyence AP-34KP Pressure Sensor Product Image
  • Keyence AP-34KP Barcode

AP-34KP

Product Summary:

  • Weight: Approx.120 g
  • Output: PNP output
  • Accessories: Mounting bracket A, mounting bracket B, hexagon socket head cap plug
  • Rated pressure: 101.3 to -101.3 kPa
  • Type of pressure: Gauge pressure, air or non-corrosive gases
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Pressure Sensor
  • Weight: Approx.120 g
  • Type: Compound pressure , Analog [cannot be used within Japan according to the Measurement Act]
  • Output: PNP output
  • Material: Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone,Pressure port: Die-cast zinc, Cable: Oil-proof cabtyre cable
  • Accessories: Mounting bracket A, mounting bracket B, hexagon socket head cap plug
  • Rated pressure: 101.3 to -101.3 kPa
  • Type of pressure: Gauge pressure, air or non-corrosive gases
  • Fluid type: Air or non-corrosive gases
  • Display resolution: 0.1 inchHg, 0.2 kPa, 2 mmHg, 0.002 bar
  • Display range: -15% to +110% of F.S.
  • Response time (chatterprevention function): 2.5/5/100/500 ms (selectable)
  • Display power: 3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43")
  • I/O - Control output: PNP open-collector 100 mA max. (40 V max.), Residual voltage: 1 V max. 2-output (N.O./N.C.selectable)
  • I/O - Analog output: 1 to 5 V (Load impedance: 47 k? min.)
  • I/O - Display: 1% max. (of F.S.) of detecting pressure at 25C 77F (0 to 50C 32 to 122F)
  • Control output hysteresis: Variable (when hysteresis mode is selected), 0.5% of F.S. in standard mode
  • Rating - Power voltage: 12 to 24 VDC 10%
  • Rating - Current consumption.: 50 mA (at 24 V), 90 mA (at 12 V)
  • Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F, No condensation / 35 to 85% RH (No condensation)
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
  • Pressure resistance: 72.5 PSI
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-34KP . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
