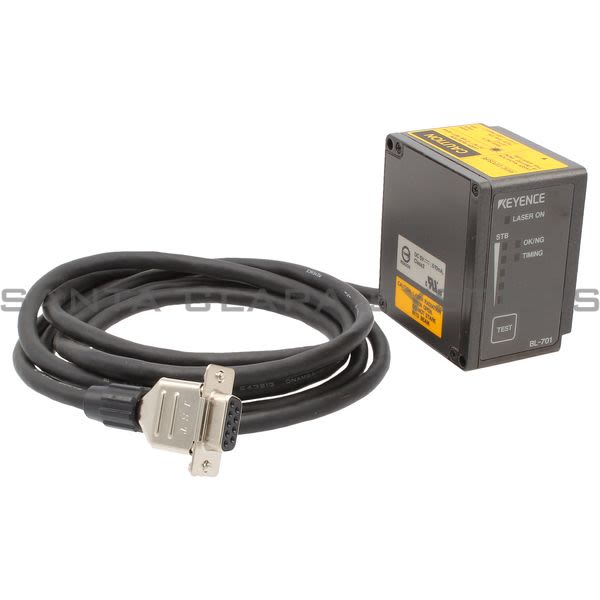

• Keyence BL-701 Barcode Scanner Sensor Head Product Image

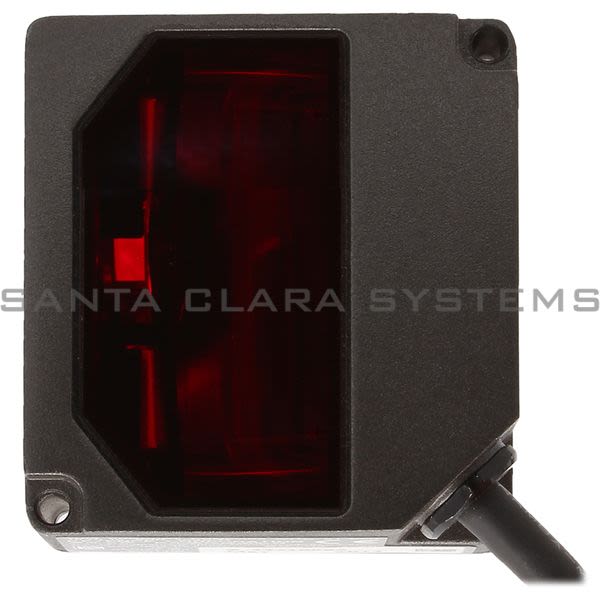

  • Keyence BL-701 Barcode Scanner Sensor Head Product Image

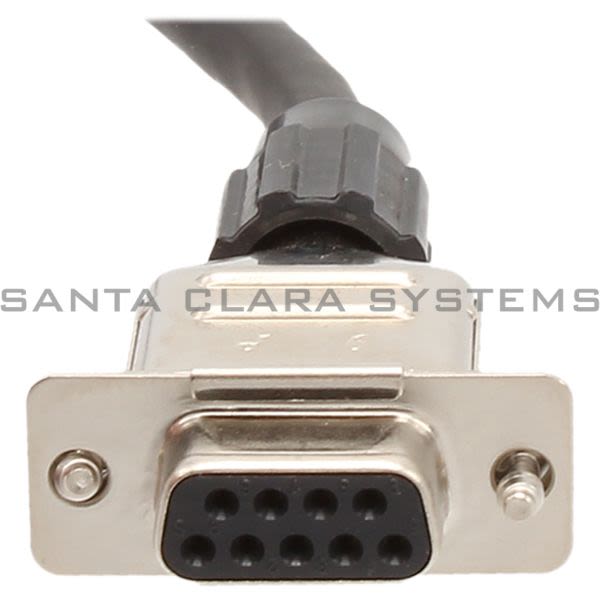

  • Keyence BL-701 Barcode Scanner Sensor Head Product Image

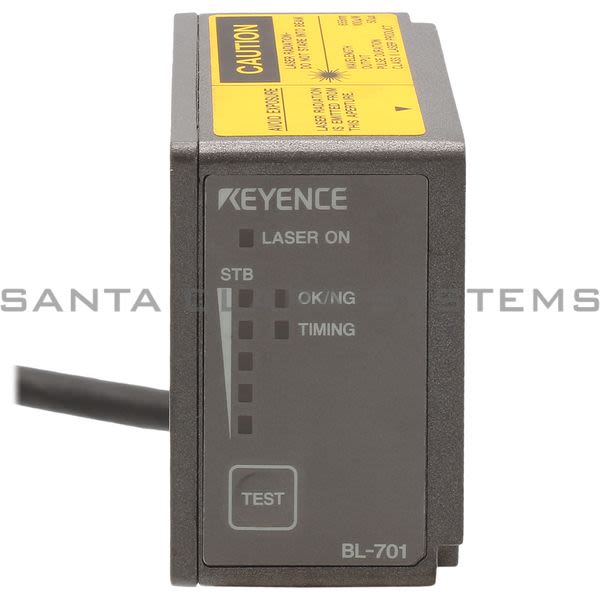

  • Keyence BL-701 Barcode Scanner Sensor Head Product Image
  • Keyence BL-701 Barcode

BL-701

Product Summary:

  • Type: High-resolution type
  • Type - Scanning method: Raster
  • Laser - Control output: 100 ?W
  • Reading - Readable bar width: 0.15 mm to 1.0 mm 0.006" to 0.04"
  • Reading - Focal point: 230 mm 9.06"
Get a Quote
           or
  • Description: Barcode Scanner Sensor Head
  • I/O specifications - Output terminals - Leakage current (at OFF): 0.1 mA or less
  • I/O specifications - Output terminals - Residual voltage (at ON): 0.5V or less
  • I/O specifications - Serial interface - Communication method: Conforms to EIA RS-232C
  • I/O specifications - Serial interface - Communication speed: 600?1200?2400?4800?9600?19200?31250?38400bps
  • I/O specifications - Serial interface - Synchronization between the transmitter and receiver: Asynchronous
  • I/O specifications - Serial interface - Data bit length: 7 or 8 bits
  • I/O specifications - Serial interface - Stop bit length: 1 bit/2 bits
  • I/O specifications - Serial interface - Parity check: None, odd, even
  • Rating - Power voltage: 5 VDC 5%
  • Rating - Voltage consumption: 510 mA or less
  • Environmental resistance - Enclosure rating: IP65
  • Environmental resistance - Operating ambient luminance: Sunlight: 10,000 lux, incandescent lamp: 6,000 lux
  • Environmental resistance - Operating temperature range: 0 to +40? 32F to 104F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Operating environment: No dust or corrosive gas present
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
  • Weight: Approx. 300 g (including the cable)
  • Footnotes: *1 When start/stop character of CODE128 is CODE-C, up to 64 digits are allowed. *2 Largest reading label width includes the barcode margin (quiet zone). *3 (NPN model) The rating of non-voltage input: 1 V or less ON voltage, 0.6 mA or less OFF current. (PNP model) The rating of voltage input: 10.2 V or more ON voltage (26.4 V max.) 0.6 mA or less OFF current.
  • Type: High-resolution type
  • Type - Scanning method: Raster
  • Laser - Light source: Visible semiconductor laser (wavelength: 655 nm)
  • Laser - Control output: 100 ?W
  • Laser - Pulse duration: 99.5 ?s (IEC 60825-1, JIS C6802), 50 ?s (FDA [CDRH] Part 1040.10)
  • Laser - Laser class: Class 2 (JIS C6802), Class 2 (IEC 60825-1), Class II (FDA [CDRH] Part 1040.10)
  • Reading - Supported codes: CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93
  • Reading - Number of readable digits: 32 digits (64 digits for CODE128 with start character C)*1
  • Reading - Readable bar width: 0.15 mm to 1.0 mm 0.006" to 0.04"
  • Reading - Reading distance: 160 to 370 mm 6.30? to 14.57" (narrow bar width: 0.5 mm 0.02")
  • Reading - Focal point: 230 mm 9.06"
  • Reading - Largest readable label width: 310 mm 12.20" (335 mm 13.19")*2
  • Reading - PCS: 0.6 or more (reflectance of the white part: 75% or more)
  • Reading - Scanning rate: 700 scans/sec.
  • I/O specifications - Input terminals - Number of inputs: 1
  • I/O specifications - Input terminals - Input format: Non-voltage or voltage input*3.
  • I/O specifications - Output terminals - Number of outputs: 2 (OK and NG)
  • I/O specifications - Output terminals - Output: NPN open collector
  • I/O specifications - Output terminals - Rated load: 24 VDC, 30 mA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BL-701 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
