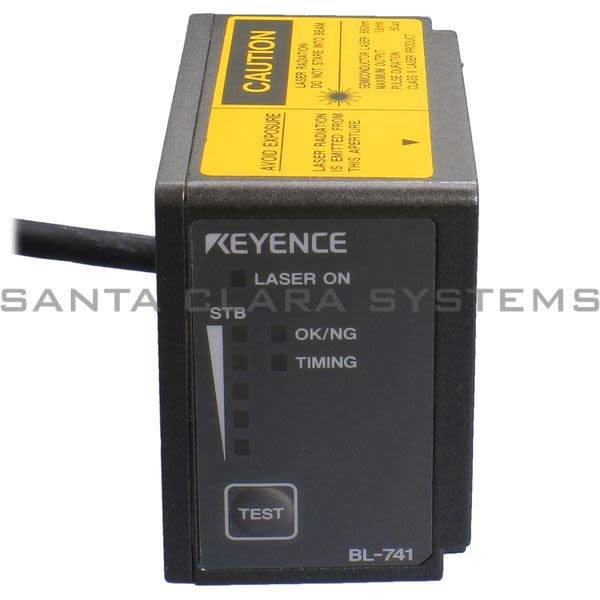

• Keyence BL-741 Laser Bar Code Reader Product Image

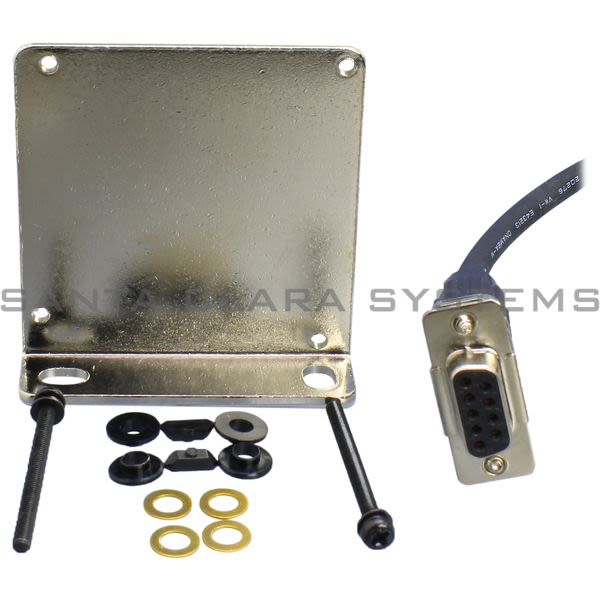

  • Keyence BL-741 Laser Bar Code Reader Product Image

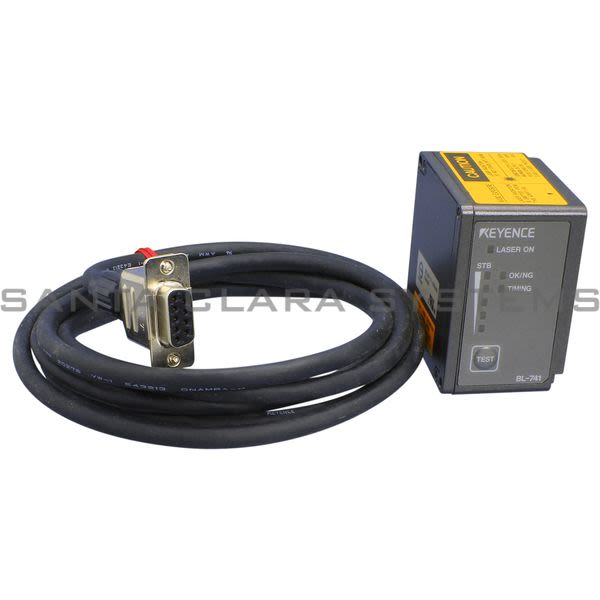

  • Keyence BL-741 Laser Bar Code Reader Product Image

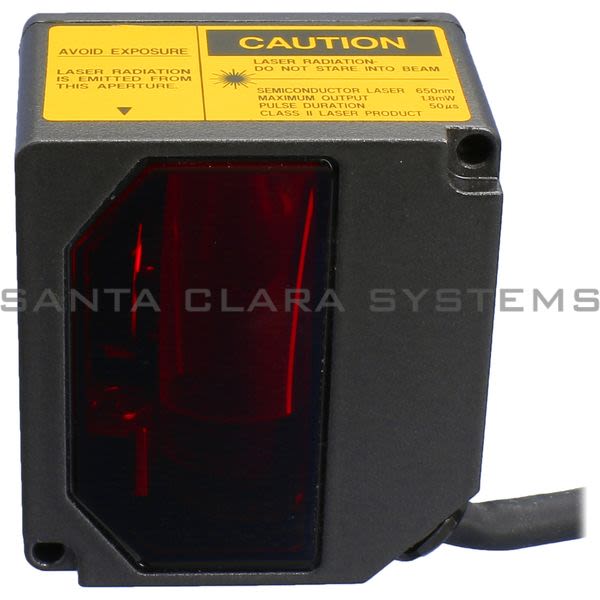

  • Keyence BL-741 Laser Bar Code Reader Product Image

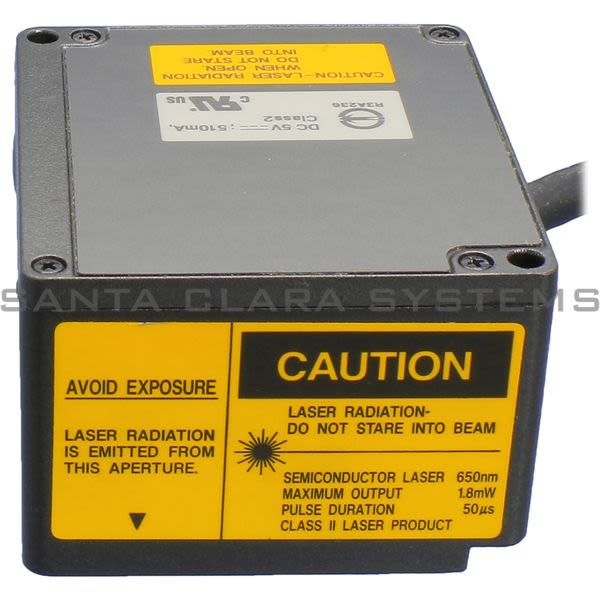

  • Keyence BL-741 Laser Bar Code Reader Product Image
  • Keyence BL-741 Barcode

BL-741

Product Summary:

  • Weight: Approx. 300 g (including the cable)
  • Type: Mid-range
  • Type - Scanning method: Raster
  • Laser - Light source: Visible semiconductor laser (wavelength: 655 nm)
  • Laser - Control output: 100 ?W
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Laser Bar Code Reader
  • Weight: Approx. 300 g (including the cable)
  • Footnotes: *1 When start/stop character of CODE128 is CODE-C, up to 64 digits are allowed. *2 When the barcode type is CODE39. *3 Largest reading label width includes the barcode margin (quiet zone). *4 (NPN model) The rating of non-voltage input: 1 V or less ON voltage, 0.6 mA or less OFF current. (PNP model) The rating of voltage input: 10.2 V or more ON voltage (26.4 V max.) 0.6 mA or less OFF current.
  • Type: Mid-range
  • Type - Scanning method: Raster
  • Laser - Light source: Visible semiconductor laser (wavelength: 655 nm)
  • Laser - Control output: 100 ?W
  • Laser - Pulse duration: 99.5 ?s (IEC 60825-1, JIS C6802), 50 ?s (FDA [CDRH] Part 1040.10)
  • Laser - Laser class: Class 2 (JIS C6802), Class 2 (IEC 60825-1), Class II (FDA [CDRH] Part 1040.10)
  • Reading - Supported codes: CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93
  • Reading - Number of readable digits: 32 digits (64 digits for CODE128 with start character C)*1
  • Reading - Readable bar width: 0.25 to 2.0 mm 0.01" to 0.08"*2
  • Reading - Reading distance: 150 to 750 mm 5.91" to 29.53" (1.0 mm 0.04")
  • Reading - Focal point: 400 mm 15.7"
  • Reading - Largest readable label width: 600 mm 23.62" (680 mm 26.77")*3
  • Reading - PCS: 0.6 or more (reflectance of the white part: 75% or more)
  • Reading - Scanning rate: 700 scans/sec.
  • I/O specifications - Input terminals - Number of inputs: 1
  • I/O specifications - Input terminals - Input format: Non-voltage or voltage input*4.
  • I/O specifications - Output terminals - Number of outputs: 2 (OK and NG)
  • I/O specifications - Output terminals - Output: NPN open collector
  • I/O specifications - Output terminals - Rated load: 24 VDC, 30 mA
  • I/O specifications - Output terminals - Leakage current (at OFF): 0.1 mA or less
  • I/O specifications - Output terminals - Residual voltage (at ON): 0.5V or less
  • I/O specifications - Serial interface - Communication method: Conforms to EIA RS-232C
  • I/O specifications - Serial interface - Communication speed: 600?1200?2400?4800?9600?19200?31250?38400bps
  • I/O specifications - Serial interface - Synchronization between the transmitter and receiver: Asynchronous
  • I/O specifications - Serial interface - Data bit length: 7 or 8 bits
  • I/O specifications - Serial interface - Stop bit length: 1 bit/2 bits
  • I/O specifications - Serial interface - Parity check: None, odd, even
  • Rating - Power voltage: 5 VDC 5%
  • Rating - Voltage consumption: 510 mA or less
  • Environmental resistance - Enclosure rating: IP65
  • Environmental resistance - Operating ambient luminance: Sunlight: 10,000 lux, incandescent lamp: 4,000 lux
  • Environmental resistance - Operating temperature range: 0 to +40? 32F to 104F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Operating environment: No dust or corrosive gas present
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BL-741 . Santa Clara Systems carries 1,913 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
