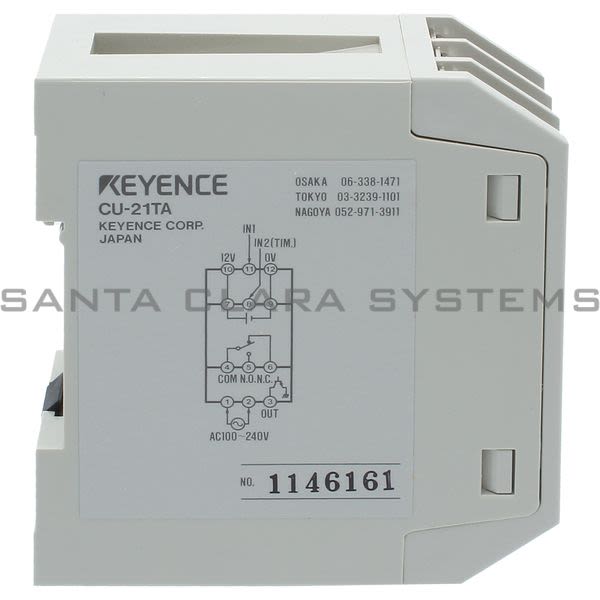

• Keyence CU-21TA Control Unit Product Image

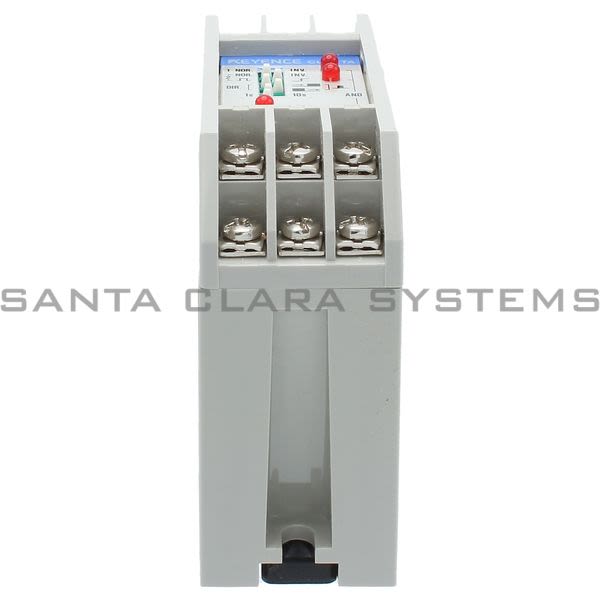

  • Keyence CU-21TA Control Unit Product Image

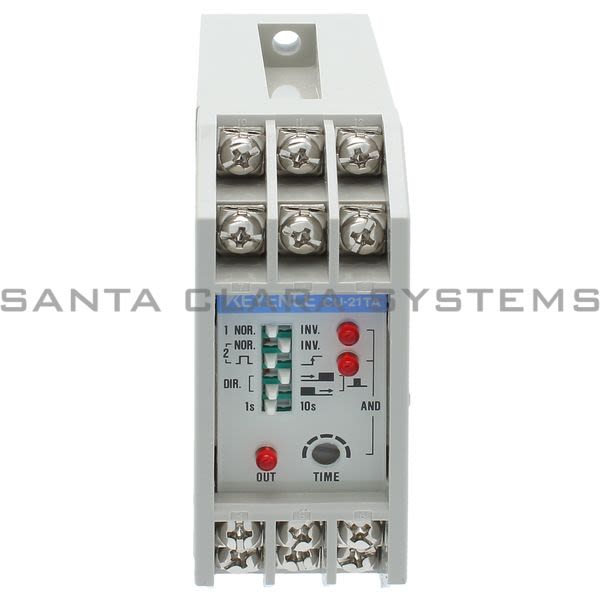

  • Keyence CU-21TA Control Unit Product Image
  • Keyence CU-21TA Control Unit Product Image
  • Keyence CU-21TA Barcode

CU-21TA

Product Summary:

  • Type: Multi-functional
  • Input - No. of inputs: 2
  • Input - Minimum input time: 0.5 ms *1
  • Operation mode: Timer, standard, synchronous
  • Control output - Relay contact: 250 VAC 2A SPDT (1c) (resistive load)
Get a Quote

Current response time:

15 Minutes 54 Seconds
  • Description: Control Unit
  • Control output - Transistor: NPN: 100 mA (40 VDC) max. *2*3
  • DC output: 12 VDC 10%, 200 mA max.
  • Rating - Power voltage: 100 to 240 VAC 10%, 50/60 Hz
  • Rating - Power consumption: 7 VA max.
  • Environmental resistance - Operating temperature range: -10 to +50C 14 to 122F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Accessories: Plastic screwdriver
  • Weight: Approx 120 g
  • Footnotes: *1 Required off time: 1.5 ms minimum. *2 With overcurrent protective circuit. *3 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter.
  • Type: Multi-functional
  • External calibration input signal - Connection sensor: NPN open-collector output type or type with output with contacts (signal input and synchronization input)
  • Input - No. of inputs: 2
  • Input - Minimum input time: 0.5 ms *1
  • Input - Input system: Transistor (via NPN output device), contact (via limit switch/microswitch, etc.)
  • Control output: Relay output: 1c, 250 VAC, 2 A (resistive load) maximum NPN open-collector output: 100 mA (40 V or less)
  • Timer: ON-delay, OFF-delay, One-shot, timer OFF (selectable), 0 .05 to 1 s/0.5 to 10 s (selectable)
  • Functions: Input signal inversion, edge sync. / level sync. selectable, AND logic
  • Operation mode: Timer, standard, synchronous
  • Control output - Relay contact: 250 VAC 2A SPDT (1c) (resistive load)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CU-21TA . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
