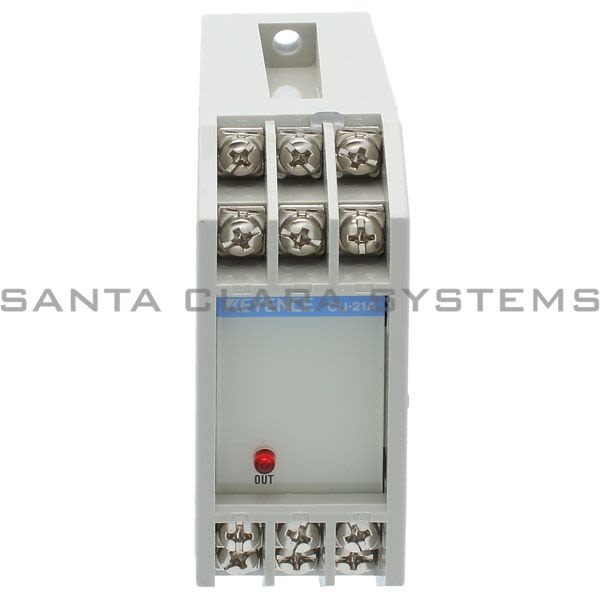

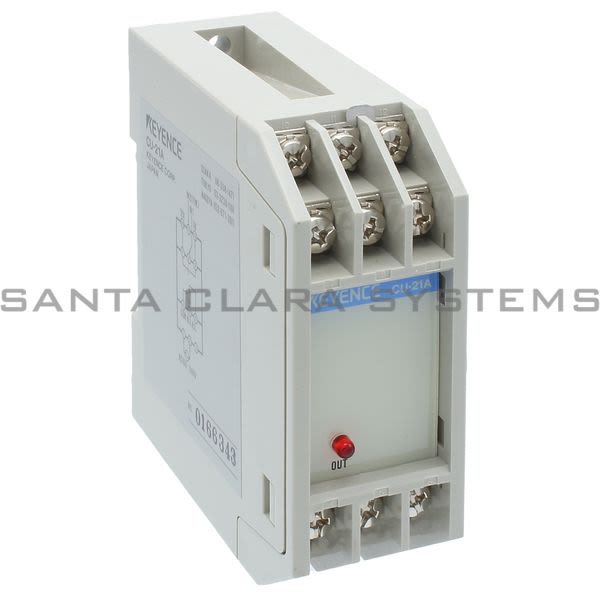

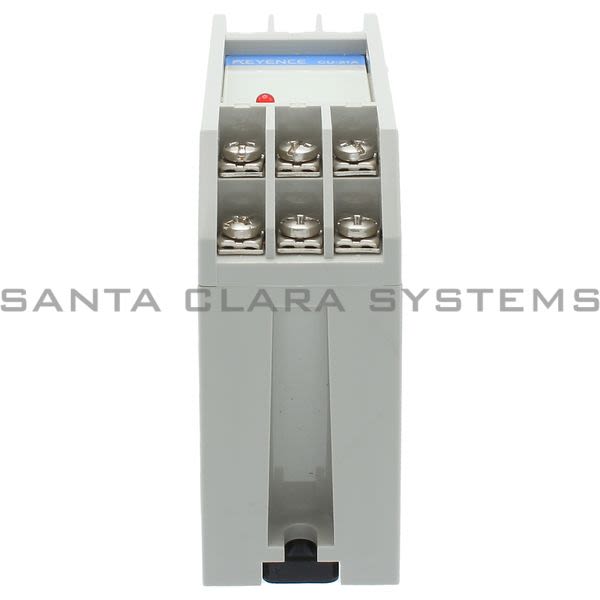

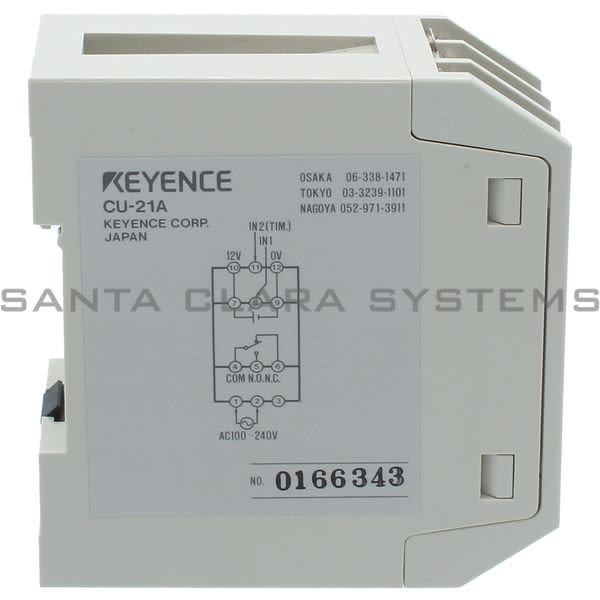

• Keyence CU-21A Sensor Product Image
  • Keyence CU-21A Sensor Product Image
  • Keyence CU-21A Sensor Product Image
  • Keyence CU-21A Sensor Product Image
  • Keyence CU-21A Barcode

CU-21A

Product Summary:

  • Type: Standard
  • Input - No. of inputs: 2
  • Input - Minimum input time: 5 ms *1
  • Timer: ?
  • Functions: AND logic
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Sensor
  • Control output - Transistor: ?*2
  • DC output: 12 VDC 10%, 200 mA max.
  • Rating - Power voltage: 100 to 240 VAC 10%, 50/60 Hz
  • Rating - Power consumption: 7 VA max.
  • Environmental resistance - Operating temperature range: -10 to +50C 14 to 122F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Weight: Approx 105 g
  • Footnotes: *1 Required off time: 15 ms minimum. *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter.
  • Type: Standard
  • External calibration input signal - Connection sensor: NPN open-collector output type or type with output with contacts (signal input and synchronization input)
  • Input - No. of inputs: 2
  • Input - Minimum input time: 5 ms *1
  • Input - Input system: Transistor (via NPN output device), contact (via limit switch/microswitch, etc.)
  • Control output: Relay output: 1c, 250 VAC, 2 A (resistive load)
  • Timer: ?
  • Functions: AND logic
  • Operation mode: Standard, synchronous
  • Control output - Relay contact: 250 VAC 2A SPDT (1c) (resistive load)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CU-21A . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
