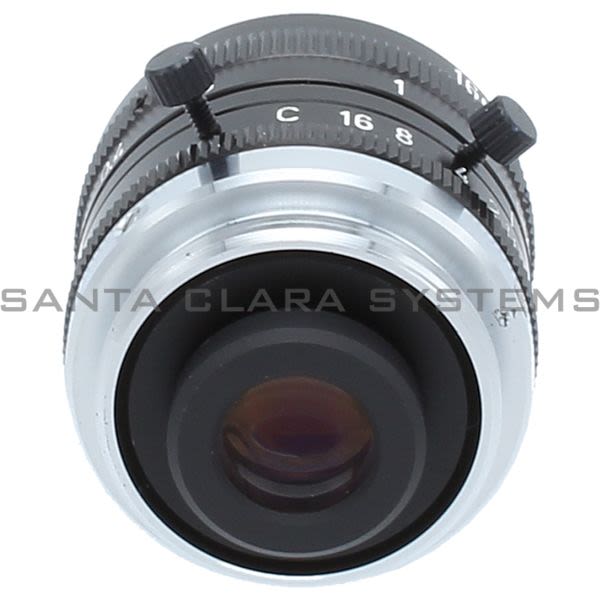

• Keyence CV-L16 Machine Vision Lens Product Image

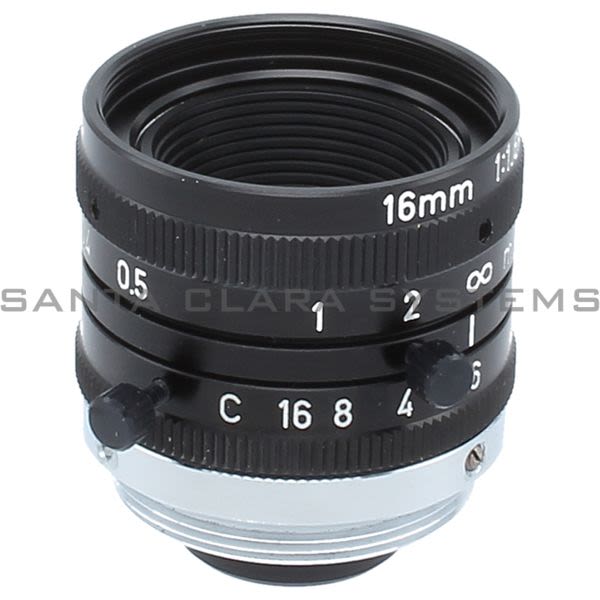

  • Keyence CV-L16 Machine Vision Lens Product Image

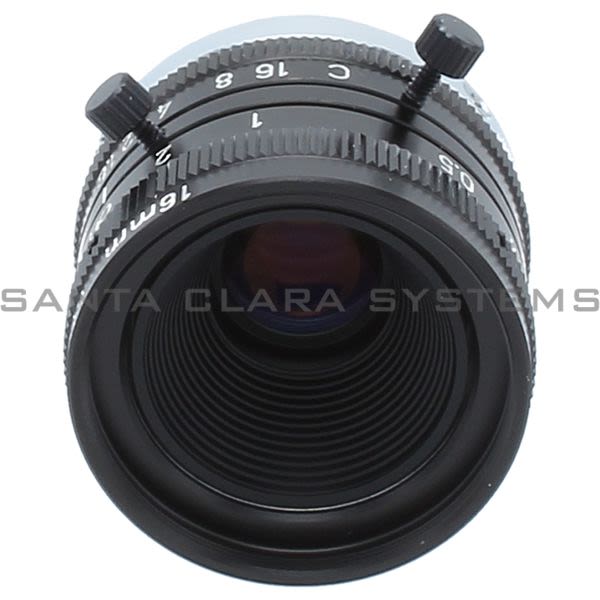

  • Keyence CV-L16 Machine Vision Lens Product Image

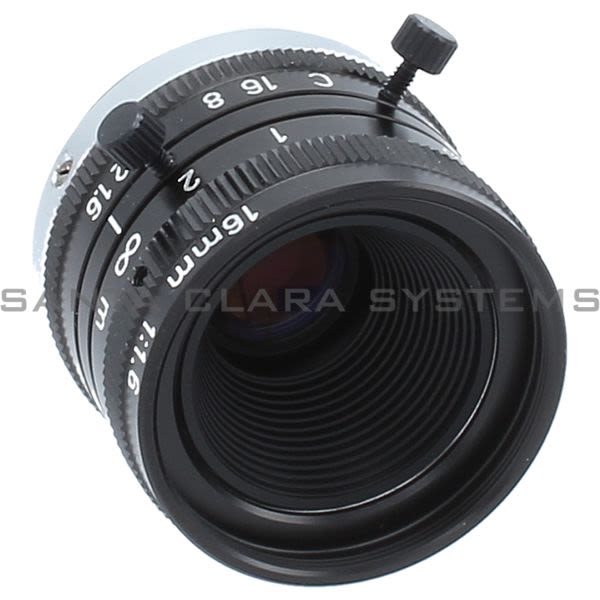

  • Keyence CV-L16 Machine Vision Lens Product Image
  • Keyence CV-L16 Barcode

CV-L16

Product Summary:

  • Focal point: 16 mm 0.63"
  • F-stop range (aperture): F1.6 to CLOSE
  • Minimum WD: 0.4 m 1.3'
  • Mount: C-mount
  • Filter size: 27.0 mm 1.06" P0.5
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Machine Vision Lens
  • Resolving power: 100 cycles/mm at center, 40 cycles/mm on periphery
  • Ambient temperature/humidity range: 0 to +50C 32 to 122F, 35 to 80% RH (No condensation)
  • Polarizing filter: OP-54029
  • Protective filter: CA-LF27
  • Weight: Approx. 44 g
  • Footnotes: *1 Indicates specification for compatible image sensor size. Value in parenthesis applies to 1/3" image sensor size.
  • Focal point: 16 mm 0.63"
  • F-stop range (aperture): F1.6 to CLOSE
  • Minimum WD: 0.4 m 1.3'
  • Mount: C-mount
  • Filter size: 27.0 mm 1.06" P0.5
  • Compatible image sensor size: 2/3"
  • TV distortion: -0.8% (-0.2%)*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CV-L16 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
