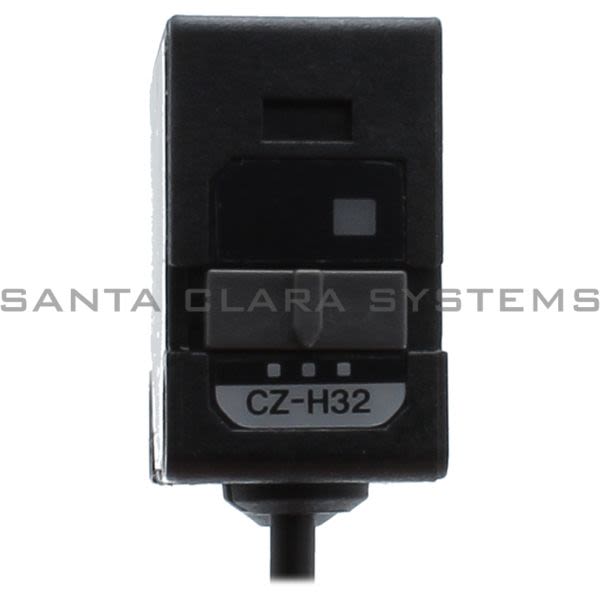

• Keyence CZ-H32 Photoelectric Sensor Product Image

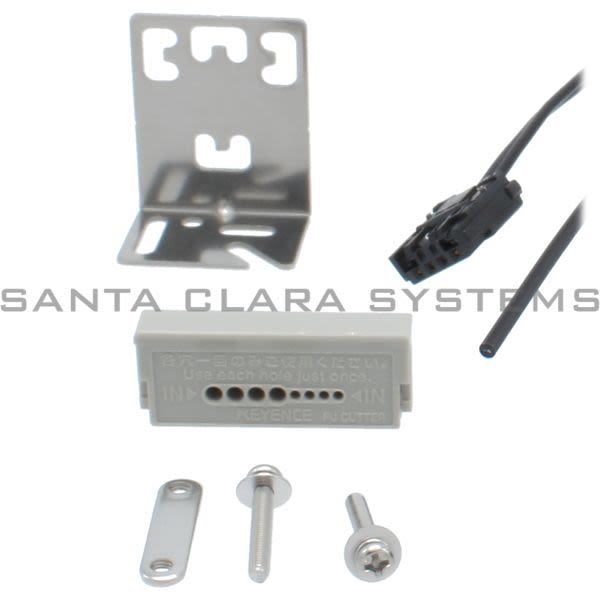

  • Keyence CZ-H32 Photoelectric Sensor Product Image

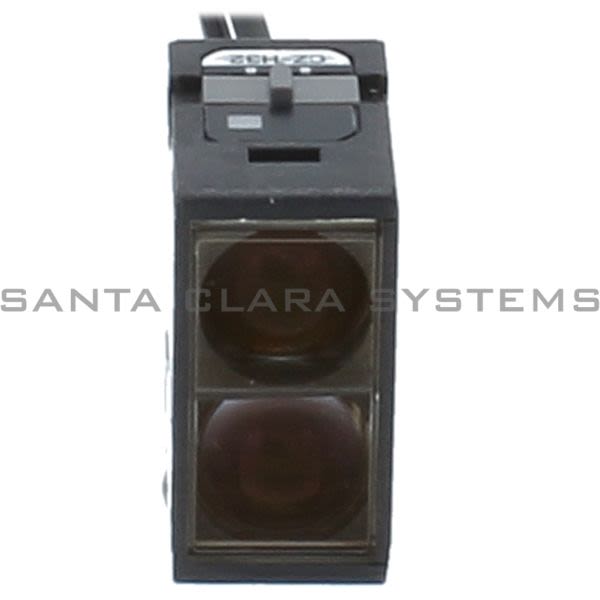

  • Keyence CZ-H32 Photoelectric Sensor Product Image

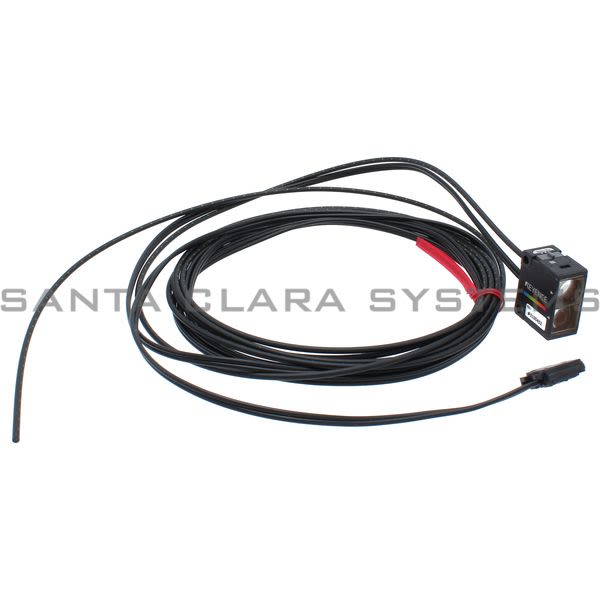

  • Keyence CZ-H32 Photoelectric Sensor Product Image
  • Keyence CZ-H32 Photoelectric Sensor Product Image
  • Keyence CZ-H32 Barcode

CZ-H32

Product Summary:

  • Type: Adjustable spot
  • Minimum bend radius of fi ber: 25 mm 0.98"
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing
  • Environmental resistance - Enclosure rating: IP40
  • Weight: Approx. 40 g
Get a Quote
           or
  • Description: Photoelectric Sensor
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06"double amplitude in X, Y, and Z directions, 2 hours respectively
  • Environmental resistance - Enclosure rating: IP40
  • Material: Housing?Fiberglass reinforced plastic , Lens cover?Polyarylate
  • Weight: Approx. 40 g
  • Footnotes: *1 Reference distance: 65 mm 2.56? for Small, 60 mm 2.36? for Medium, and 50 mm 1.97? for Large
  • Type: Adjustable spot
  • Detecting area: 50 to 95 mm 1.97" to 3.74" (Reco mmended: 70 mm 2.76")
  • Smallest spot diameter: Small: 3 mm 0.12"dia. Medium: 4.5 mm 0.18"dia. Large: 5.5 mm 0.22"dia. at respective reference distance*1
  • Light source: Red LED (665 nm)/Green LED (520 nm)/Blue LED (465 nm)
  • Minimum bend radius of fi ber: 25 mm 0.98"
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CZ-H32 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
