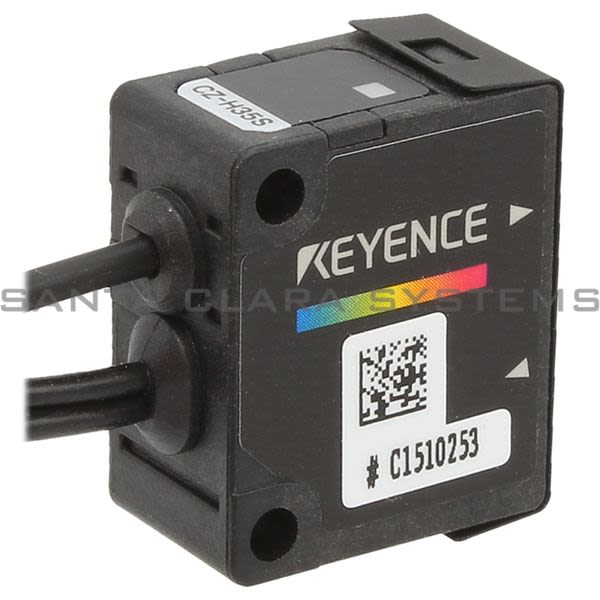

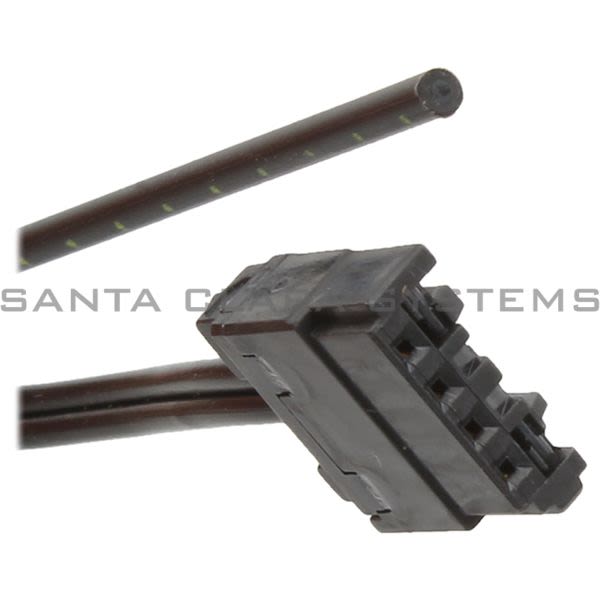

• Keyence CZ-H35S Fiber Optic Sensor Product Image
  • Keyence CZ-H35S Fiber Optic Sensor Product Image
  • Keyence CZ-H35S Fiber Optic Sensor Product Image
  • Keyence CZ-H35S Fiber Optic Sensor Product Image
  • Keyence CZ-H35S Barcode

CZ-H35S

Product Summary:

  • Weight: Approx. 40 g
  • Type: Luster cancel
  • Light source: Red LED (665 nm)/Green LED (520 nm)/Blue LED (465 nm)
  • Detecting area: 28 to 52 mm 1.10" to 2.05" (Reco mmended: 40 mm 1.57")
  • Smallest spot diameter: 4.5 mm 0.18"dia. at reference distance of 40 mm 1.57"
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Fiber Optic Sensor
  • Weight: Approx. 40 g
  • Type: Luster cancel
  • Light source: Red LED (665 nm)/Green LED (520 nm)/Blue LED (465 nm)
  • Material: Housing?Triacetate, Polyarylate (Metal section: TYPE 304 stainless steel) , Lens cover?Fiberglass reinforced plastic
  • Detecting area: 28 to 52 mm 1.10" to 2.05" (Reco mmended: 40 mm 1.57")
  • Smallest spot diameter: 4.5 mm 0.18"dia. at reference distance of 40 mm 1.57"
  • Minimum bend radius of fi ber: 25 mm 0.98"
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06"double amplitude in X, Y, and Z directions, 2 hours respectively
  • Environmental resistance - Enclosure rating: IP40
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CZ-H35S . Santa Clara Systems carries 1,913 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
