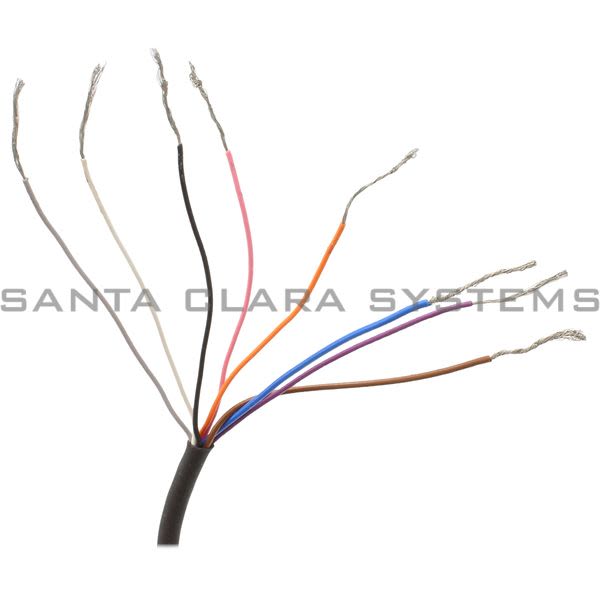

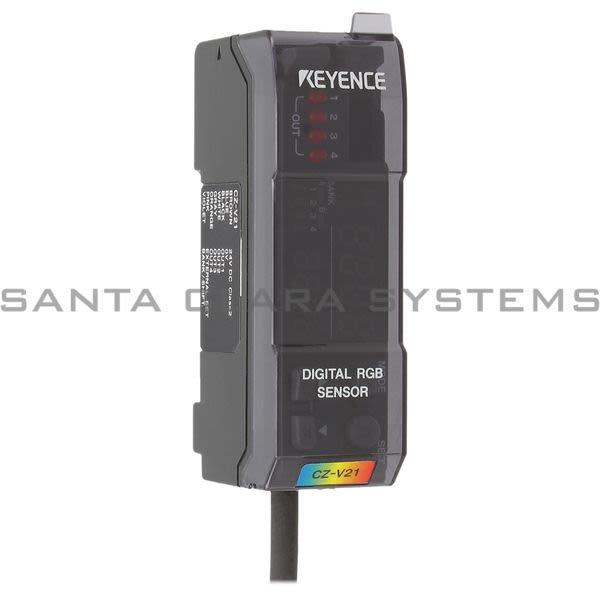

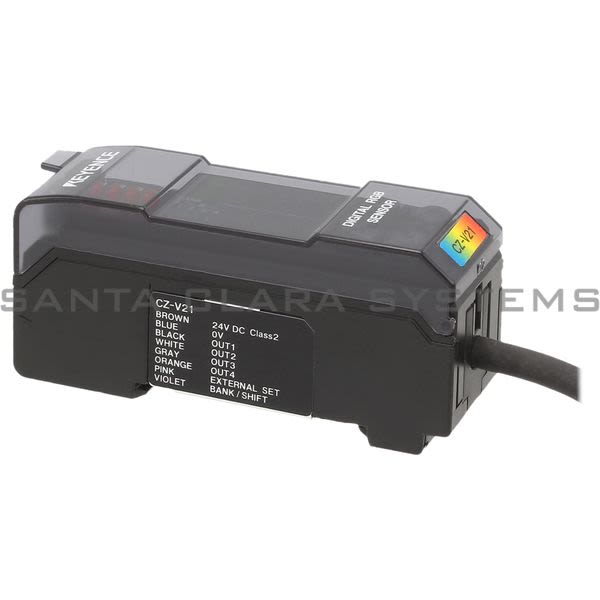

CZ-V21

Keyence - Control Amplifier

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control Amplifier
Weight: Approx. 110 g
Footnotes: *1 20 mA max. when several units are connected. *2 The FS-V20 Series expansion unit cannot be connected to the CZ-V20 Series main unit. When using a combination of expansion units, connect the CZ-V20 Series expansion unit to the FS-V20 Series main unit. Also, if using multiple expansion units, make sure to connect the CZ-V20 Series to right side of the FS-V20 Series. *3 When several units are connected, the acceptable ambient temperature varies depending on the conditions given below. To connect several units, be sure to mount them to a DIN rail and to limit the output current to a maximum of 20 mA. When 1 or 2 units are connected: -10 to +50C 14 to 122F When 3 units are connected: -10 to +45C 14 to 113F
Response time: 8 ms (SUPER)/4 ms (TURBO)/1 ms (FINE)/200 ?s (HIGH SPEED)
Output: NPN output
Material: Housing, cover: Polycarbonate
Main unit/expansion unit: Main unit
Control output: NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*1
Protection circuit: Reverse-polarity protection, overcurrent protection, surge absorber

External calibration input: No-voltage input, input time: 20 ms or more
External shift input: No-voltage input, input time: 20 ms or more
Timer function: Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
Unit expansion: Up to 3 units (4 units total including the main unit)*2
Rating - Power voltage: 24 VDC, Ripple (P-P): 10% max.
Rating - Current consumption.: Normal mode?1.5 W (62.5 mA max.), Eco-mode?1 W (42.0 mA max.)
Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing*3
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm0.059", 2 hours in each of X, Y, and Z axis directions
