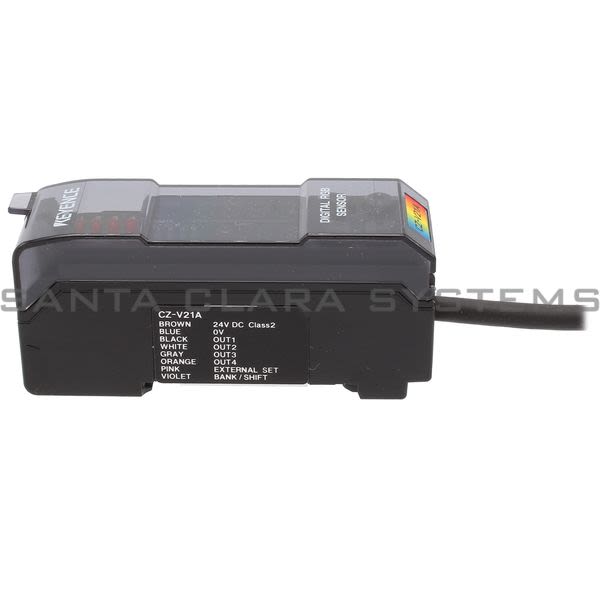

• Keyence CZ-V21A Fiber Optic Sensor Product Image

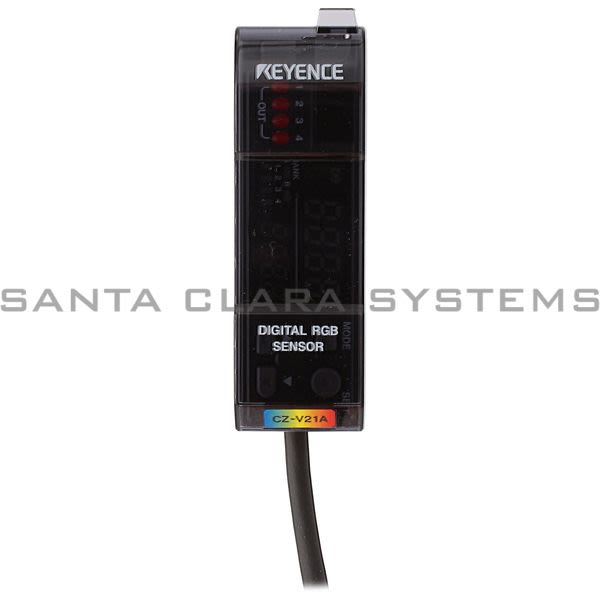

  • Keyence CZ-V21A Fiber Optic Sensor Product Image

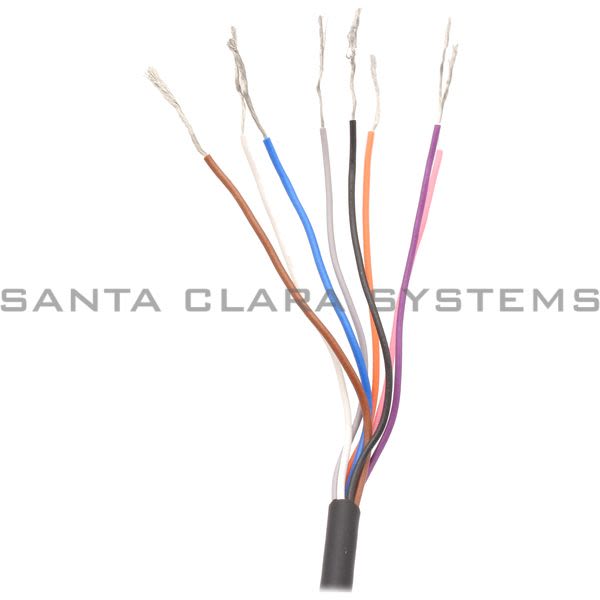

  • Keyence CZ-V21A Fiber Optic Sensor Product Image
  • Keyence CZ-V21A Fiber Optic Sensor Product Image
  • Keyence CZ-V21A Barcode

CZ-V21A

Product Summary:

  • Weight: Approx. 110 g
  • Response time: 200 ?s (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
  • Output: NPN output
  • Material: Housing, cover: Polycarbonate
  • Accessories: Mounting Fittings
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Fiber Optic Sensor
  • Weight: Approx. 110 g
  • Footnotes: *1 The expansion unit of the FS-V20 Series cannot be connected to the main unit of the CZ-V20 Series. To connect the FS and CZ Series units, connect the expansion unit of the CZ-V20 Series to the main unit of the FS-V20 Series. To connect two or more expansion units, connect the CZ-V20 Series units on the right of the FS-V20 Series units. *2 20 mA max. when several units are connected. *3 When several units are connected, the acceptable ambient temperature varies depending on the conditions given below. To connect several units, be sure to mount them to a DIN rail and to limit the output current to a maximum of 20 mA. When 1 or 2 units are connected: -10 to +50C 14 to 122F When 3 units are connected: -10 to +45C 14 to 113F
  • Response time: 200 ?s (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
  • Output: NPN output
  • Material: Housing, cover: Polycarbonate
  • Accessories: Mounting Fittings
  • Main unit/expansion unit: Main unit
  • Control output: NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2
  • Protection circuit: Reverse-polarity protection, overcurrent protection, surge absorber
  • External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode): Input time: 20 ms min.
  • Timer function: Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
  • Unit expansion: Up to 3 units (4 units total including the main unit)
  • Number of interference prevention units: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
  • Rating - Power voltage: 24 VDC, Ripple (P-P): 10% max.
  • Rating - Current consumption.: Normal mode?1.5 W (62.5 mA max.), Eco-mode?1 W (42.0 mA max.)
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing*3
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double-amplitude in X, Y, and Z directions, 2 hours respectively
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CZ-V21A . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
